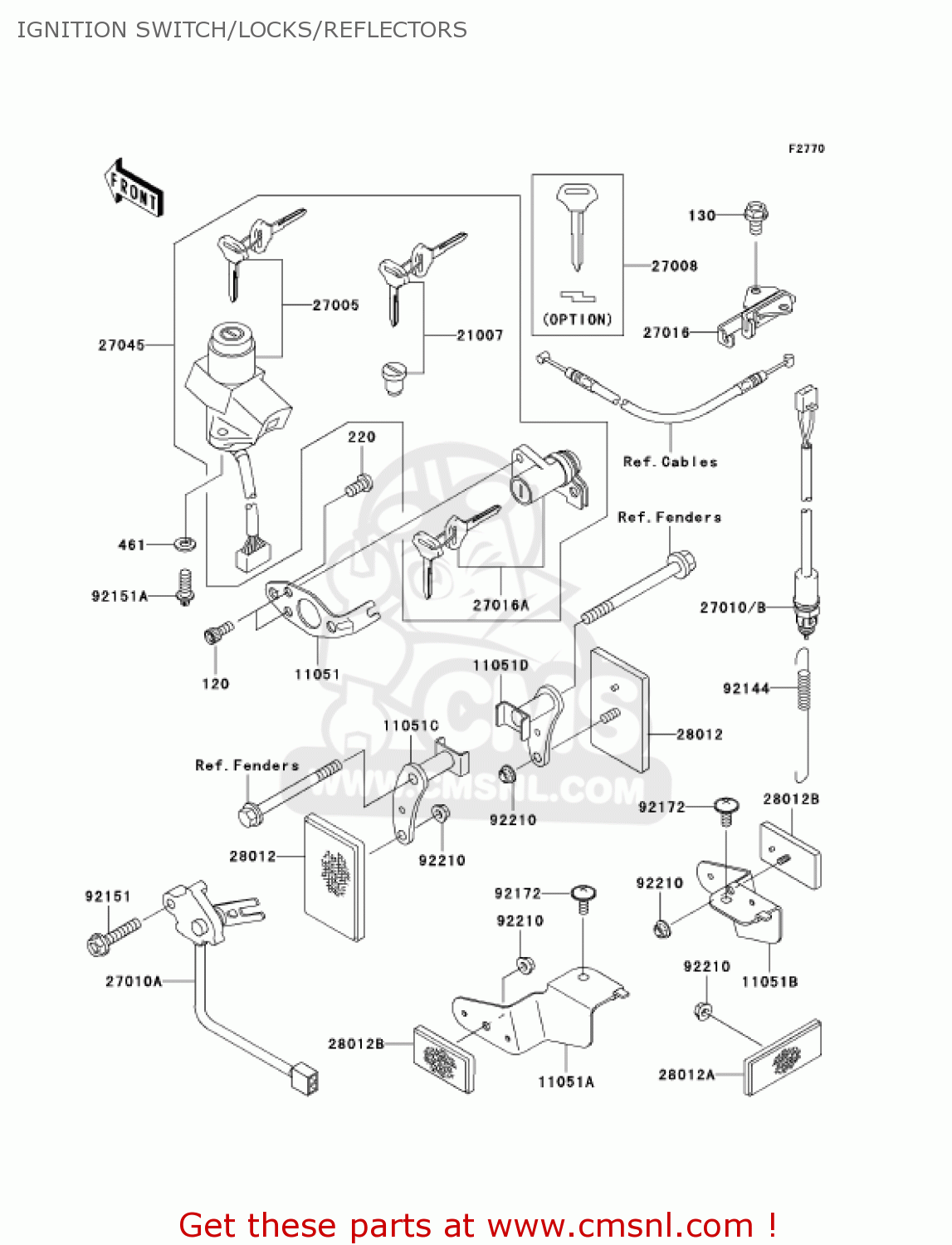

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

220

220F0610
ref: 220

SCREW-PAN-CROSS

€ 1.00

461

461L0600
ref: 461

WASHER-SPRING

€ 0.50

11051

110511370
ref: 11051

BRACKET,SEAT LOCK

€ 5.50

11051A

110511481
ref: 11051A

BRACKET,REFLECTOR,RR,

€ 9.50

11051B

110511482
ref: 11051B

BRACKET,REFLECTOR,RR,

€ 9.50

11051C

110511662
ref: 11051C

BRACKET,REFLECTOR,FR,

€ 15.50

11051D

110511663
ref: 11051D

BRACKET,REFLECTOR,FR,

€ 15.50

21007

210075042
ref: 21007

ROTOR,LOCK,TANK CAP

€ 65.50

27005

270055120
ref: 27005

SWITCH-ASSY-IGNITION

€ 100.00

27008

270081189
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 12.50

27010A

270101461
ref: 27010A

SWITCH,SIDE STAND

€ 127.00

27010B

270101479
ref: 27010B

SWITCH,REAR BRAKE

€ 20.00

27016

270161115
ref: 27016

LOCK-ASSY,SEAT STRIKE

€ 27.00

27016A

270165261
ref: 27016A

LOCK-ASSY,SEAT

€ 76.50

27045

270455141
ref: 27045

SWITCH-ASSY

€ 222.00

28012

280121003
ref: 28012

REFLECTOR,REFLEX

€ 15.00

28012A

280121077
ref: 28012A

REFLECTOR-REFLEX

€ 16.00

28012B

280121088
ref: 28012B

REFLECTOR-REFLEX

€ 15.00

92144

921441753
ref: 92144

SPRING,BRAKE LAMP SWI

€ 4.00

92151

921511216
ref: 92151

BOLT

€ 1.50

92151A

921511911
ref: 92151A

BOLT,TORX,6X16

€ 1.50

92172

921720004
ref: 92172

SCREW,6X14

€ 2.00

92210

922100007
ref: 92210

NUT,FLANGED,5MM

€ 2.00
