CYLINDER/PISTON(S)

ZX1200B2 ZX12R 2003 USA CALIFORNIA CANADA

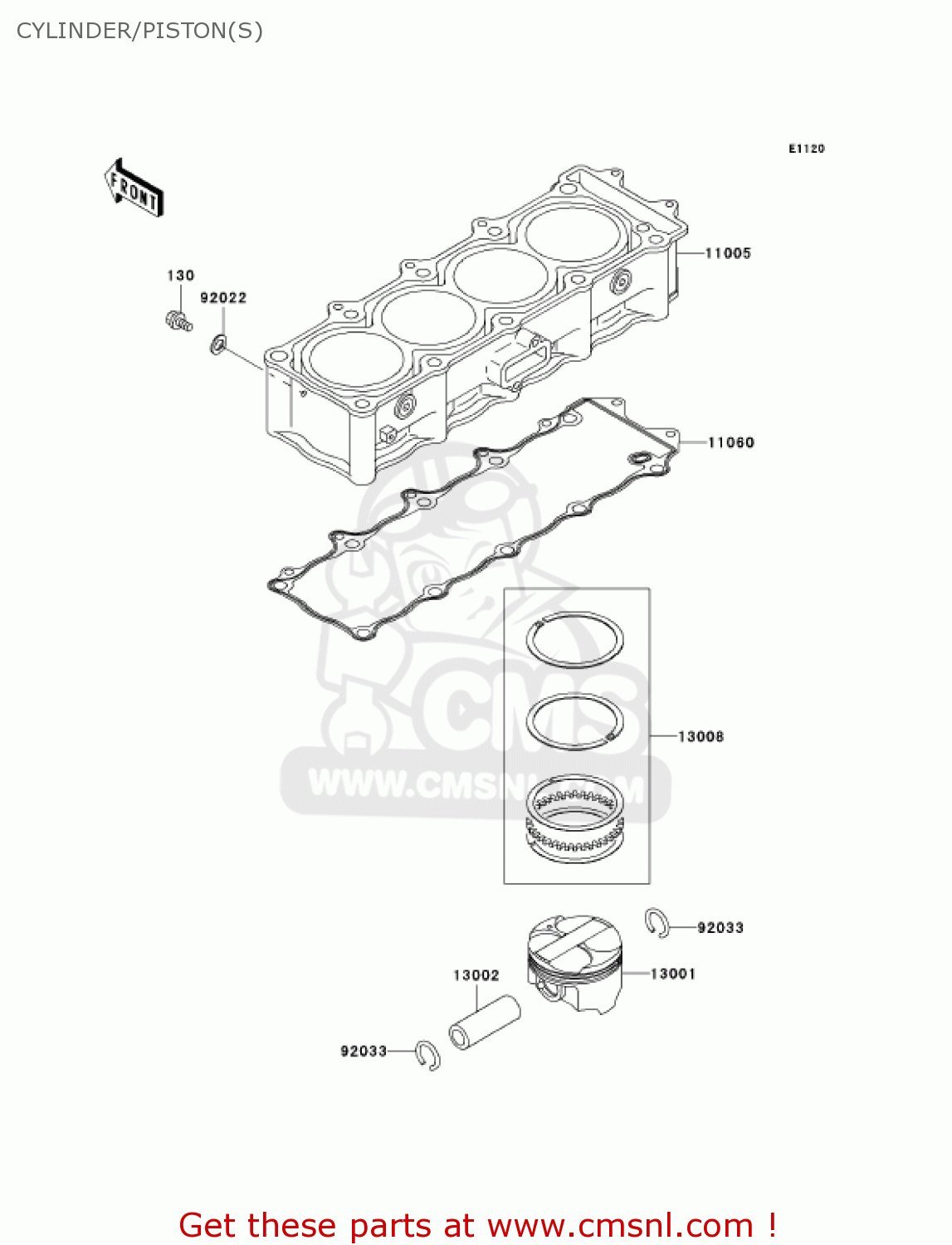

Cylinder/piston(s) diagram ZX1200B2 ZX12R 2003 USA CALIFORNIA CANADA

CYLINDER/PISTON(S) ZX1200B2 ZX12R 2003 USA CALIFORNIA CANADA

CYLINDER/PISTON(S) ZX1200B2 ZX12R 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130Y0610
ref: 130

BOLT-FLANGED

€ 2.50

11005

110051970
ref: 11005

CYLINDER-ENGINE

€ 1,616.50

11060

110601907
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 44.50

13001

130011596
ref: 13001

PISTON-ENGINE

€ 111.00

13002

130021131
ref: 13002

PIN-PISTON

€ 24.00

13008

130081196
ref: 13008

RING-SET-PISTON

€ 59.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92033

920331188
ref: 92033

RING-SNAP

€ 2.50
