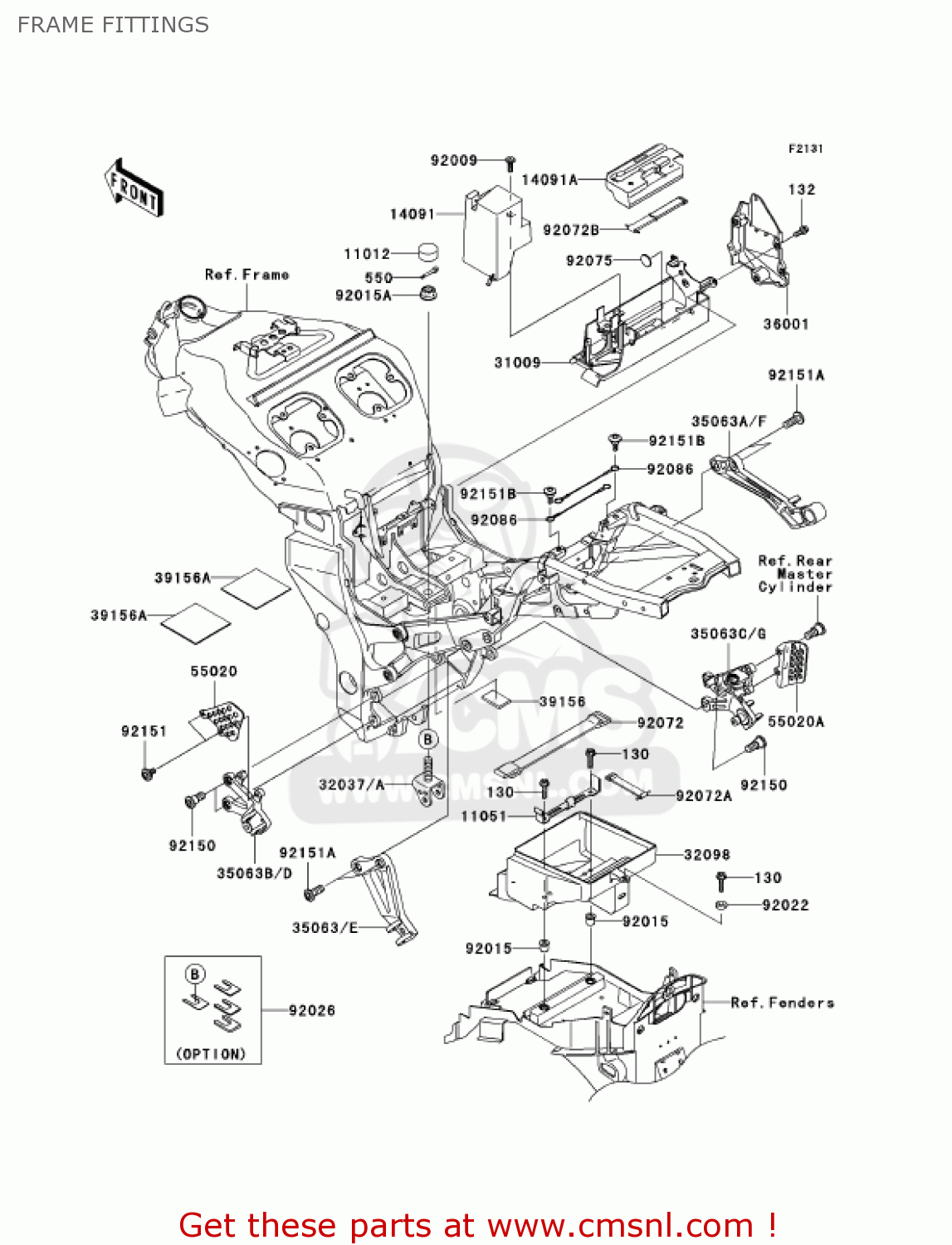

FRAME FITTINGS

ref

part #

description

quantity

130

130J0625
ref: 130

BOLT-FLANGED,6X25

€ 2.00

132

132J0616
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

550

550D4025
ref: 550

PIN,COTTER,4X25

€ 0.50

11012

110121592
ref: 11012

CAP,AXLE NUT

€ 5.00

11051

110511377
ref: 11051

BRACKET,TOOL CASE

€ 11.50

14091

140911238
ref: 14091

COVER,FUSE

€ 36.00

14091A

140911288
ref: 14091A

COVER,BATTERY

€ 34.00

31009

310091056
ref: 31009

CASE-COMP-BATTERY

€ 109.50

32037A

320371800
ref: 32037A

BRACKET-SHOCKABSORBER

€ 35.00

32098

320981131
ref: 32098

CASE-TOOL

€ 71.50

35063D

350631062
ref: 35063D

STAY,FR,LH

€ 143.50

35063E

350631064
ref: 35063E

STAY,RR,LH

€ 46.00

35063F

350631065
ref: 35063F

STAY,RR,RH

€ 117.00

35063G

350631236
ref: 35063G

STAY,FR,RH

€ 139.00

36001

3600116708F
ref: 36001

COVER-SIDE,FRAME,RH,F

€ 51.50

39156

391561649
ref: 39156

PAD

€ 1.50

39156A

391561650
ref: 39156A

PAD

€ 7.50

55020

550201696
ref: 55020

GUARD,FRONT STEP,LH

€ 19.00

55020A

550201697
ref: 55020A

GUARD,FRONT STEP,RH

€ 19.00

92009

920091909
ref: 92009

SCREW,5X16

€ 1.50

92015

920151700A
ref: 92015

NUT

€ 5.50

92015A

920151881
ref: 92015A

NUT,FLANGED,16MM

€ 16.50

92022

920221344
ref: 92022

WASHER,7X16X1.2

€ 2.50

92026

920261586
ref: 92026
(OPTION)

SPACER-SET,RACE OPTIO

€ 292.50

92072

920721203
ref: 92072

BAND,L=150

€ 9.50

92072A

920721349
ref: 92072A

BAND,TOOL

€ 9.50

92072B

920721377
ref: 92072B

BAND,L=290

€ 16.00

92075

92075261
ref: 92075

DAMPER,BATTERY CASE

€ 3.00

92086

920861075
ref: 92086

WIRE

€ 14.00

92150

921501839
ref: 92150

BOLT

€ 1.50

92151

921511334
ref: 92151

BOLT,6MM

€ 2.00

92151A

921511372
ref: 92151A

BOLT,SOCKET,10X30

€ 4.00

92151B

921511880
ref: 92151B

BOLT,SOCKET,6X21

€ 5.50
