FRAME
ZX1200B1 ZX12R 2002 USA CALIFORNIA CANADA

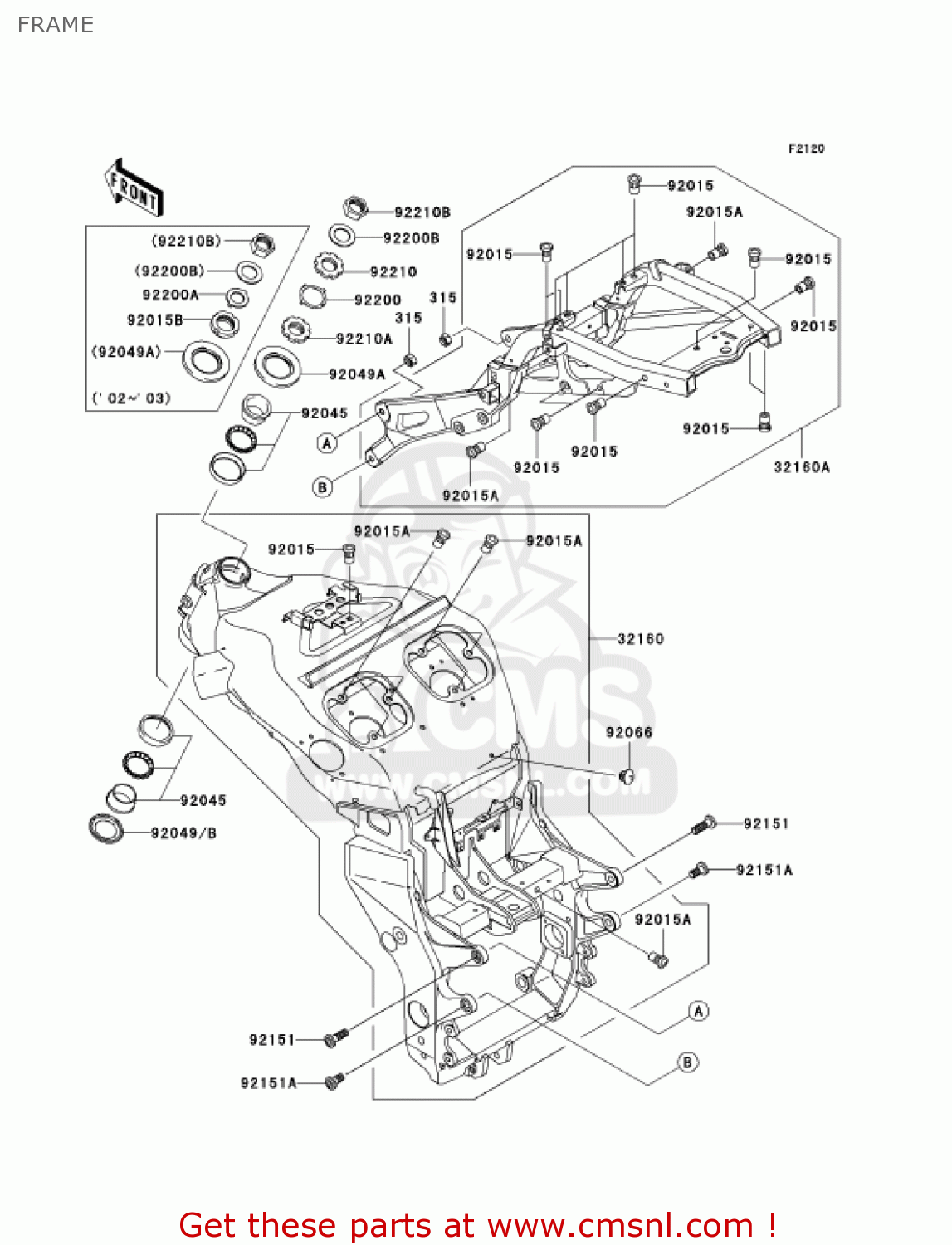

Frame diagram ZX1200B1 ZX12R 2002 USA CALIFORNIA CANADA
FRAME ZX1200B1 ZX12R 2002 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
315
315G1000
ref: 315
NUT-HEX-FINE,10MM
€ 1.00
32160
3216017748F
ref: 32160
FRAME-COMP,AL,FR,F.S.
€ 2,158.00
32160A
3216017788F
ref: 32160A
FRAME-COMP,AL,RR,F.S.
€ 605.00
92015
920151791
ref: 92015
NUT,POP,6MM
€ 3.00
92015A
920151792
ref: 92015A
NUT,POP,6MM,L=16.5
€ 3.00
92015B
920151848
ref: 92015B
NUT,STEERING STEM,35M
€ 32.50
92045
920451384
ref: 92045
BEARING-BALL,SF07A17P
€ 48.50
92049A
920491382
ref: 92049A
SEAL-OIL,XMH 43 75 6.
€ 16.00
92049B
920491383
ref: 92049B
SEAL-OIL,XMHE 43 55 4
€ 13.00
92066
920661547
ref: 92066
PLUG
€ 2.50
92151
921511372
ref: 92151
BOLT,SOCKET,10X30
€ 4.00
92151A
921511557
ref: 92151A
BOLT,SOCKET,10X20
€ 2.00
92200A
922001083
ref: 92200A
WASHER,CLAW,25.5X40X2
€ 4.50
92200B
922001084
ref: 92200B
WASHER,25.5X42X2.3
€ 3.50
92210B
922101334
ref: 92210B
NUT,25MM
€ 21.50
