FOOTRESTS

ZX1200B1 ZX12R 2002 USA CALIFORNIA CANADA

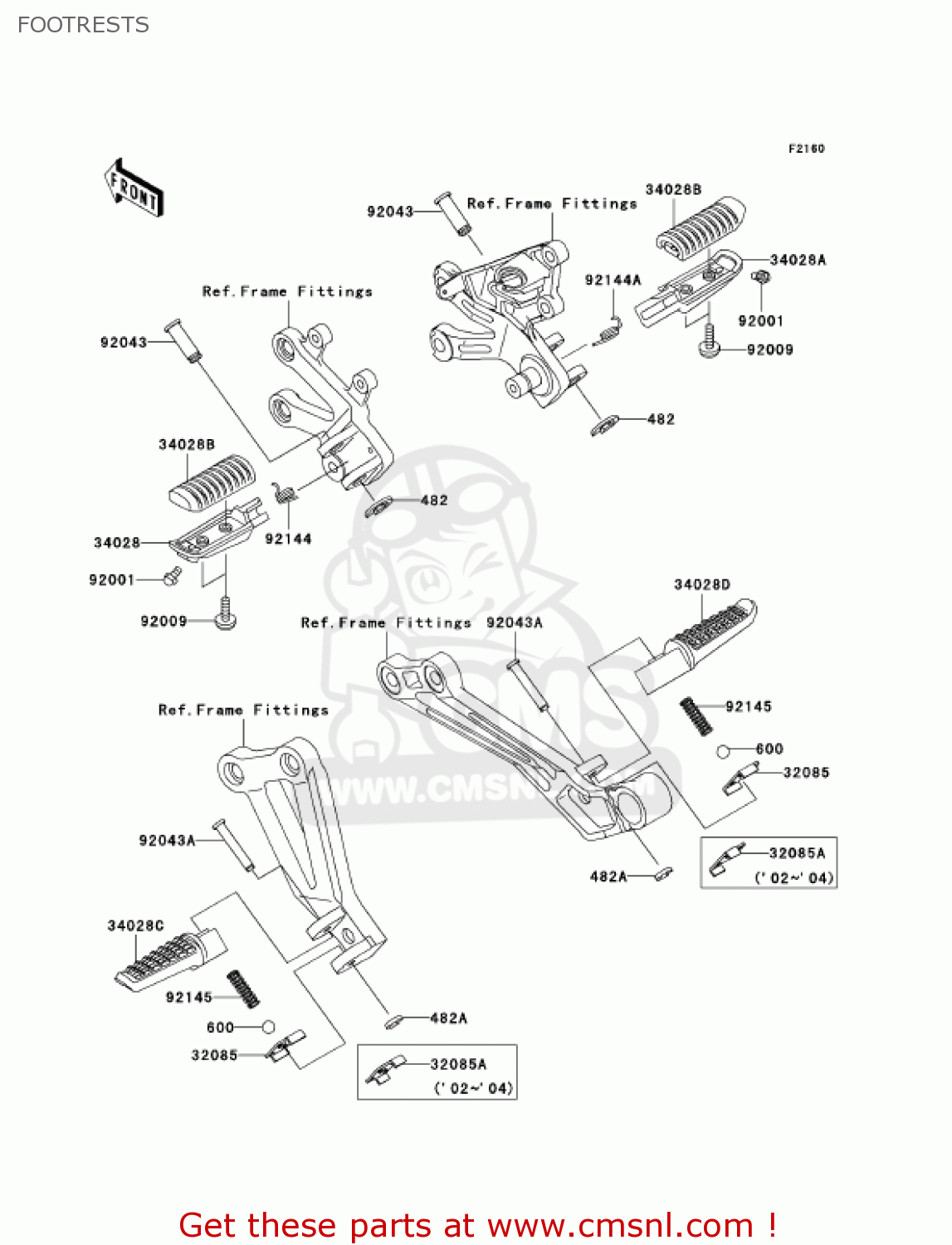

Footrests diagram ZX1200B1 ZX12R 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

482

482L0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

482A

482L5000
ref: 482A

CIRCLIP-TYPE-E,5MM

€ 1.00

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

32085A

320851496
ref: 32085A

STOPPER,REAR STEP

€ 2.00

34028

340281428
ref: 34028

STEP,FR,LH

€ 47.00

34028A

340281429
ref: 34028A

STEP,FR,RH

€ 47.00

34028B

340281430
ref: 34028B

STEP,RUBBER

€ 21.00

34028C

340281480
ref: 34028C

STEP,RR,LH

€ 71.50

34028D

340281481
ref: 34028D

STEP,RR,RH

€ 71.50

92001

920011905
ref: 92001

BOLT,6X10

€ 3.50

92009

920091404
ref: 92009

SCREW

€ 3.50

92043

920431594
ref: 92043

PIN,12X42.5

€ 4.00

92043A

920431595
ref: 92043A

PIN,6X40

€ 1.50

92144

921441567
ref: 92144

SPRING,STEP RETURN,LH

€ 4.00

92144A

921441568
ref: 92144A

SPRING,STEP RETURN,RH

€ 4.00

92145

921451319
ref: 92145

SPRING

€ 1.00
