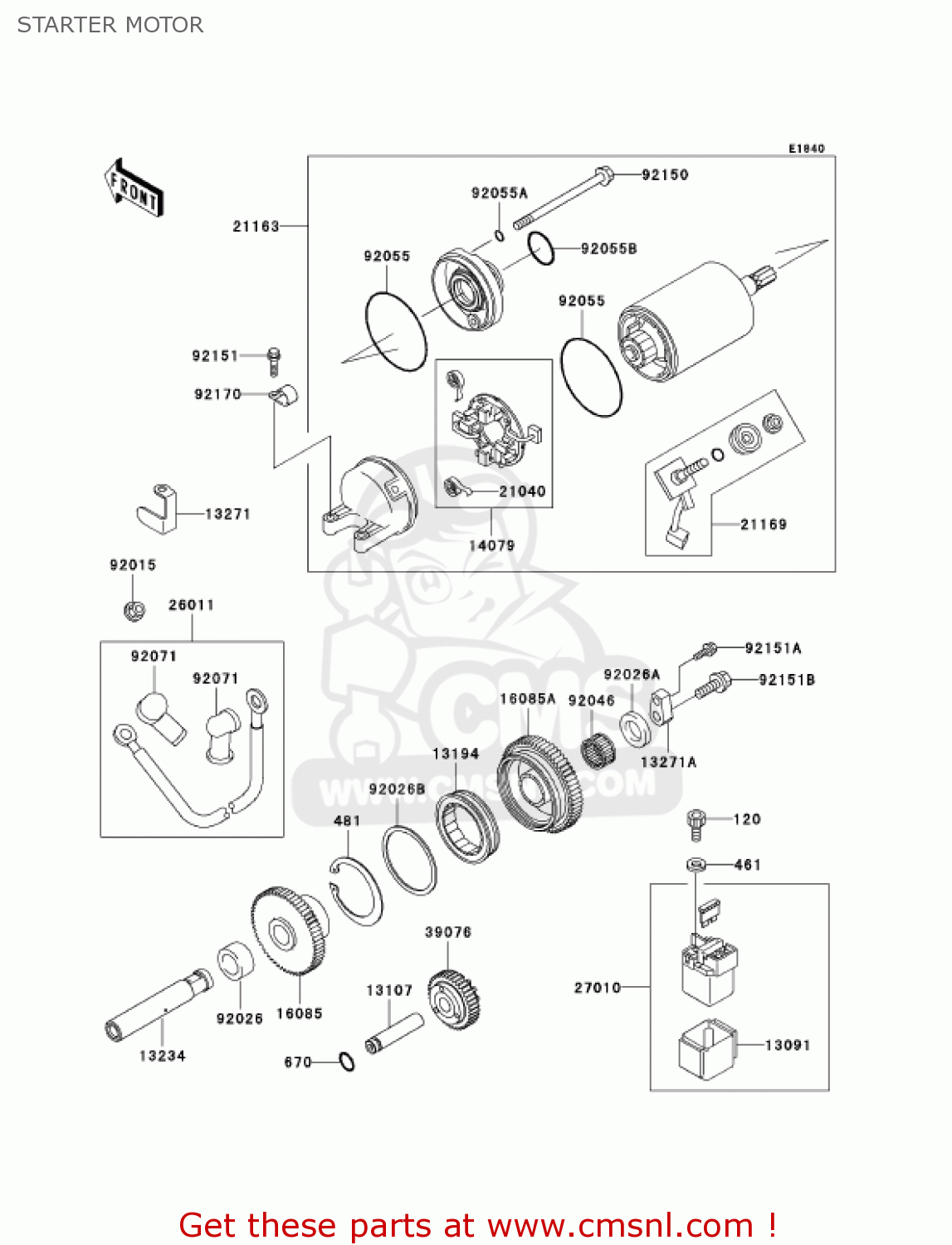

STARTER MOTOR

ref

part #

description

quantity

120

120S0510
ref: 120

BOLT-SOCKET

€ 0.50

461

461K0500
ref: 461

WASHER-SPRING,5MM,BLA

€ 0.50

481

481J6200
ref: 481

CIRCLIP,62MM

€ 7.50

670

670D1509
ref: 670

O RING,9MM

€ 3.00

13091

130911884
ref: 13091

HOLDER,MAGNETIC SWITC

€ 8.00

13107

131071422
ref: 13107

SHAFT

€ 17.50

13194

131941095
ref: 13194

CLUTCH-ONEWAY

€ 122.50

13234

132341114
ref: 13234

SHAFT-COMP

€ 48.50

13271

132711231
ref: 13271

PLATE

€ 3.00

13271A

132711639
ref: 13271A

PLATE

€ 13.50

14079

140791082
ref: 14079

HOLDER-ASSY,CARBON BR

€ 31.50

16085

160851328
ref: 16085

GEAR

€ 106.00

16085A

160851343
ref: 16085A

GEAR

€ 123.50

21040

210401051
ref: 21040

SPRING-BRUSH

€ 1.50

21163

211631302
ref: 21163

STARTER-ELECTRIC

€ 699.00

21169

211691058
ref: 21169

TERMINAL,STARTER

€ 44.00

26011

260111749
ref: 26011

WIRE-LEAD,STARTER

€ 52.00

27010

270101327
ref: 27010

SWITCH,MAGNETIC

€ 116.00

39076

390761074
ref: 39076

LIMITER

€ 118.00

92015

920151623
ref: 92015

NUT

€ 3.00

92026

920261541
ref: 92026

SPACER,LH

€ 6.50

92026A

920261542
ref: 92026A

SPACER,RH

€ 9.50

92026B

920261550
ref: 92026B

SPACER,ONEWAY CLUTCH

€ 5.00

92046

920461288
ref: 92046

BEARING-NEEDLE

€ 16.00

92055

920551260
ref: 92055

RING-O,62MM

€ 7.50

92055A

920551261
ref: 92055A

RING-O,4.5MM

€ 2.00

92055B

920551262
ref: 92055B

RING-O,24.4X3.1

€ 8.50

92071

920711120
ref: 92071

GROMMET,STARTER TERMI

€ 8.50

92150

921501237
ref: 92150

BOLT

€ 7.00

92151

921511130
ref: 92151

BOLT,6X25

€ 2.00

92151A

921511411
ref: 92151A

BOLT

€ 1.50

92151B

921511543
ref: 92151B

BOLT,8X22

€ 1.50

92170

921701900
ref: 92170

CLAMP

€ 4.00
