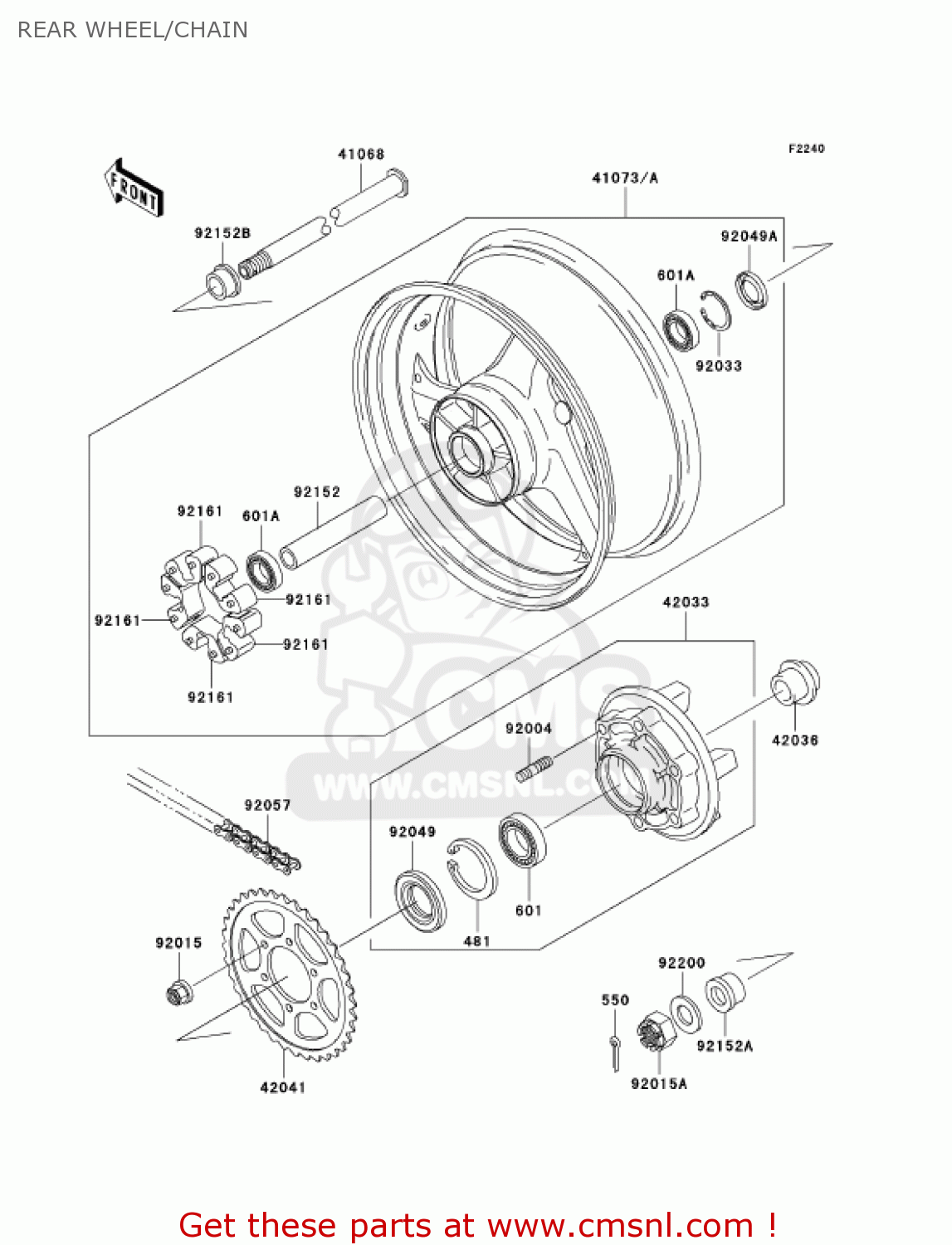

REAR WHEEL/CHAIN

ref

part #

description

quantity

481

481J5500
ref: 481

CIRCLIP

€ 6.50

550

550D4040
ref: 550

PIN-COTTER,4.0X40

€ 1.00

601

601B6006G
ref: 601

BEARING-BALL,#6006G

€ 27.50

601A

601B6205UU
ref: 601A

BEARING-BALL

€ 27.50

41068

410681416
ref: 41068

AXLE,RR

€ 76.00

41073

410731651DH
ref: 41073

WHEEL-ASSY,RR,C.GRAY

€ 991.50

41073A

410731651E7
ref: 41073A
[CN]

WHEEL-ASSY,RR,M.L.BLU

€ 991.50

42033

420331203
ref: 42033

COUPLING-ASSY,RR HUB

€ 282.00

42036

420361279
ref: 42036

SLEEVE,RR HUB,L=22

€ 21.50

42041

420411523
ref: 42041

SPROCKET-HUB,46T

€ 63.00

92004

920041275
ref: 92004

STUD

€ 6.50

92015

920151335
ref: 92015

NUT,FLANGED,10MM

€ 1.50

92015A

920151844
ref: 92015A

NUT,CASTLE,24MM

€ 10.00

92033

920331043
ref: 92033

RING,SNAP,56.2M/M

€ 6.00

92049

920491263
ref: 92049

SEAL-OIL,PJN40556

€ 12.50

92049A

920491375
ref: 92049A

SEAL-OIL,RR HUB

€ 13.00

92057

920571477
ref: 92057

CHAIN,DRIVE,DID50ZVMX

€ 266.50

92152

921521080
ref: 92152

COLLAR,RR HUB,L=152.5

€ 25.50

92152A

921521181
ref: 92152A

COLLAR,RR AXLE,LH,L=1

€ 23.00

92152B

921521246
ref: 92152B

COLLAR,RR AXLE,RH,L=1

€ 17.50

92161

921611069
ref: 92161

DAMPER,SHOCK,RR HUB

€ 19.50

92200

922001479
ref: 92200

WASHER,25.5X38X3.2

€ 1.50
