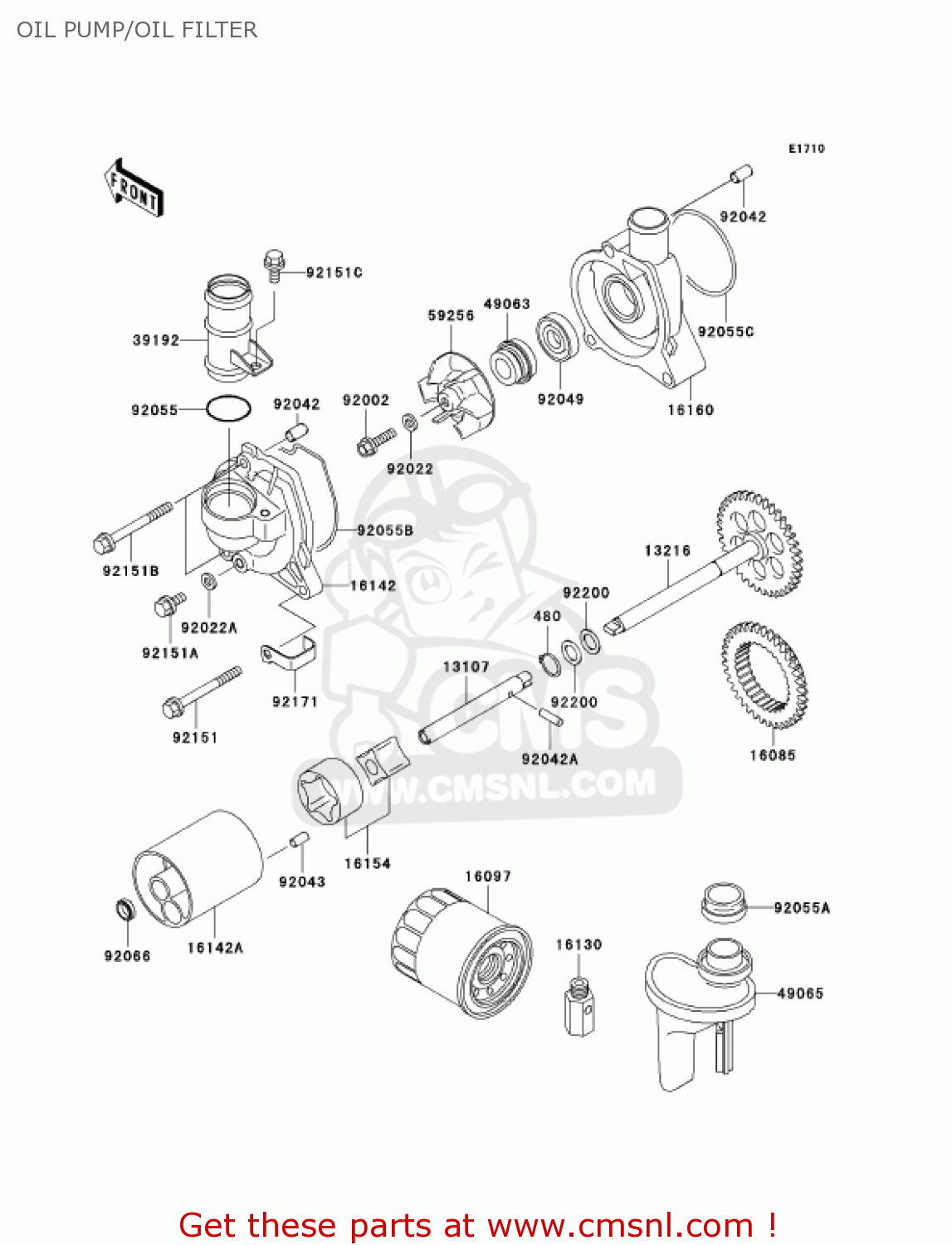

OIL PUMP/OIL FILTER

ref

part #

description

quantity

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

13107

131071419
ref: 13107

SHAFT,PUMP,LH

€ 23.00

13216

132161183
ref: 13216

GEAR-COMP,PUMP,RH

€ 106.50

16085

160851326
ref: 16085

GEAR

€ 106.00

16097

160971070
ref: 16097

FILTER-ASSY-OIL

€ 10.50

16130

161301058
ref: 16130

VALVE-ASSY-RELIEF

€ 30.00

16142

161421157
ref: 16142

COVER-PUMP,WATER

€ 102.50

16142A

161421168
ref: 16142A

COVER-PUMP,OIL

€ 54.00

16154

161541124
ref: 16154

ROTOR-PUMP

€ 55.00

16160

161601324
ref: 16160

BODY,WATER PUMP

€ 91.00

39192

391921128
ref: 39192

PIPE-WATER

€ 26.50

49063

490631055
ref: 49063

SEAL-MECHANICAL

€ 17.00

49065

490651084
ref: 49065

FILTER-OIL

€ 24.00

59256

592561076
ref: 59256

IMPELLER

€ 32.50

92002

920021154
ref: 92002

BOLT,6X22

€ 3.00

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92022A

92022304
ref: 92022A

WASHER,PLAIN

€ 2.50

92042

92042007
ref: 92042

PIN-DOWEL

€ 4.00

92042A

92042014
ref: 92042A

PIN-GEAR CHANGE DRUM

€ 0.50

92043

920431262
ref: 92043

PIN,DOWEL,4.2X6X12

€ 2.50

92049

920491336
ref: 92049

SEAL-OIL,OIL PUMP

€ 20.50

92055

920551328
ref: 92055

RING-O,27.6X3.2

€ 4.50

92055A

920551503
ref: 92055A

RING-O,OIL FILTER

€ 6.50

92055B

920551602
ref: 92055B

RING-O,WATER PUMP COV

€ 8.00

92055C

920553018
ref: 92055C

RING-O,59.6X2.4

€ 4.00

92066

920661537
ref: 92066

PLUG

€ 8.50

92151

921511132
ref: 92151

BOLT,6X55

€ 3.00

92151A

921511133
ref: 92151A

BOLT,6X12

€ 1.50

92151B

921511199
ref: 92151B

BOLT,6X65

€ 3.00

92151C

921511774
ref: 92151C

BOLT

€ 1.00

92171

921711179
ref: 92171

CLAMP

€ 6.00

92200

922001009
ref: 92200

WASHER

€ 3.00

all assemblies
