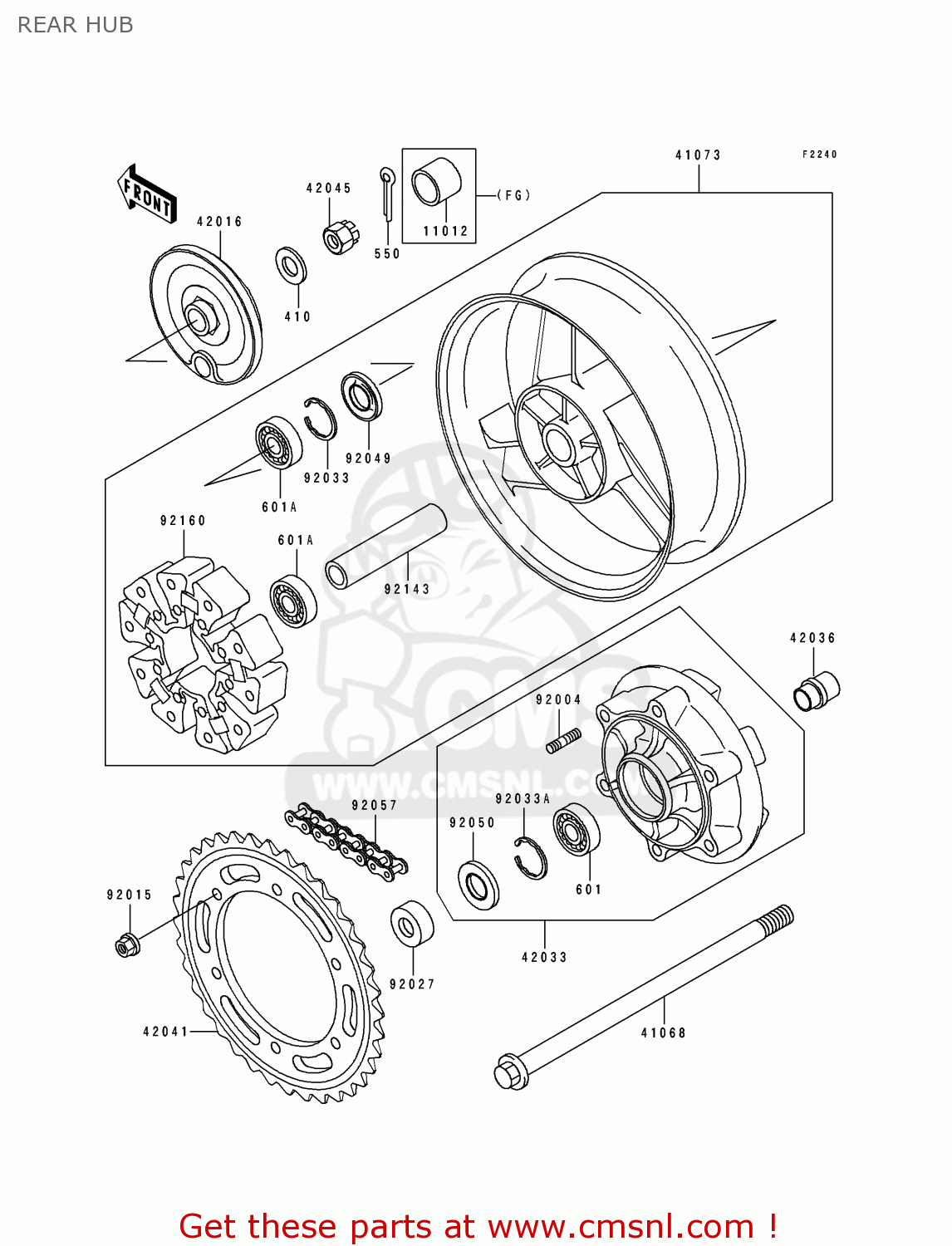

REAR HUB

ref

part #

description

quantity

410

410D1800
ref: 410

W-PLAIN-S,18MM

€ 1.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6206UU
ref: 601

BEARING-BALL,#6206UUC

€ 41.00

601A

601B6304UU
ref: 601A

BEARING-BALL,#6304UUC

€ 34.50

11012

110121590
ref: 11012
FG

CAP,AXLE NUT

€ 3.50

41068

410681350
ref: 41068

AXLE,RR

€ 139.00

41073

410731594DH
ref: 41073

WHEEL-ASSY,RR,C.GRAY

€ 649.00

42016

420161167
ref: 42016

PANEL-REAR BRAKE

€ 135.00

42033

420331160EZ
ref: 42033

COUPLING-ASSY,RR HUB,

€ 241.00

42036

420361302
ref: 42036

SLEEVE,RR AXLE,L=45

€ 25.50

42041

420411283
ref: 42041

SPROCKET-HUB,45T

€ 53.00

42045

42045018
ref: 42045

NUT,18MM

€ 7.50

92004

920041146
ref: 92004

STUD,10X24

€ 4.00

92015

920151720
ref: 92015

NUT,10MM

€ 3.50

92027

920271287
ref: 92027

COLLAR,20X40X16.5

€ 20.50

92033

920331043
ref: 92033

RING,SNAP,56.2M/M

€ 6.00

92033A

920331044
ref: 92033A

CIRCLIP 62 M/M

€ 7.50

92049

920491061
ref: 92049

SEAL-OIL,28X52X5

€ 13.00

92050

92050027
ref: 92050

OIL SEAL

€ 13.50

92057

920571385
ref: 92057

CHAIN,DRIVE,EK50UV-XX

€ 129.50

92143

921431390
ref: 92143

COLLAR,REAR AXLE,L=11

€ 28.50

92160

921601398
ref: 92160

DAMPER,SHOCK,RR HUB

€ 92.00
