FRAME

ZX1100F1 GPZ1100 1996 EUROPE UK FR NL AR FG GR NR SD ST

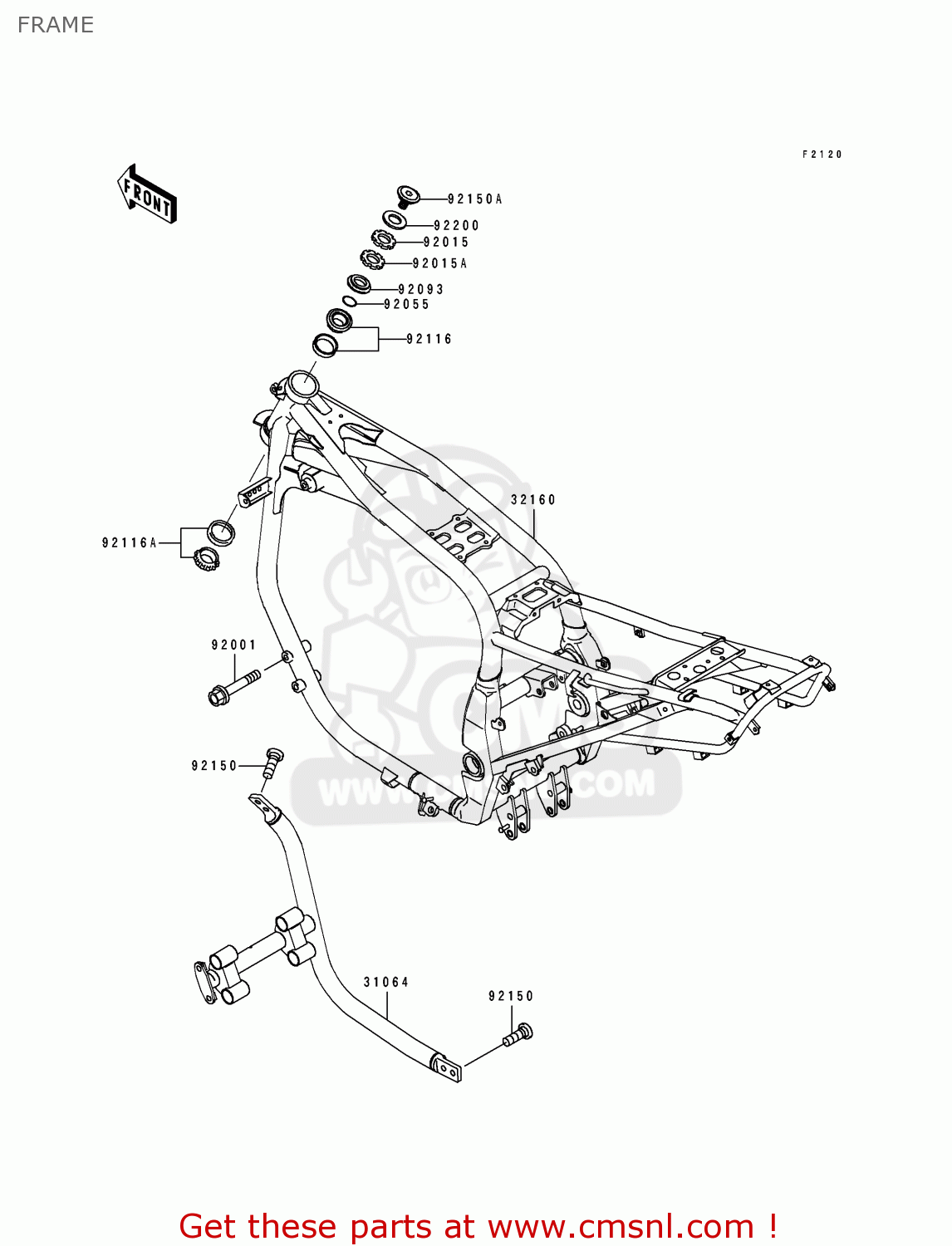

Frame diagram ZX1100F1 GPZ1100 1996 EUROPE UK FR NL AR FG GR NR SD ST

prices are in EUR

ref

part #

description

quantity

31064

310641169
ref: 31064

PIPE-COMP,DOWNTUBE,RH

€ 323.50

32160

321601407
ref: 32160

FRAME-COMP

€ 1,518.00

92001

920014021
ref: 92001

BOLT,10X75

€ 6.00

92015

920151417
ref: 92015

NUT,28MM,T=6

€ 7.50

92015A

920151976
ref: 92015A

NUT,STEERING STEM,28M

€ 23.00

92055

920551470
ref: 92055

RING-O,27.5X2

€ 2.50

92093

920931383
ref: 92093

SEAL,MN036N1-A

€ 6.50

92116

921161067
ref: 92116

BEARING-ROLLER,HR320/

€ 76.50

92116A

921161069
ref: 92116A

BEARING-ROLLER

€ 69.50

92150

921501690
ref: 92150

BOLT,SOCKET,10X30

€ 4.00

92150A

921501883
ref: 92150A

BOLT,STEERING,16X24

€ 26.50

92200

922001273
ref: 92200

WASHER,16X41X4.5

€ 7.50
