Genuine ZX Kawasaki Parts delivered quickly!


CARBURETOR

ZX1100F1 GPZ1100 1996 EUROPE UK FR NL AR FG GR NR SD ST

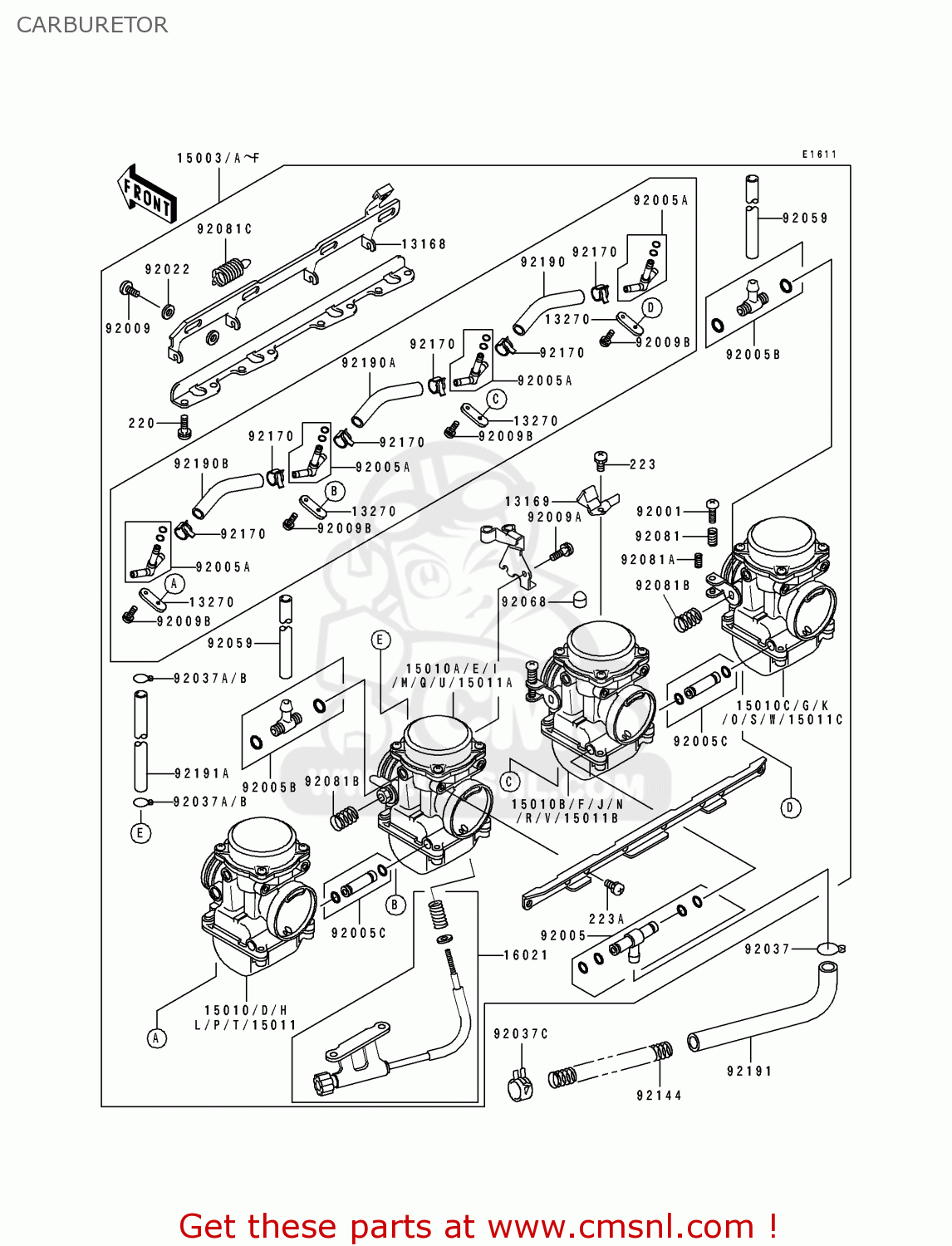

Carburetor diagram ZX1100F1 GPZ1100 1996 EUROPE UK FR NL AR FG GR NR SD ST

CARBURETOR ZX1100F1 GPZ1100 1996 EUROPE UK FR NL AR FG GR NR SD ST
CARBURETOR ZX1100F1 GPZ1100 1996 EUROPE UK FR NL AR FG GR NR SD ST
CARBURETOR ZX1100F1 GPZ1100 1996 EUROPE UK FR NL AR FG GR NR SD ST
prices are in EUR
ref
part #
description
quantity
13168
131681245
ref: 13168
LEVER,STARTER
€ 95.50
13169
131691871
ref: 13169
PLATE,STARTER CABLE
€ 16.00
13270
132701063
ref: 13270
ARFGFRNLSDSTUK
PLATE,JOINT STAY
132701063
€ 21.00
15003
150031122
ref: 15003
EUGRNR
CARBURETOR-ASSY
€ 1,978.50
15003A
150031128
ref: 15003A
NLUK
CARBURETOR-ASSY
€ 1,978.50
15003B
150031131
ref: 15003B
AR
CARBURETOR-ASSY
€ 1,978.50
15003C
150031132
ref: 15003C
FR
CARBURETOR-ASSY
€ 1,762.50
15003D
150031184
ref: 15003D
SD
CARBURETOR-ASSY
€ 1,762.50
15003E
150031186
ref: 15003E
ST
CARBURETOR-ASSY
€ 1,978.50
15003F
150031229
ref: 15003F
FG
CARBURETOR-ASSY
€ 1,762.50
15010
150101909
ref: 15010
EUGRNR
CARBURETOR,LH,OUTSIDE
€ 942.00
15010A
150101910
ref: 15010A
EUGRNR
CARBURETOR,LH,INSIDE
€ 942.00
15010B
150101911
ref: 15010B
EUGRNR
CARBURETOR,RH,INSIDE
€ 942.00
15010C
150101912
ref: 15010C
EUGRNR
CARBURETOR,RH,OUTSIDE
€ 942.00
15010D
150101913
ref: 15010D
NLUK
CARBURETOR,LH,OUTSIDE
€ 720.50
15010E
150101914
ref: 15010E
NLUK
CARBURETOR,LH,INSIDE
€ 720.50
15010F
150101915
ref: 15010F
NLUK
CARBURETOR,RH,INSIDE
€ 720.50
15010G
150101916
ref: 15010G
NLUK
CARBURETOR,RH,OUTSIDE
€ 720.50
15010H
150101925
ref: 15010H
AR
CARBURETOR,LH,OUTSIDE
€ 1,053.00
15010I
150101926
ref: 15010I
AR
CARBURETOR,LH,INSIDE
€ 1,053.00
15010J
150101927
ref: 15010J
AR
CARBURETOR,RH,INSIDE
€ 1,053.00
15010K
150101928
ref: 15010K
AR
CARBURETOR,RH,OUTSIDE
€ 1,053.00
15010L
150101929
ref: 15010L
FR
CARBURETOR,LH,OUTSIDE
€ 642.50
15010M
150101930
ref: 15010M
FR
CARBURETOR,LH,INSIDE
€ 720.50
15010N
150101931
ref: 15010N
FR
CARBURETOR,RH,INSIDE
€ 642.50
15010O
150101932
ref: 15010O
FR
CARBURETOR,RH,OUTSIDE
€ 642.50
15010P
150101933
ref: 15010P
SD
CARBURETOR,LH,OUTSIDE
€ 642.50
15010Q
150101934
ref: 15010Q
SD
CARBURETOR,LH,INSIDE
€ 642.50
15010R
150101935
ref: 15010R
SD
CARBURETOR,RH,INSIDE
€ 642.50
15010S
150101936
ref: 15010S
SD
CARBURETOR,RH,OUTSIDE
€ 642.50
15010T
150101937
ref: 15010T
ST
CARBURETOR,LH,OUTSIDE
€ 1,053.00
15010U
150101938
ref: 15010U
ST
CARBURETOR,LH,INSIDE
€ 1,053.00
15010V
150101939
ref: 15010V
ST
CARBURETOR,RH,INSIDE
€ 720.50
15010W
150101940
ref: 15010W
ST
CARBURETOR,RH,OUTSIDE
€ 1,053.00
15011
150111117
ref: 15011
FG
CARBURETOR,LH,OUTSIDE
€ 642.50
15011A
150111118
ref: 15011A
FG
CARBURETOR,LH,INSIDE
€ 642.50
15011B
150111119
ref: 15011B
FG
CARBURETOR,RH,INSIDE
€ 642.50
15011C
150111120
ref: 15011C
FG
CARBURETOR,RH,OUTSIDE
€ 642.50
16021
160211204
ref: 16021
SCREW-THROTTLE STOP
160211204
€ 62.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051288
ref: 92005
FITTING
920051288
€ 22.00
92005A
920051291
ref: 92005A
ARFGFRNLSDSTUK
FITTING
920051291
€ 26.50
92005B
920051306
ref: 92005B
FITTING
920051306
€ 19.00
92005C
920051310
ref: 92005C
FITTING
920051310
€ 25.00
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091365
ref: 92009A
SCREW
920091365
€ 4.50
92009B
920091705
ref: 92009B
ARFGFRNLSDSTUK
SCREW 4X8
920091705
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
223C0420
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92037
920371104
ref: 92037
CLAMP,HOSE
920371104
€ 1.00
92037A
920371201
ref: 92037A
FGFR
CLAMP
920371201
€ 3.00
92037B
920371477
ref: 92037B
AREUGRNLNRSDSTUK
CLAMP,TUBE
920371477
€ 3.00
92037C
920371861
ref: 92037C
CLAMP
920371861
€ 5.50
92059
920591237
ref: 92059
TUBE,L=350
920591237
€ 16.00
92068
92068006
ref: 92068
RUBBER PLUG
92068006
€ 2.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92081C
920811762
ref: 92081C
SPRING,STARTER LEVER
920811762
€ 14.00
92144
921441874
ref: 92144
SPRING
€ 4.50
92170
921701504
ref: 92170
ARFGFRNLSDSTUK
CLAMP
921701504
€ 3.00
92190
921901530
ref: 92190
ARFGFRNLSDSTUK
TUBE,WATER
€ 7.50
92190A
921901531
ref: 92190A
ARFGFRNLSDSTUK
TUBE,WATER
€ 7.50
92190B
921901539
ref: 92190B
ARFGFRNLSDSTUK
TUBE,WATER
€ 7.50
92191
921911007
ref: 92191
TUBE,FUEL
921911007
€ 8.50
92191A
921911017
ref: 92191A
TUBE
921911017
€ 7.00
