Genuine ZX Kawasaki Parts delivered quickly!


REAR WHEEL/CHAIN

ZX1100E3 GPZ1100 1997 CANADA

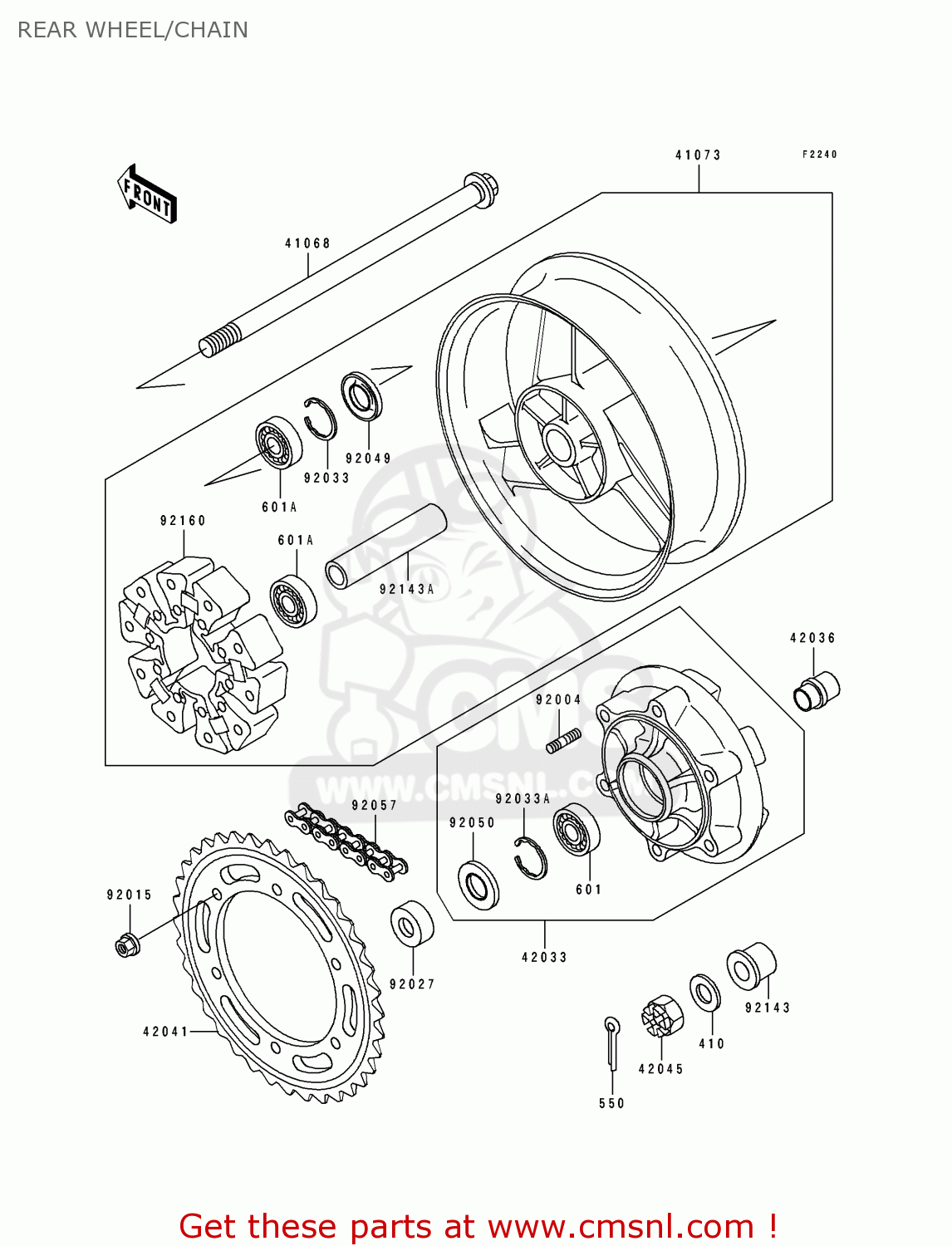

Rear wheel/chain diagram ZX1100E3 GPZ1100 1997 CANADA

REAR WHEEL/CHAIN ZX1100E3 GPZ1100 1997 CANADA
REAR WHEEL/CHAIN ZX1100E3 GPZ1100 1997 CANADA
REAR WHEEL/CHAIN ZX1100E3 GPZ1100 1997 CANADA
prices are in EUR
ref
part #
description
quantity
410
410D1800
ref: 410
W-PLAIN-S,18MM
410D1800
€ 1.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6206UU
ref: 601
BEARING-BALL,#6206UUC
601B6206UU
€ 41.00
601A
601B6304UU
ref: 601A
BEARING-BALL,#6304UUC
601B6304UU
€ 34.50
41068
410681350
ref: 41068
AXLE,RR
410681350
€ 139.00
41073
410731592DH
ref: 41073
WHEEL-ASSY,RR,C.GRAY
€ 875.00
42033
420331160EZ
ref: 42033
COUPLING-ASSY,RR HUB,
€ 241.00
42036
420361302
ref: 42036
SLEEVE,RR AXLE,L=45
420361302
€ 25.50
42041
420411283
ref: 42041
SPROCKET-HUB,45T
420411283
€ 53.00
42045
42045018
ref: 42045
NUT,18MM
42045018
€ 7.50
92004
920041146
ref: 92004
STUD,10X24
920041146
€ 4.00
92015
920151720
ref: 92015
NUT,10MM
920151720
€ 3.50
92027
920271287
ref: 92027
COLLAR,20X40X16.5
920271287
€ 20.50
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
920331043
€ 6.00
92033A
920331044
ref: 92033A
CIRCLIP 62 M/M
920331044
€ 7.50
92049
920491061
ref: 92049
SEAL-OIL,28X52X5
920491061
€ 13.00
92050
92050027
ref: 92050
OIL SEAL
92050027
€ 13.50
92057
920571385
ref: 92057
CHAIN,DRIVE,EK50UV-XX
€ 129.50
92143
921431042
ref: 92143
COLLAR,L=23
921431042
€ 19.50
92143A
921431390
ref: 92143A
COLLAR,REAR AXLE,L=11
921431390
€ 28.50
92160
921601398
ref: 92160
DAMPER,SHOCK,RR HUB
921601398
€ 92.00
