CARBURETOR PARTS
ZX1100E3 GPZ1100 1997 CANADA

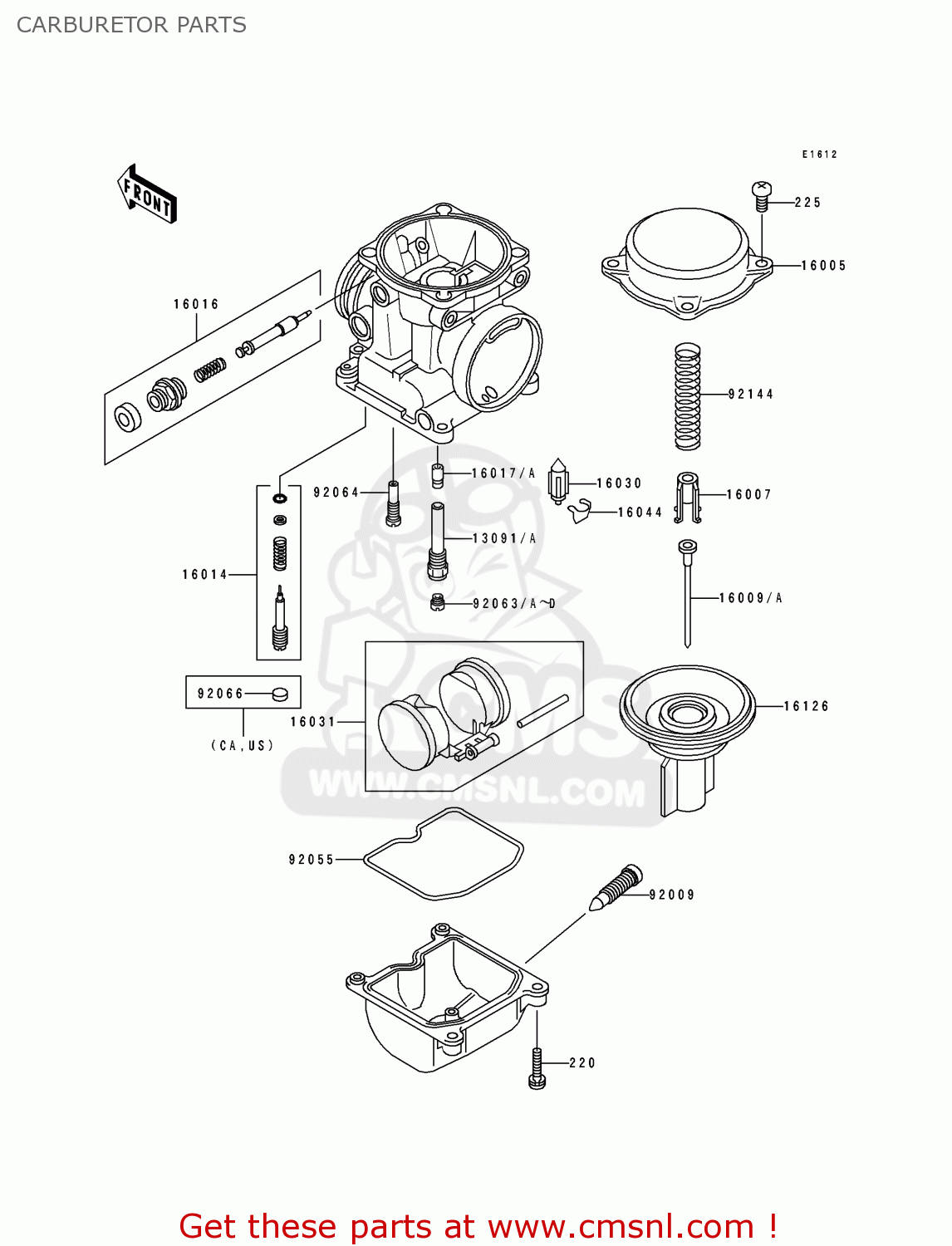

Carburetor parts diagram ZX1100E3 GPZ1100 1997 CANADA
CARBURETOR PARTS ZX1100E3 GPZ1100 1997 CANADA
×
prices are in EUR
ref
part #
description
quantity
220
220D0414
ref: 220
SCREW-PAN-CROS
€ 2.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
13091
130911425
ref: 13091
HOLDER,NEEDLE JET
€ 19.50
13091A
130911925
ref: 13091A
HOLDER,NEEDLE JET,0.6
€ 20.00
16005
160051054
ref: 16005
TOP-CHAMBER,MIXING
€ 30.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091856
ref: 16009
NEEDLE-JET,N2LB
€ 23.00
16009A
160091857
ref: 16009A
NEEDLE-JET,N2LC
€ 23.00
16014
160141080
ref: 16014
SCREW-PILOT AIR
€ 15.00
16016
160161090
ref: 16016
PLUNGER,STARTER
€ 46.50
16017
160171265
ref: 16017
JET,NEEDLE
€ 37.00
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311077
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261170
ref: 16126
VALVE,VACUUM
€ 168.00
92009
920091551
ref: 92009
SCREW,DRAIN
€ 6.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631009
ref: 92063
JET-MAIN,#105
€ 10.00
92063A
920631114
ref: 92063A
JET-MAIN,#110
€ 9.50
92063B
920631116
ref: 92063B
JET-MAIN,#108
€ 9.50
92063C
920631117
ref: 92063C
JET-MAIN,#112
€ 9.50
92063D
920631118
ref: 92063D
JET-MAIN,#115
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
€ 3.00
92144
921441219
ref: 92144
SPRING,VACUUM VALVE
€ 12.50
