ENGINE COVER(S)
ZX1100E3 GPZ1100 1997 CANADA

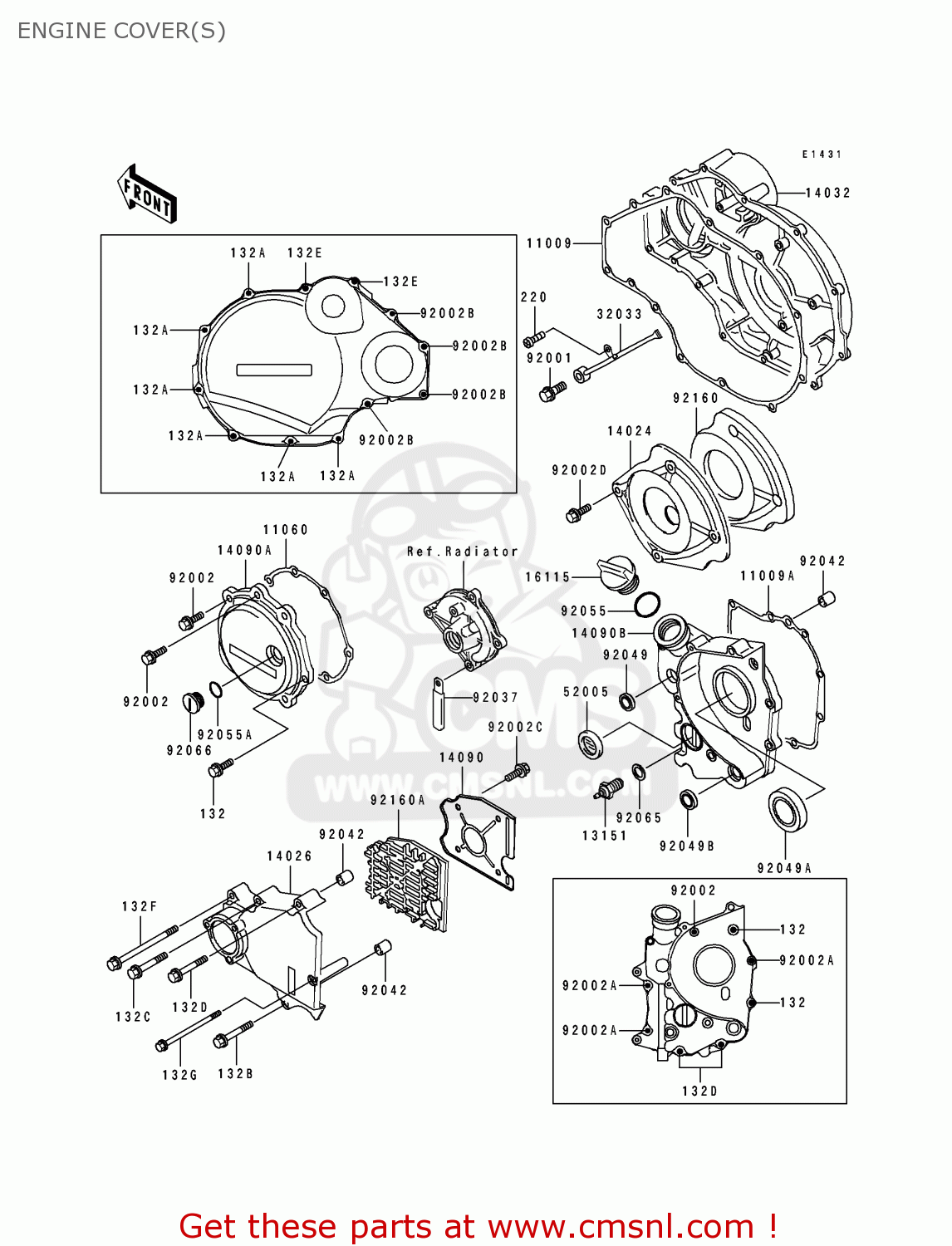

Engine cover(s) diagram ZX1100E3 GPZ1100 1997 CANADA
ENGINE COVER(S) ZX1100E3 GPZ1100 1997 CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0625
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132J0635
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132J0640
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
132D
132J0650
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
132E
132J0655
ref: 132E
BOLT-FLANGED-SMALL
€ 3.00
132F
132J0665
ref: 132F
BOLT-FLANGED-SMALL
€ 3.00
132G
132J0680
ref: 132G
BOLT-FLANGED-SMALL
€ 4.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
11009
110091860
ref: 11009
GASKET,CLUTCH COVER (NAS)
€ 9.50
11009A
110091982
ref: 11009A
GASKET (NAS)
€ 12.00
11060
110601695
ref: 11060
GASKET,PULSING COVER (NAS)
€ 6.50
13151
131511080
ref: 13151
SWITCH-COMP,NEUTRAL
€ 9.00
14024
140241925
ref: 14024
COVER,SOUND ARRESTER
€ 12.00
14026
140261214
ref: 14026
COVER-CHAIN
€ 135.50
14032
140321402
ref: 14032
COVER-CLUTCH
€ 185.50
14090
140901527
ref: 14090
COVER,SOUND ARRESTER
€ 20.50
14090A
140901537
ref: 14090A
COVER,PULSING
€ 90.00
14090B
140901538
ref: 14090B
COVER,TRANSMISSION
€ 99.00
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
32033
320331204
ref: 32033
PIPE,CLUTCH COVER
€ 20.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
€ 17.50
92001
920011855
ref: 92001
BOLT,BANJO,8X20
€ 5.50
92002
920021343
ref: 92002
BOLT,6X20
€ 4.00
92002A
920021344
ref: 92002A
BOLT,6X25
€ 1.50
92002B
920021345
ref: 92002B
BOLT,6X40
€ 4.50
92002C
920021449
ref: 92002C
BOLT,6X10
€ 2.50
92002D
920021541
ref: 92002D
BOLT,6X10
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
€ 6.50
92049A
920491070
ref: 92049A
SEAL-OIL,AE2343F0
€ 11.50
92049B
920491186
ref: 92049B
SEAL-OIL,TB13205
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
920551146
ref: 92055A
RING-O
€ 5.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661163
ref: 92066
PLUG,COVER,LH
€ 10.00
92160
921601567
ref: 92160
DAMPER,SOUND ARRESTER
€ 95.50
92160A
921601568
ref: 92160A
DAMPER,SOUND ARRESTER
€ 26.50
