TAILLIGHT(S)

ZX1100D4 ZZR1100 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

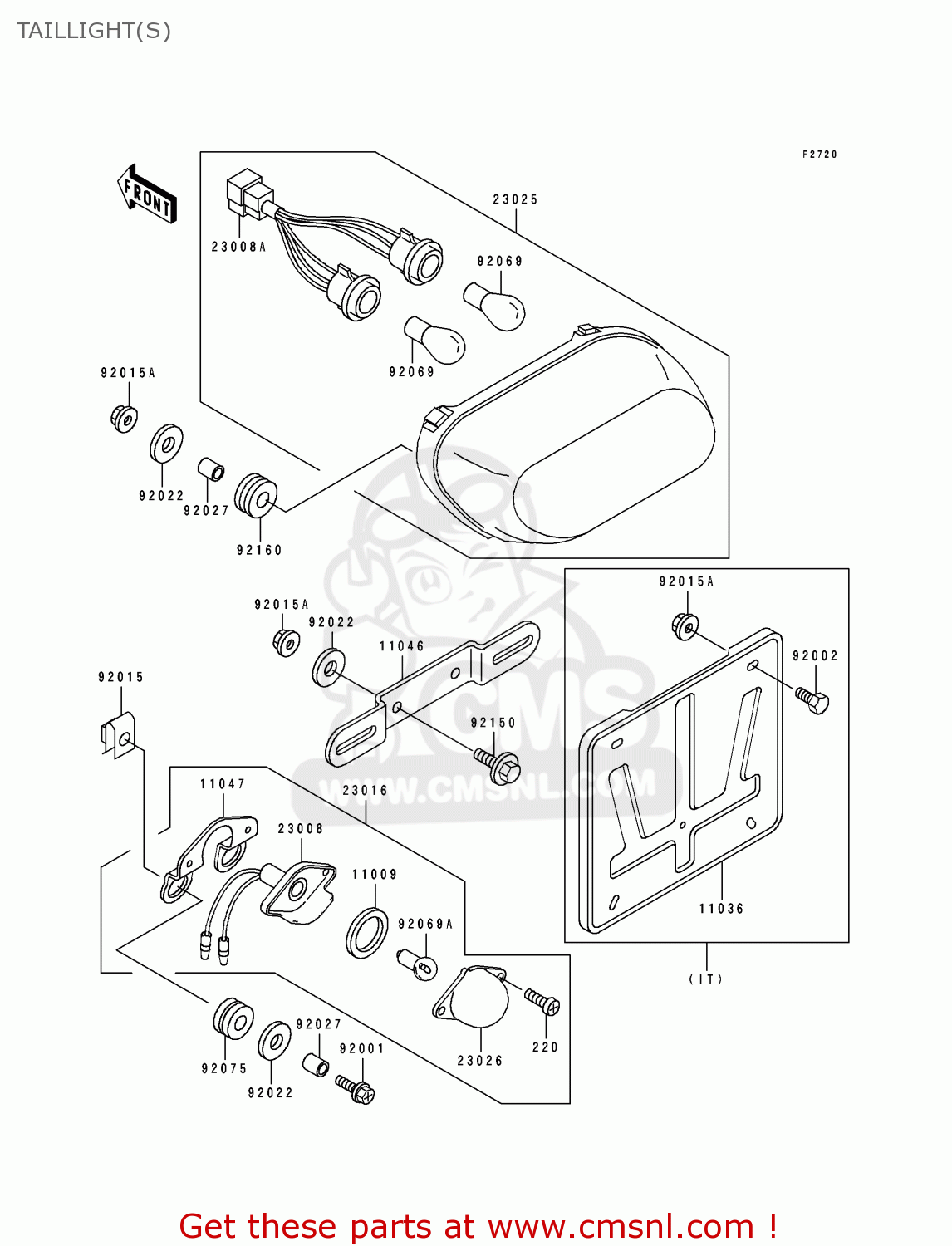

Taillight(s) diagram ZX1100D4 ZZR1100 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

220

220B0410
ref: 220

SCREW-PAN-CROS

€ 2.00

11009

110091372
ref: 11009

GASKET,LICENSE PLATE (NAS)

€ 3.00

11046

110461109
ref: 11046

BRACKET,LICENSE PLATE

€ 13.00

11047

110471889
ref: 11047

BRACKET,LICENSE PLATE

€ 11.50

23008

230081221
ref: 23008

SOCKET-ASSY,LICENSE P

€ 7.50

23008A

230081364
ref: 23008A

SOCKET-ASSY,TAIL LAMP

€ 32.50

23016

230161127
ref: 23016

LAMP-ASSY,LICENSE PLA

€ 44.00

23025

230251234
ref: 23025

LAMP-TAIL

€ 174.50

23026

230261054
ref: 23026

LENS,LICENSE PLATE LA

€ 7.00

92001

920011524
ref: 92001

BOLT, 6X25

€ 1.50

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92015A

920151367
ref: 92015A

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92069A

920691055
ref: 92069A

BULB,12V 5W

€ 4.00

92075

92075209
ref: 92075

DAMPER RUBBER

€ 3.00

92150

921501909
ref: 92150

BOLT

€ 3.00

92160

921601162
ref: 92160

DAMPER

€ 3.00
