Genuine ZX Kawasaki Parts delivered quickly!


IGNITION SWITCH

ZX1100D4 ZZR1100 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

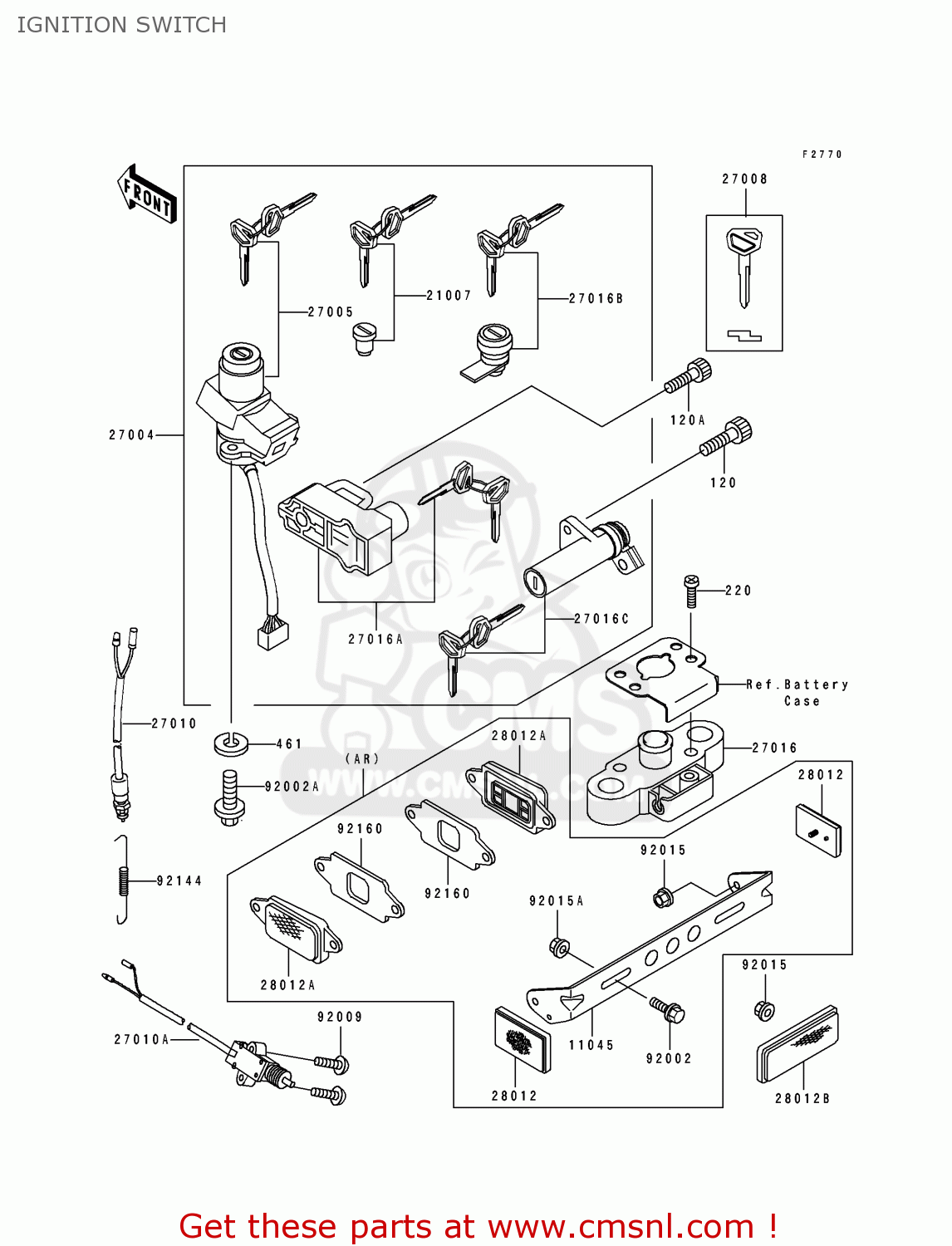

Ignition switch diagram ZX1100D4 ZZR1100 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

IGNITION SWITCH ZX1100D4 ZZR1100 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
IGNITION SWITCH ZX1100D4 ZZR1100 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
IGNITION SWITCH ZX1100D4 ZZR1100 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
120A
120S0616
ref: 120A
BOLT-SOCKET,6X16
120S0616
€ 1.00
220
220C0630
ref: 220
SCREW-PAN-CROS,6X30,B
220C0630
€ 1.50
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
11045
110451371
ref: 11045
AR
BRACKET,REFLECTOR
€ 8.00
21007
210075037
ref: 21007
ROTOR,LOCK,TANK CAP
210075037
€ 65.50
27004
270045453
ref: 27004
SWITCH-ASSY
270045453
€ 281.50
27005
270055102
ref: 27005
SWITCH-ASSY-IGNITION
270055102
€ 249.50
27008
270081173
ref: 27008
KEY-LOCK,BLANK
270081173
€ 13.00
27010
270101093
ref: 27010
SWITCH,BRAKE LAMP
270101093
€ 20.00
27010A
270101226
ref: 27010A
SWITCH,SIDE STAND
270101226
€ 47.50
27016
270161098
ref: 27016
LOCK-ASSY,SEAT STRIKE
270161098
€ 72.50
27016A
270165203
ref: 27016A
LOCK-ASSY,HELMET
270165203
€ 54.00
27016B
270165204
ref: 27016B
LOCK-ASSY,TOOL BOX
270165204
€ 48.00
27016C
270165205
ref: 27016C
LOCK-ASSY,SEAT
270165205
€ 59.50
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121068
ref: 28012A
AR
REFLECTOR-REFLEX,FR,S
280121068
€ 34.00
28012B
280121077
ref: 28012B
REFLECTOR-REFLEX
280121077
€ 16.00
92002
920021132
ref: 92002
AR
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
BOLT
920021333
€ 1.50
92009
920091459
ref: 92009
SCREW
920091459
€ 2.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92015
920151259
ref: 92015
EUFGFRGRNLNRSDSPSTUK
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151367
ref: 92015A
AR
NUT,FLANGED,6MM
920151367
€ 0.50
92144
921441283
ref: 92144
SPRING,REAR BRAKE SWI
921441283
€ 3.50
92160
921601192
ref: 92160
AR
DAMPER,REFLECTOR
921601192
€ 6.00
