SEAT

ZX1100D4 ZZR1100 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

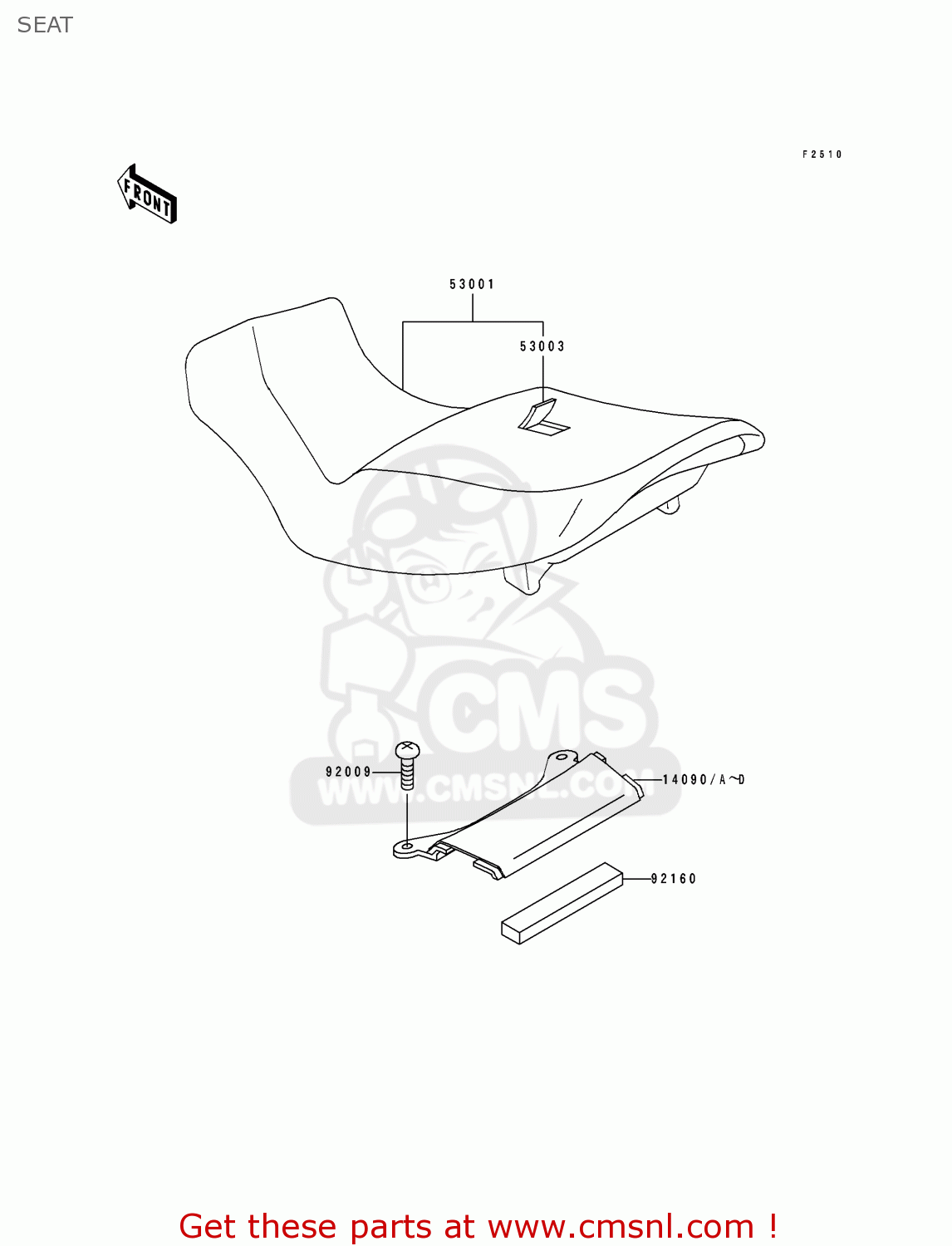

Seat diagram ZX1100D4 ZZR1100 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

14090

140901280DS
ref: 14090
AREUFGFRGRNLNRSPSTUK

COVER,TAIL,L.W.GREEN

€ 25.50

14090C

140901280L1
ref: 14090C
EUFGFRGRNLNRSDUK

COVER,TAIL,C.C.RED

€ 25.50

53001

530011690MA
ref: 53001

SEAT-ASSY,DUAL,BLACK

€ 636.00

53003

530031271MA
ref: 53003

LEATHER,SEAT,BLACK

€ 170.50

92009

920091181
ref: 92009

SCREW,6X18

€ 2.00

92160

921601430
ref: 92160

DAMPER

€ 3.00
