SEAT

ZX1100D3 ZZR1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

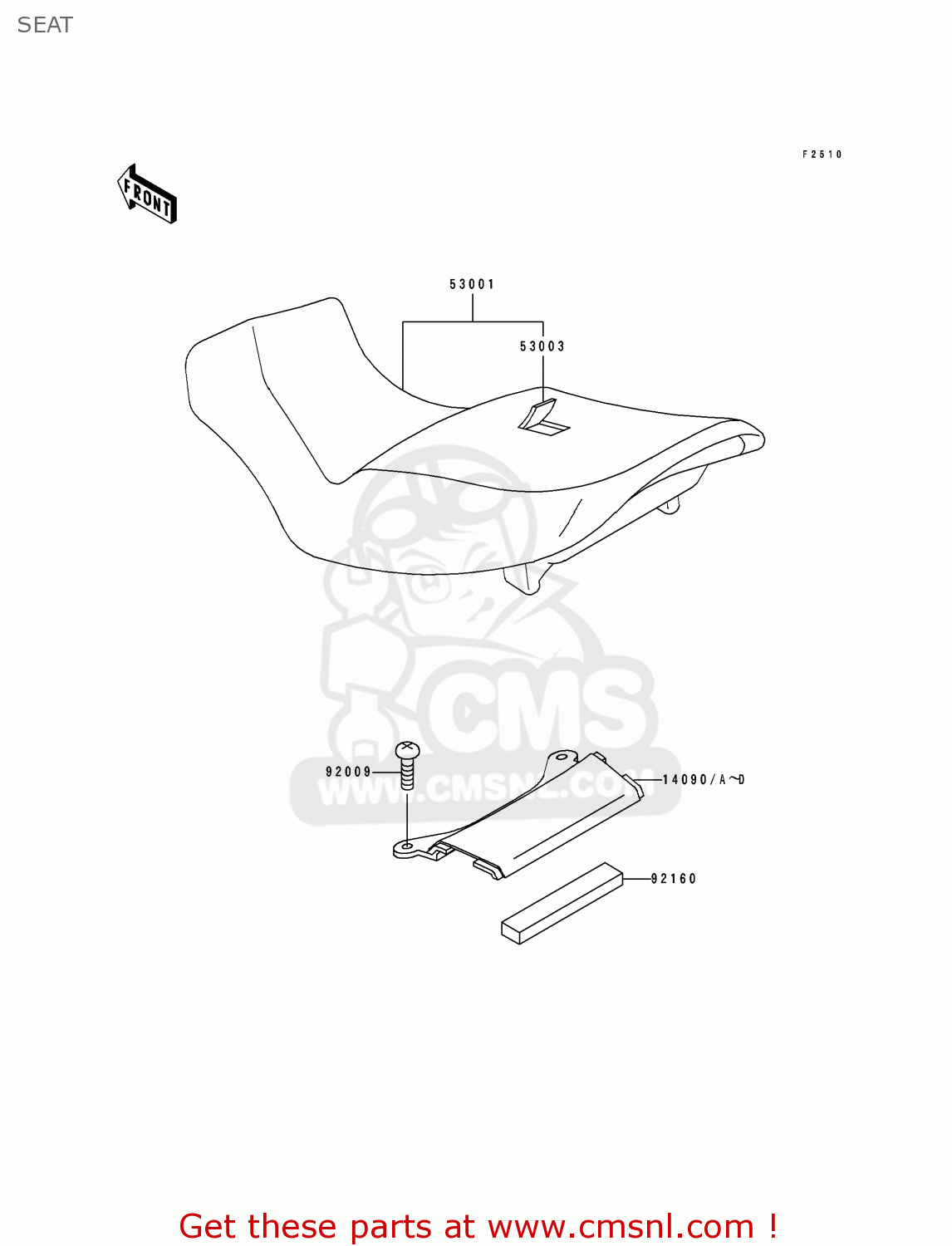

Seat diagram ZX1100D3 ZZR1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

14090A

140901280GW
ref: 14090A
EUFGGRITNRSPST

COVER,TAIL,M.S.BLUE

€ 24.00

14090B

140901280H3
ref: 14090B
AREUFGFRGRNLSDSTUK

COVER,TAIL,C.W.RED

€ 25.50

14090D

14090128020
ref: 14090D
AREUFRGRITNLNRSDSPUK

COVER,TAIL,P.P.BLACK

€ 25.00

53001

530011690MA
ref: 53001

SEAT-ASSY,DUAL,BLACK

€ 636.00

53003

530031271MA
ref: 53003

LEATHER,SEAT,BLACK

€ 170.50

92009

920091181
ref: 92009

SCREW,6X18

€ 2.00

92160

921601430
ref: 92160

DAMPER

€ 3.00
