Genuine ZX Kawasaki Parts delivered quickly!


COWLING(ZX1100-D3)

ZX1100D3 ZZR1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

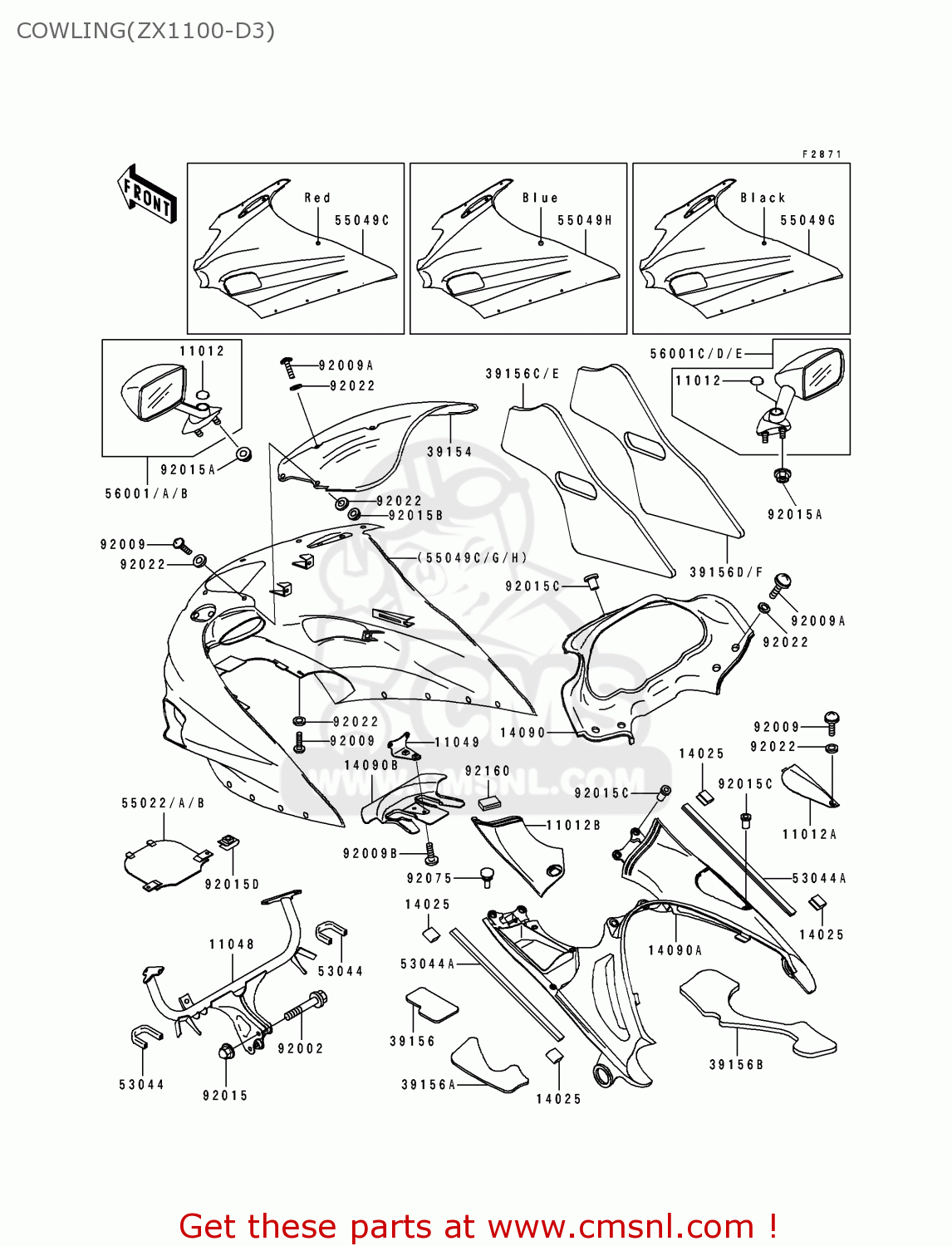

Cowling(zx1100-d3) diagram ZX1100D3 ZZR1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

COWLING(ZX1100-D3) ZX1100D3 ZZR1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
COWLING(ZX1100-D3) ZX1100D3 ZZR1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
COWLING(ZX1100-D3) ZX1100D3 ZZR1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
1101217516Z
ref: 11012
CAP,MIRROR,BLACK
1101217516Z
€ 2.50
11012A
11012187611
ref: 11012A
CAP,INNER COWLING,RH,
11012187611
€ 42.00
11012B
11012187711
ref: 11012B
CAP,INNER COWLING,LH,
11012187711
€ 42.00
11048
110481884
ref: 11048
BRACKET,UPP COWLING
110481884
€ 243.50
11049
110491070
ref: 11049
BRACKET
€ 22.50
14025
140251756
ref: 14025
COVER,TRIM END
140251756
€ 4.50
14090
14090141811
ref: 14090
COVER,INNER COWLING,F
14090141811
€ 108.50
14090A
14090142711
ref: 14090A
COVER,INNER COWLING,R
14090142711
€ 113.00
14090B
140901565
ref: 14090B
COVER,HOSE&CABLE
€ 16.50
39154
391541122
ref: 39154
WINDSHIELD
391541122
€ 184.50
39156
391561329
ref: 39156
PAD,INNER COWLING,LH,
391561329
€ 6.00
39156A
391561330
ref: 39156A
PAD,INNER COWLING,LH,
391561330
€ 8.00
39156B
391561331
ref: 39156B
PAD,INNER COWLING,RH
391561331
€ 8.00
39156C
391561332
ref: 39156C
ARSDST
PAD,UPP COWLING,LH
391561332
€ 12.00
39156D
391561333
ref: 39156D
ARSDST
PAD,UPP COWLING,RH
391561333
€ 12.00
39156E
391561451
ref: 39156E
EUFGFRGRITNLNRSPUK
PAD,UPP COWLING,LH
391561451
€ 12.00
39156F
391561452
ref: 39156F
EUFGFRGRITNLNRSPUK
PAD,UPP COWLING,RH
391561452
€ 12.00
53044
530441200
ref: 53044
TRIM-HEADLAMP COVER
530441200
€ 5.00
53044A
530441255
ref: 53044A
TRIM,L=385
530441255
€ 16.50
55022
550221074GW
ref: 55022
EUFGGRITNRSPST
COVER-HEAD LAMP,M.S.B
€ 95.50
55022A
550221074H3
ref: 55022A
AREUFGFRGRNLSDSTUK
COVER-HEAD LAMP,C.W.R
€ 108.00
55022B
55022107420
ref: 55022B
AREUFRGRITNLNRSDSPUK
COVER-HEAD LAMP,P.P.B
55022107420
€ 85.00
55049C
550495182H3
ref: 55049C
AREUFGFRGRNLSDSTUK
COWLING.,UPP,C.W.RED
€ 788.50
55049G
55049532220
ref: 55049G
AREUFRGRITNLNRSDSPUK
COWLING.,UPP,P.P.BLAC
€ 788.50
55049H
550495380GW
ref: 55049H
EUFGGRITNRSPST
COWLING.,UPP,M.S.BLUE
€ 788.50
56001
560011390GW
ref: 56001
EUFGGRITNRSPST
MIRROR-ASSY,LH,M.S.BL
€ 123.00
56001A
560011390H3
ref: 56001A
AREUFGFRGRNLSDSTUK
MIRROR-ASSY,LH,C.W.RE
560011390H3
€ 130.00
56001B
56001139020
ref: 56001B
AREUFRGRITNLNRSDSPUK
MIRROR-ASSY,LH,P.P.BL
56001139020
€ 111.00
56001C
560011391GW
ref: 56001C
EUFGGRITNRSPST
MIRROR-ASSY,RH,M.S.BL
€ 119.00
56001D
560011391H3
ref: 56001D
AREUFGFRGRNLSDSTUK
MIRROR-ASSY,RH,C.W.RE
€ 136.00
56001E
56001139120
ref: 56001E
AREUFRGRITNLNRSDSPUK
MIRROR-ASSY,RH,P.P.BL
56001139120
€ 111.00
92002
920021198
ref: 92002
BOLT,8X35
920021198
€ 3.00
92009
920091654
ref: 92009
SCREW
920091654
€ 0.50
92009A
920091657
ref: 92009A
SCREW
920091657
€ 2.50
92009B
920091661
ref: 92009B
SCREW
920091661
€ 2.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92015A
920151233
ref: 92015A
NUT,FLANGED,6MM
920151233
€ 3.50
92015B
920151263
ref: 92015B
NUT,LOCK 5MM
920151263
€ 4.50
92015C
920151757A
ref: 92015C
NUT,5MM
920151757A
€ 5.00
92015D
920151798
ref: 92015D
NUT
920151798
€ 4.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92075
920751808
ref: 92075
DAMPER,6X10X15
920751808
€ 1.50
92160
921601190
ref: 92160
DAMPER
921601190
€ 2.50
