CYLINDER/PISTON(S)

ZX1100D3 ZZR1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

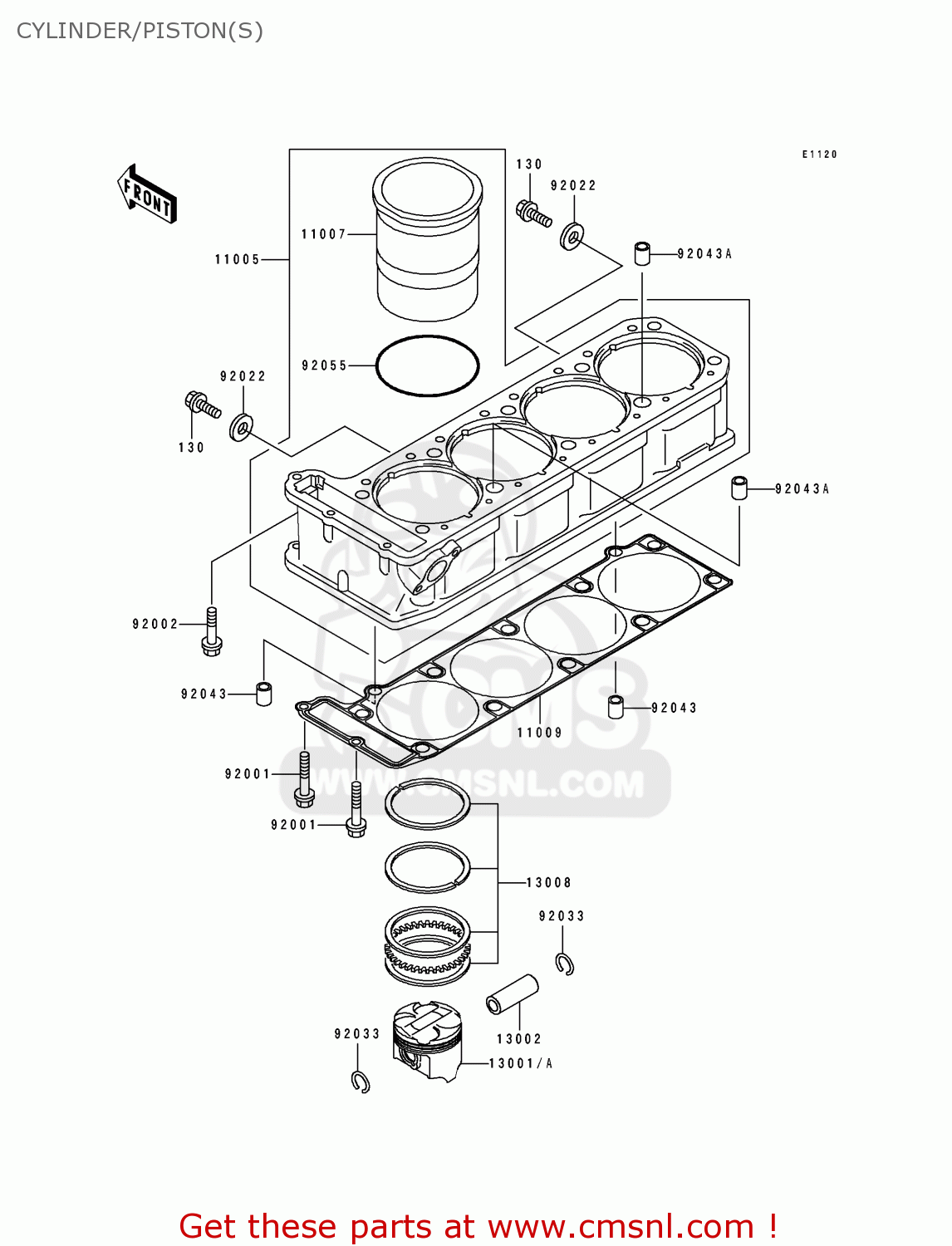

Cylinder/piston(s) diagram ZX1100D3 ZZR1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

11005

110051615
ref: 11005

CYLINDER-ENGINE

€ 1,416.50

11007

110071114
ref: 11007

LINER-CYLINDER

€ 128.50

11009

110091847
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 24.50

13001

130011397
ref: 13001
AREUFGGRITNLNRSDSPST

PISTON-ENGINE

€ 102.50

13001A

130011398
ref: 13001A
FR

PISTON-ENGINE

€ 73.50

13002

130021058
ref: 13002

PIN-PISTON

€ 17.00

13008

130081152
ref: 13008

RING-SET-PISTON

€ 63.50

92001

920011899
ref: 92001

BOLT,6X38

€ 2.50

92002

920021138
ref: 92002

BOLT,6X30

€ 3.00

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92033

920331099
ref: 92033

RING-SNAP,18MM

€ 0.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92043A

920431279
ref: 92043A

PIN,11.5X14X14

€ 3.00

92055

920551465
ref: 92055

RING-O,82.6X2.4

€ 4.00

CYLINDER/PISTON(S)

all assemblies
