SWING ARM
ZX1100C4 ZX11 1993 USA CALIFORNIA CANADA

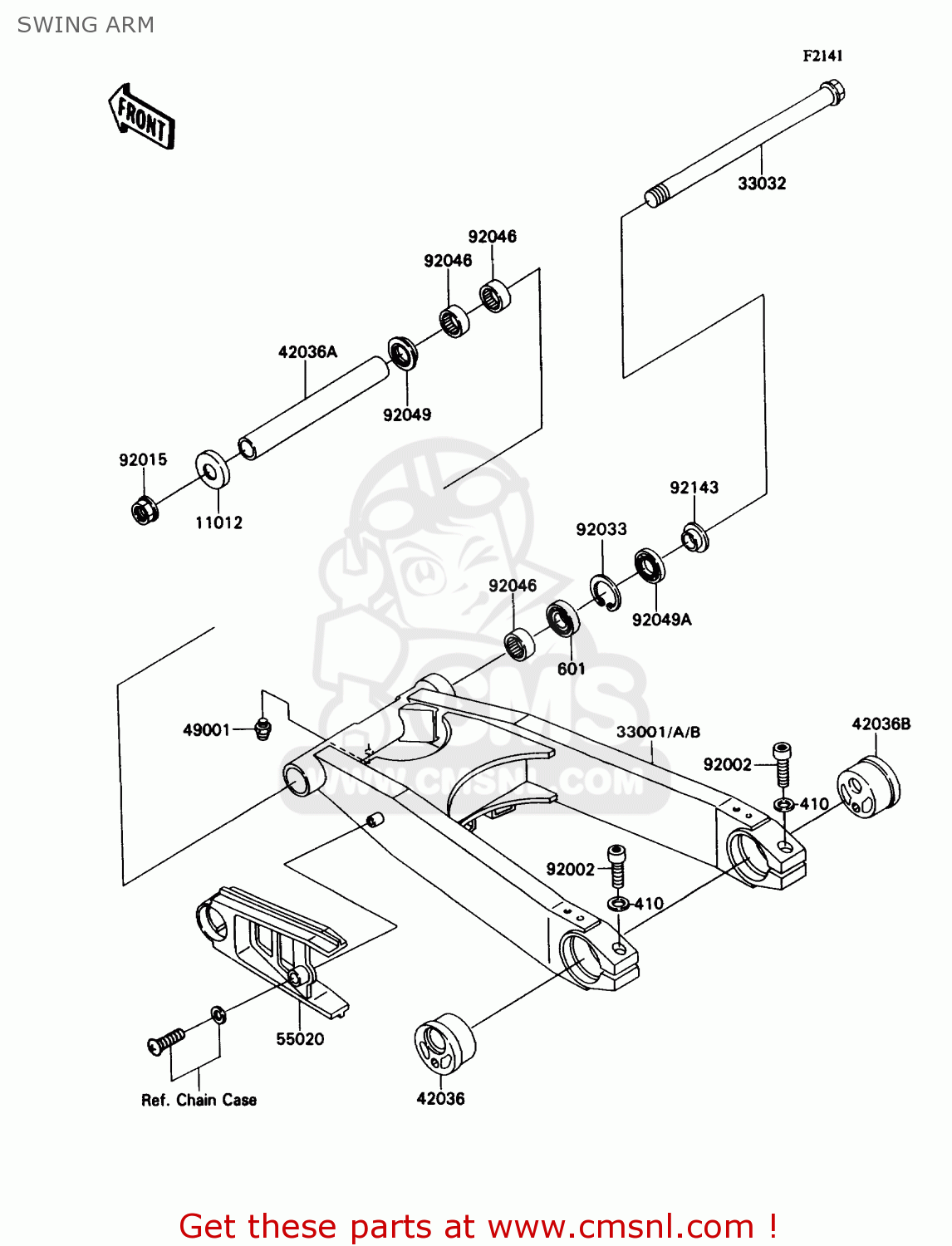

Swing arm diagram ZX1100C4 ZX11 1993 USA CALIFORNIA CANADA
SWING ARM ZX1100C4 ZX11 1993 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
410
410E1000
ref: 410
W-PLAIN-S
€ 0.50
601
601A6004
ref: 601
BEARING-BALL,#6004
€ 13.00
11012
110121658
ref: 11012
CAP
€ 5.50
33001B
33001135110
ref: 33001B
ARM-COMP-SWING,BLACK
€ 871.00
33032
330321157
ref: 33032
SHAFT-SWING ARM
€ 51.50
42036
420361153
ref: 42036
SLEEVE,REAR AXLE,LH
€ 82.50
42036A
420361264
ref: 42036A
SLEEVE,SWING ARM,L=23
€ 50.50
42036B
420361265
ref: 42036B
SLEEVE,REAR AXLE,RH
€ 82.50
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
€ 2.00
55020
550201365
ref: 55020
GUARD,CHAIN
€ 36.00
92002
920021452
ref: 92002
BOLT
€ 4.00
92015
920151724
ref: 92015
NUT,FLANGED,20MM
€ 10.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92046
920461111
ref: 92046
BEARING-NEEDLE,BM2817
€ 21.50
92049
920491181
ref: 92049
SEAL-OIL
€ 7.50
92049A
920491314
ref: 92049A
SEAL-OIL,MHSA25 42 6
€ 9.00
92143
921431227
ref: 92143
COLLAR,SWING ARM,L=12
€ 7.50
