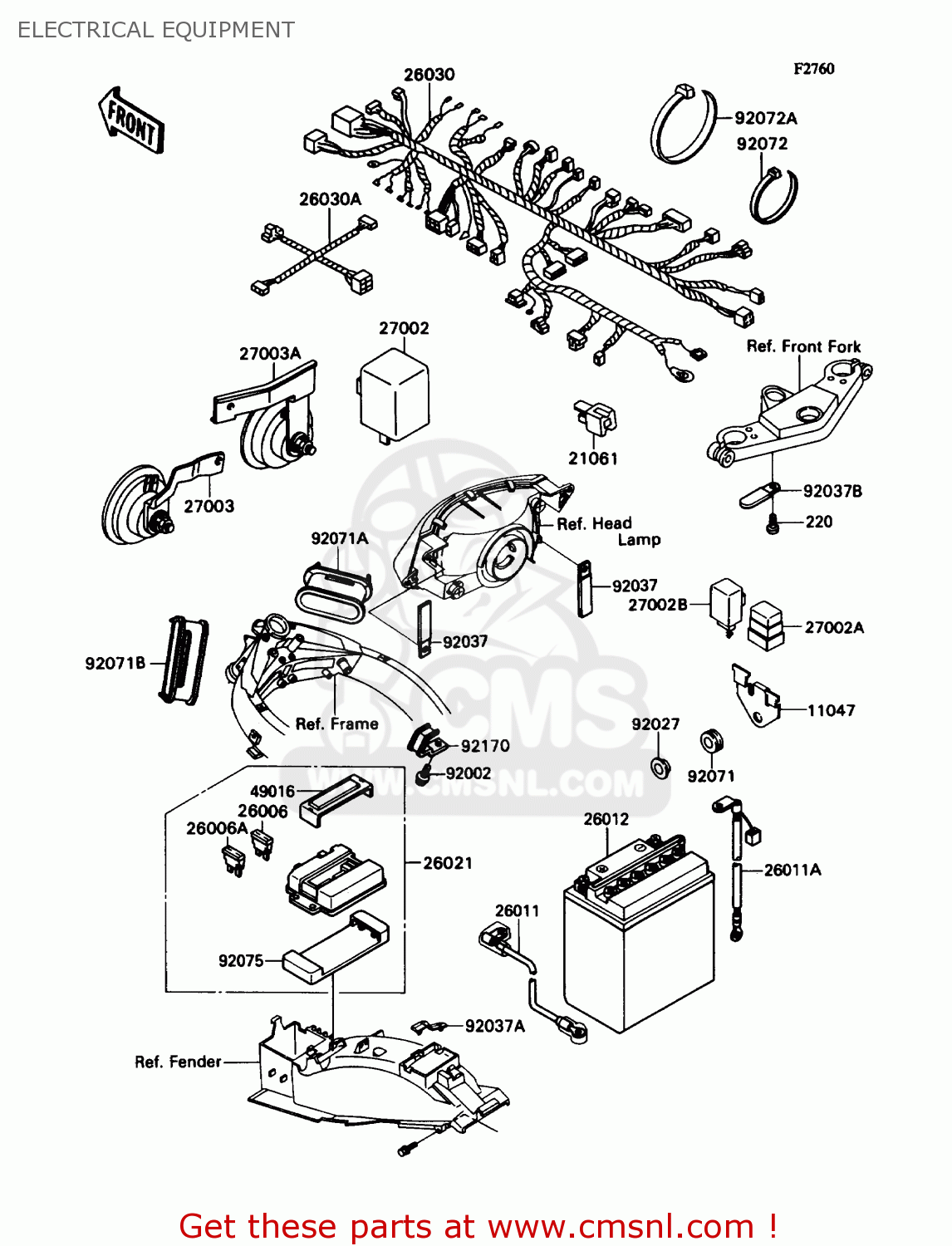

ELECTRICAL EQUIPMENT

ref

part #

description

quantity

220

220C0510
ref: 220

SCREW-PAN-CROS

€ 2.50

11047

110471111
ref: 11047

BRACKET,RELAY

€ 8.00

21061

210611003
ref: 21061

RECTIFIER

€ 25.00

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111464
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 19.50

26011A

260111477
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 18.50

26012

260121224
ref: 26012

BATTERY,12V 15AH,FB14

€ 88.00

26021

260211077
ref: 26021

UNCTION BOX

€ 159.00

26030

260301005
ref: 26030

HARNESS,MAIN

€ 211.50

26030A

260301006
ref: 26030A

HARNESS,FRONT

€ 44.50

27002

270021060
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 65.50

27002A

270021072
ref: 27002A

RELAY-ASSY,FUEL SENSO

€ 40.00

27002B

270021073
ref: 27002B

RELAY-ASSY,FUEL LAMP

€ 35.00

27003

270031320
ref: 27003

HORN,LH

€ 58.50

27003A

270031332
ref: 27003A

HORN,RH

€ 42.50

49016

490161125
ref: 49016

COVER-SEAL,FUSE

€ 6.00

92002

920021628
ref: 92002
CA

BOLT,6X10

€ 3.00

92002

920021628
ref: 92002
US

BOLT,6X10

€ 3.00

92027

92027153
ref: 92027

COLLAR

€ 4.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371163
ref: 92037A

CLAMP,HARNESS,REAR

€ 4.50

92037B

920371539
ref: 92037B

CLAMP,L=45

€ 3.00

92071

920711115
ref: 92071

GROMMET,RESERVOIR TAN

€ 3.50

92071A

920711170
ref: 92071A

GROMMET,HARNESS,RH

€ 12.00

92071B

920711180
ref: 92071B

GROMMET,HARNESS,LH

€ 13.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92072A

920721197
ref: 92072A

BAND

€ 5.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

92170

921701024
ref: 92170

CLAMP,HARNESS

€ 3.00

all assemblies
