Genuine ZX Kawasaki Parts delivered quickly!


ENGINE COVER

ZX1100C4 ZX11 1993 USA CALIFORNIA CANADA

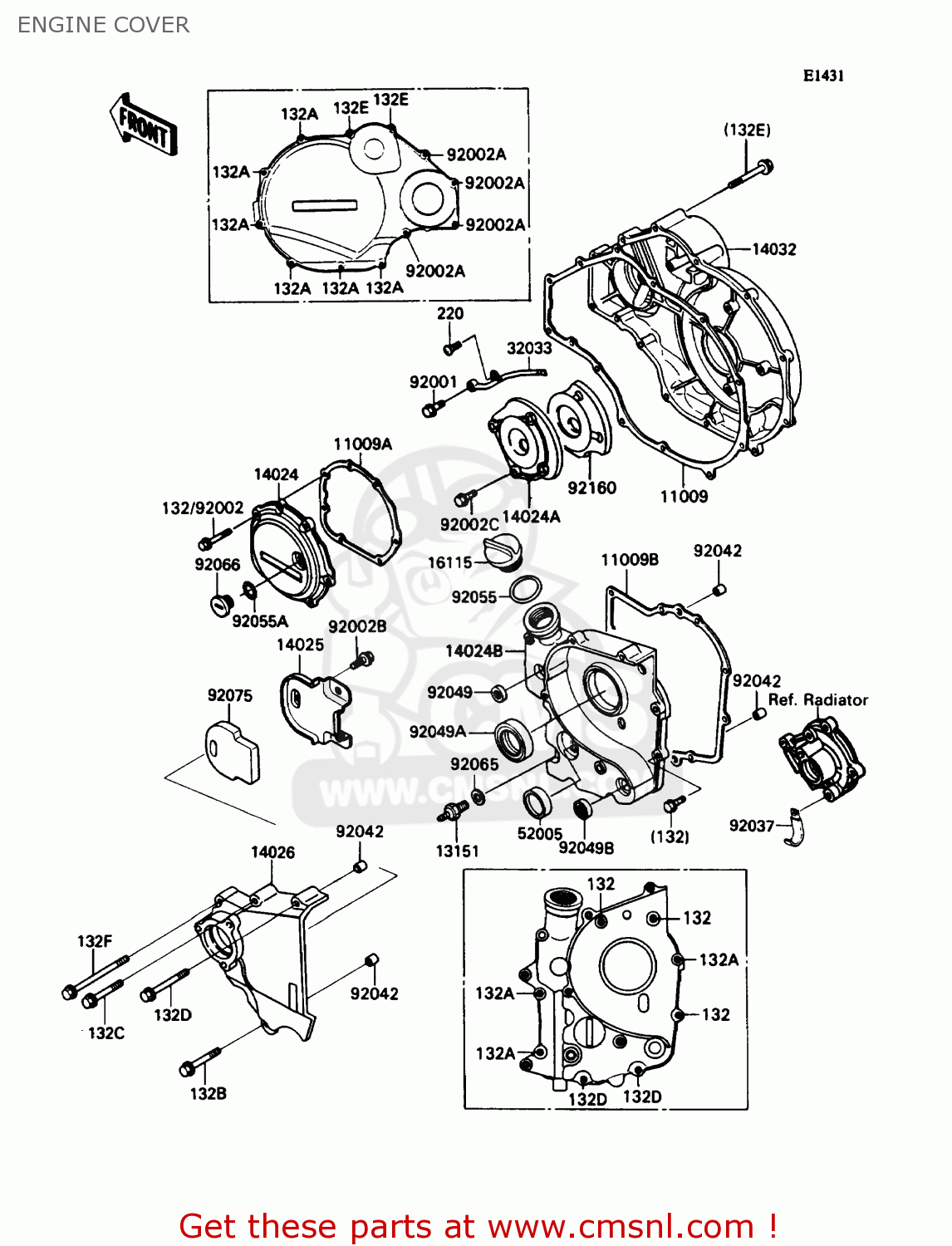

Engine cover diagram ZX1100C4 ZX11 1993 USA CALIFORNIA CANADA

ENGINE COVER ZX1100C4 ZX11 1993 USA CALIFORNIA CANADA
ENGINE COVER ZX1100C4 ZX11 1993 USA CALIFORNIA CANADA
ENGINE COVER ZX1100C4 ZX11 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
132J0620
€ 2.00
132A
132J0625
ref: 132A
BOLT-FLANGED-SMALL
132J0625
€ 2.50
132B
132J0635
ref: 132B
BOLT-FLANGED-SMALL
132J0635
€ 2.50
132C
132J0640
ref: 132C
BOLT-FLANGED-SMALL
132J0640
€ 3.00
132D
132J0650
ref: 132D
BOLT-FLANGED-SMALL
132J0650
€ 3.00
132E
132J0655
ref: 132E
BOLT-FLANGED-SMALL
132J0655
€ 3.00
132F
132J0680
ref: 132F
BOLT-FLANGED-SMALL
132J0680
€ 4.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
220B0510
€ 0.50
11009
110091860
ref: 11009
GASKET,CLUTCH COVER (NAS)
110091860
€ 9.50
11009A
110091863
ref: 11009A
GASKET,COVER,LH (NAS)
110091863
€ 6.50
11009B
110091982
ref: 11009B
GASKET (NAS)
110091982
€ 12.00
13151
131511007
ref: 13151
SWITCH,NEUTRAL
131511007
€ 9.00
14024
140241721
ref: 14024
COVER,PULSING
140241721
€ 111.50
14024A
140241925
ref: 14024A
COVER,SOUND ARRESTER
140241925
€ 12.00
14024B
140241956
ref: 14024B
COVER,TRANSMISSION
140241956
€ 100.50
14025
140251979
ref: 14025
COVER,SOUND ARRESTER
140251979
€ 14.50
14026
140261157
ref: 14026
COVER-CHAIN
140261157
€ 98.50
14032
140321194
ref: 14032
COVER-CLUTCH
140321194
€ 338.50
16115
161151009
ref: 16115
CAP-OIL FILLER
161151009
€ 10.00
32033
320331204
ref: 32033
PIPE,CLUTCH COVER
320331204
€ 20.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
520051057
€ 17.50
92001
920011855
ref: 92001
BOLT,BANJO,8X20
920011855
€ 5.50
92002
920021343
ref: 92002
BOLT,6X20
920021343
€ 4.00
92002A
920021345
ref: 92002A
BOLT,6X40
920021345
€ 4.50
92002B
920021449
ref: 92002B
BOLT,6X10
920021449
€ 2.50
92002C
920021541
ref: 92002C
BOLT,6X10
920021541
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
920491017
€ 6.50
92049A
920491070
ref: 92049A
SEAL-OIL,AE2343F0
920491070
€ 11.50
92049B
920491186
ref: 92049B
SEAL-OIL,TB13205
920491186
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
920551146
ref: 92055A
RING-O
920551146
€ 5.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
92066
920661163
ref: 92066
PLUG,COVER,LH
920661163
€ 10.00
92075
920751666
ref: 92075
DAMPER,CHAIN
920751666
€ 12.50
92160
921601209
ref: 92160
DAMPER,SOUND ARRESTER
921601209
€ 90.00
