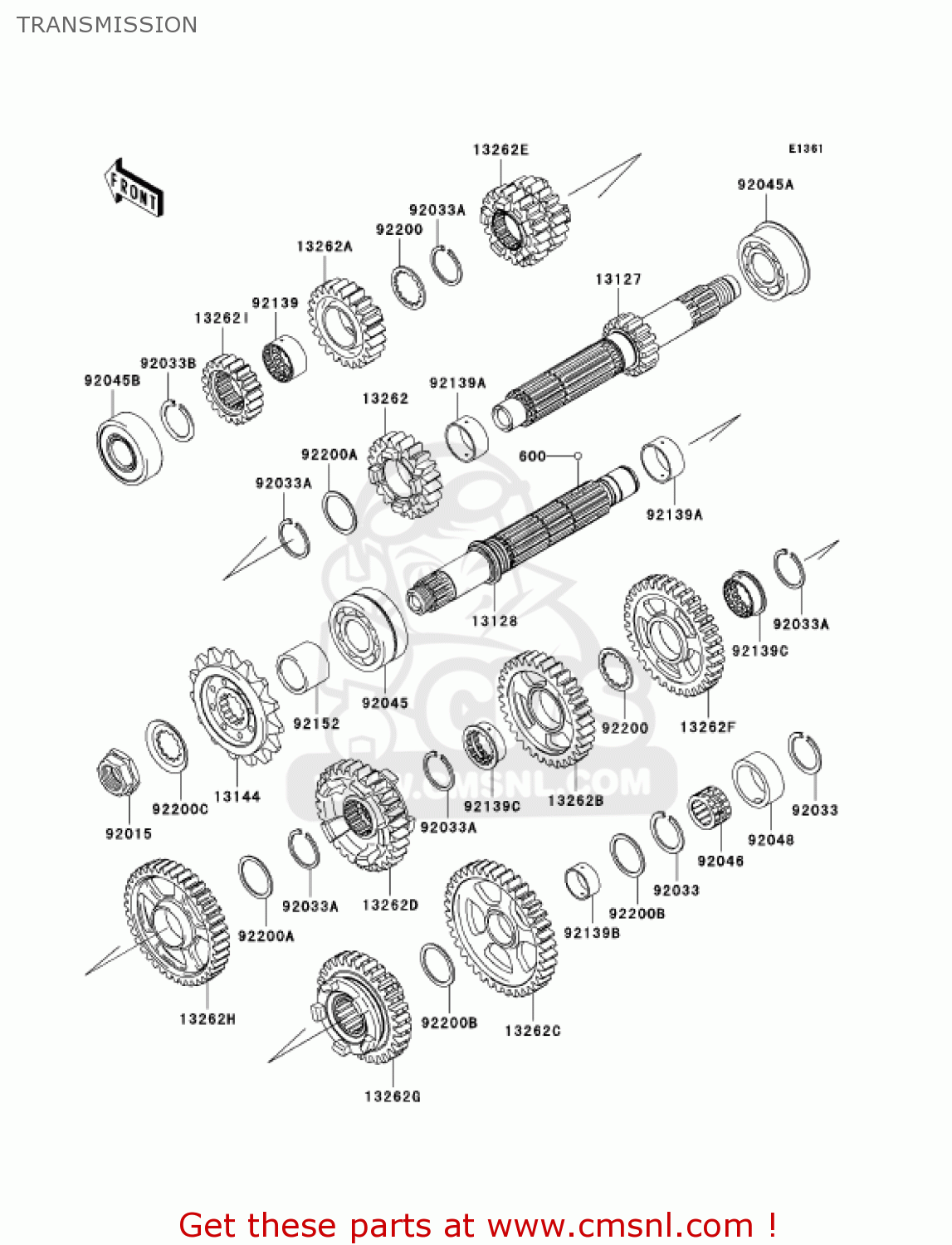

TRANSMISSION

ref

part #

description

quantity

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131270027
ref: 13127

SHAFT-TRANSMISSION IN

€ 240.00

13128

131280019
ref: 13128

SHAFT-TRANSMISSION OU

€ 201.00

13144

131440004
ref: 13144

SPROCKET-OUTPUT,17T,#

€ 42.50

13262

132620135
ref: 13262

GEAR,INPUT 5TH,21T

€ 100.00

13262A

132620136
ref: 13262A

GEAR,INPUT 6TH,23T

€ 170.50

13262B

132620166
ref: 13262B

GEAR,OUTPUT 4TH,32T

€ 170.50

13262C

132620170
ref: 13262C

GEAR,OUTPUT LOW,38T

€ 170.50

13262D

132620171
ref: 13262D

GEAR,OUTPUT 6TH,30T

€ 153.00

13262E

132620288
ref: 13262E

GEAR,INPUT 3RD&4TH,19

€ 176.00

13262F

132620291
ref: 13262F

GEAR,OUTPUT 3RD,33T

€ 165.50

13262G

132620293
ref: 13262G

GEAR,OUTPUT 5TH,29T

€ 127.50

13262H

132620349
ref: 13262H

GEAR,OUTPUT 2ND,39T

€ 157.50

13262I

132620350
ref: 13262I

GEAR,INPUT 2ND,19T

€ 176.00

92015

920151963
ref: 92015

NUT,20MM

€ 10.50

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

920331037
ref: 92033A

SNAP RING,25.9X1.2T

€ 3.00

92033B

920331249
ref: 92033B

RING-SNAP,T=1.5

€ 3.00

92045

920450003
ref: 92045

BEARING-BALL,DAC2557N

€ 118.00

92045A

920450014
ref: 92045A

BEARING-BALL,5205N6RS

€ 80.00

92045B

920450048
ref: 92045B

BEARING-BALL,DG2152RD

€ 44.00

92046

920461291
ref: 92046

BEARING-NEEDLE

€ 20.50

92048

920481053
ref: 92048

RACE,30X38X15

€ 27.50

92139

921390036
ref: 92139

BUSHING,GEAR,6TH IN

€ 19.00

92139A

921390037
ref: 92139A

BUSHING,GEAR,5TH IN&2

€ 10.50

92139B

921390038
ref: 92139B

BUSHING,GEAR,LOW OUT

€ 9.50

92139C

921390066
ref: 92139C

BUSHING,GEAR,3RD&4TH

€ 14.00

92152

921520153
ref: 92152

COLLAR

€ 12.00

92200

922000050
ref: 92200

WASHER,28.3X34.0X1.6

€ 3.00

92200A

922000051
ref: 92200A

WASHER,28.1X34.0X1.2

€ 3.00

92200B

922000138
ref: 92200B

WASHER

€ 2.50

92200C

922001065
ref: 92200C

WASHER

€ 4.50

all assemblies
