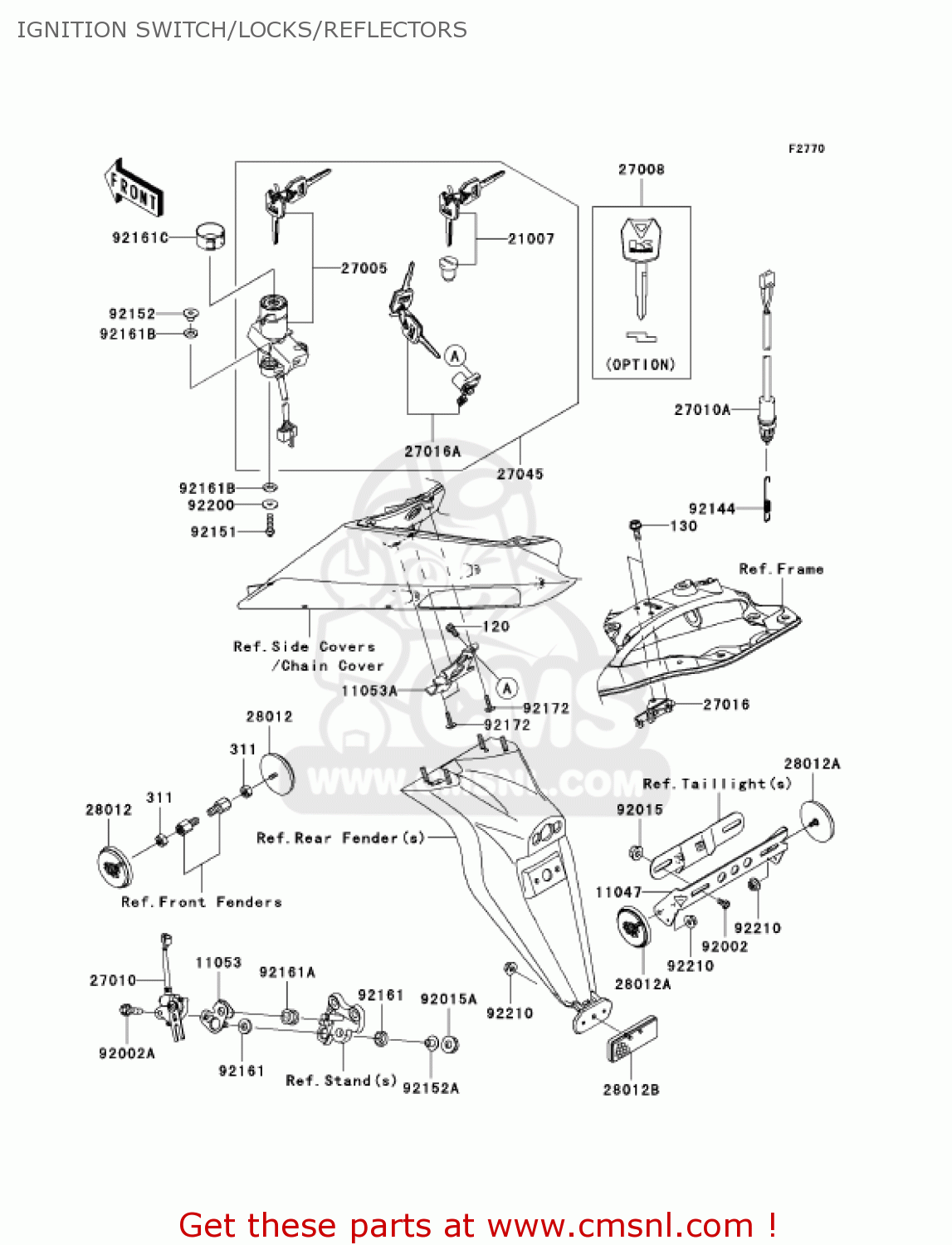

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

130

130L0616
ref: 130

BOLT-FLANGED

€ 1.50

311

311C0500
ref: 311

NUT-HEX

€ 0.50

11047

110471470
ref: 11047

BRACKET,REFLECTOR

€ 16.00

11053

110530723
ref: 11053

BRACKET,SIDE STAND SW

€ 7.50

11053A

110531856
ref: 11053A

BRACKET,SEAT LOCK

€ 24.00

21007

210075057
ref: 21007

ROTOR,LOCK,TANK CAP

€ 68.50

27005

270055137
ref: 27005

SWITCH-ASSY-IGNITION

€ 236.00

27008

270080030
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 13.50

27010

270101455
ref: 27010

SWITCH,SIDE STAND

€ 99.50

27010A

270101486
ref: 27010A

SWITCH,REAR BRAKE

€ 25.50

27016

270161115
ref: 27016

LOCK-ASSY,SEAT STRIKE

€ 27.00

27016A

270165309
ref: 27016A

LOCK-ASSY,SEAT

€ 79.00

27045

270455336
ref: 27045

SWITCH-ASSY

€ 489.00

28012

280120001
ref: 28012

REFLECTOR-REFLEX,FR,S

€ 17.00

28012A

280120002
ref: 28012A

REFLECTOR,RED (E4 023

€ 8.00

28012B

280121077
ref: 28012B

REFLECTOR-REFLEX

€ 16.00

92002

920021132
ref: 92002

BOLT,6X12

€ 2.50

92002A

920021582
ref: 92002A

BOLT,6X25

€ 3.00

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151386
ref: 92015A

NUT,6MM

€ 3.00

92144

921441139
ref: 92144

SPRING,BRAKE LAM P SW

€ 10.50

92151

921511946
ref: 92151

BOLT,TORX,6X22

€ 2.50

92152

921520352
ref: 92152

COLLAR

€ 4.00

92152A

921521074
ref: 92152A

COLLAR

€ 4.00

92161

921610117
ref: 92161

DAMPER

€ 2.00

92161A

921610118
ref: 92161A

DAMPER

€ 2.00

92161B

921610240
ref: 92161B

DAMPER

€ 1.50

92161C

921610257
ref: 92161C

DAMPER,IGINITION SWIT

€ 3.50

92172

921720175
ref: 92172

SCREW,TAPPING,5X16

€ 1.00

92200

922000212
ref: 92200

WASHER,6X20X1.6

€ 2.00

92210

922100007
ref: 92210

NUT,FLANGED,5MM

€ 2.00
