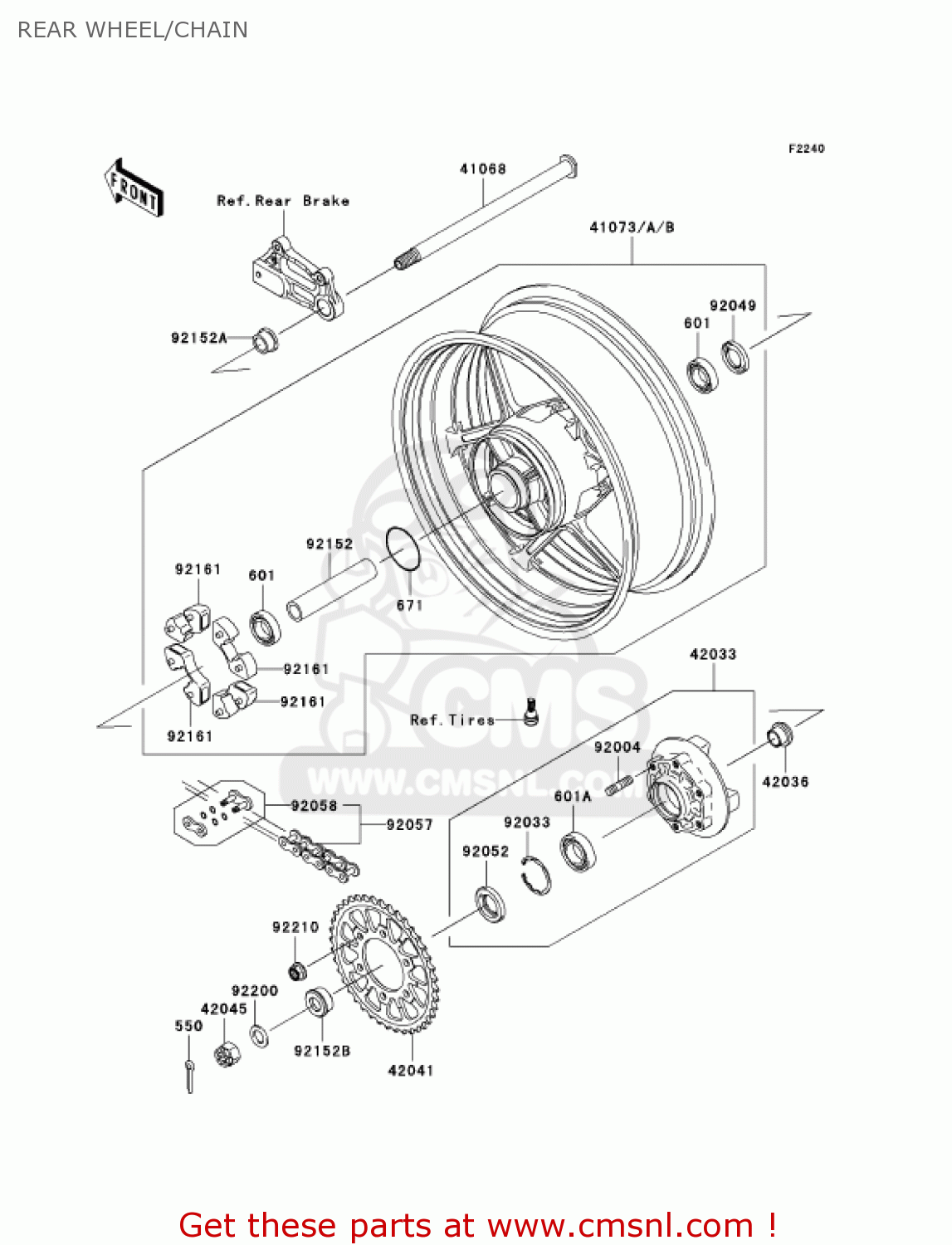

REAR WHEEL/CHAIN

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6204UU
ref: 601

BEARING-BALL,6204UUC3

€ 28.00

601A

601B6205UU
ref: 601A

BEARING-BALL

€ 27.50

671

671B2560
ref: 671

O RING,60MM

€ 1.50

41068

410680040
ref: 41068

AXLE,RR

€ 92.00

41073A

41073008110I
ref: 41073A

WHEEL-ASSY,RR,C.F.RED

€ 555.50

42033

420330003
ref: 42033

COUPLING-ASSY,RR HUB

€ 217.00

42036

420361251
ref: 42036

SLEEVE,RR HUB,L=23

€ 18.00

42041

420410043
ref: 42041

SPROCKET-HUB,40T

€ 80.50

42045

42045018
ref: 42045

NUT,18MM

€ 7.50

92004

920041275
ref: 92004

STUD

€ 6.50

92033

920331043
ref: 92033

RING,SNAP,56.2M/M

€ 6.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057

920570104
ref: 92057

CHAIN,DRIVE,RK525MFOX

€ 197.00

92058

920580005
ref: 92058

JOINT-CHAIN,DRIVE

€ 9.50

92152

921520088
ref: 92152

COLLAR,RR HUB,L=144.5

€ 38.00

92152A

921520105
ref: 92152A

COLLAR,RR AXLE,RH,L=1

€ 15.00

92152B

921520206
ref: 92152B

COLLAR,RR AXLE,LH,L=1

€ 19.50

92161

921610342
ref: 92161

DAMPER,SHOCK,RR HUB

€ 19.00

92200

922001489
ref: 92200

WASHER

€ 1.50

92210

922100276
ref: 92210

NUT,LOCK,FLANGED,10MM

€ 1.50
