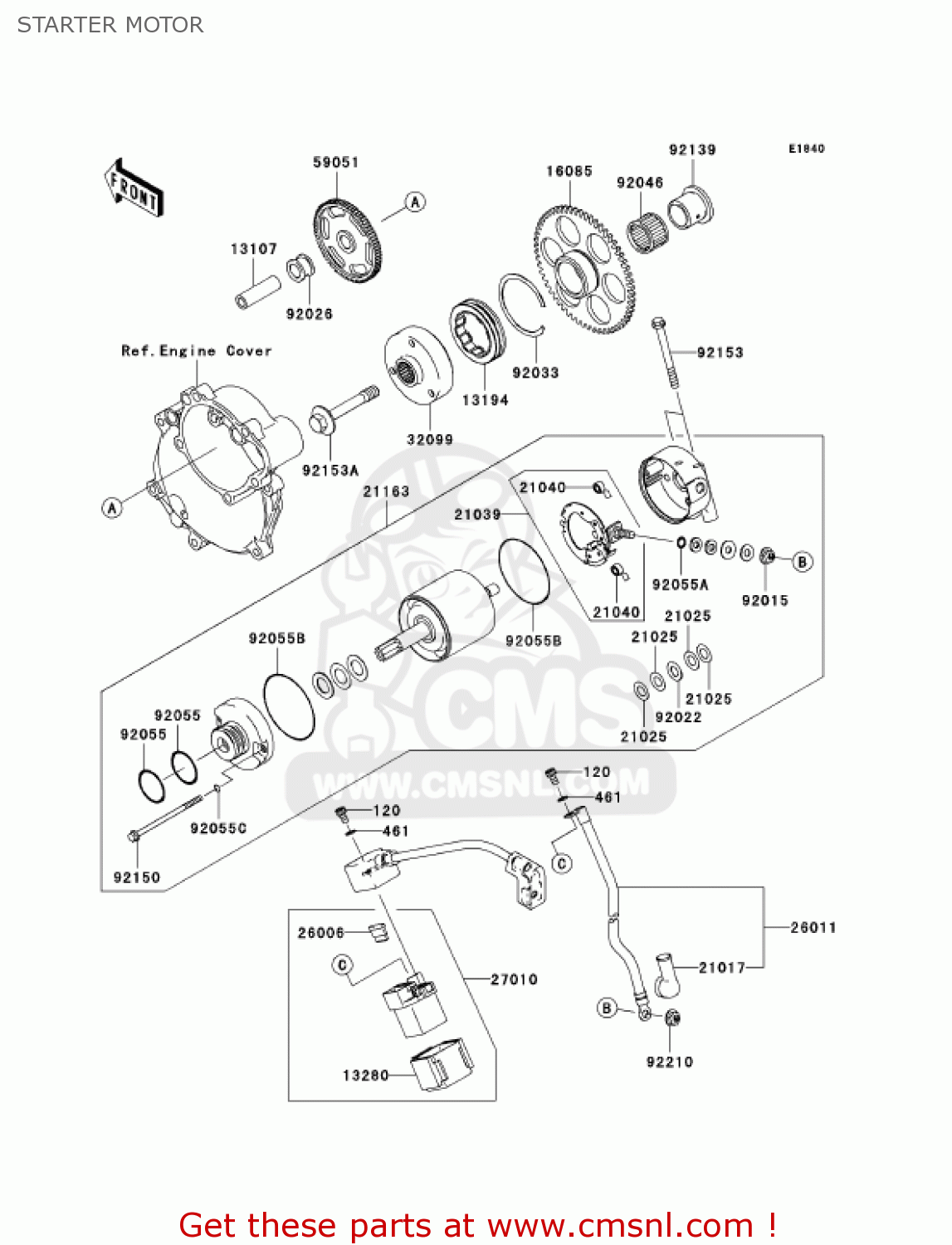

STARTER MOTOR

ref

part #

description

quantity

120

120S0510
ref: 120

BOLT-SOCKET

€ 0.50

461

461K0500
ref: 461

WASHER-SPRING,5MM,BLA

€ 0.50

13107

131070023
ref: 13107

SHAFT,IDLE GEAR

€ 4.00

13194

131943704
ref: 13194

CLUTCH-ONEWAY

€ 81.50

13280

132801263
ref: 13280

HOLDER

€ 9.00

16085

160850012
ref: 16085

GEAR,58T

€ 94.50

21017

21017017
ref: 21017

GROMMET-CORD

€ 6.50

21025

21025011
ref: 21025

WASHER, THRUST, 0.2T

€ 4.00

21039

210391066
ref: 21039

BRUSH

€ 27.50

21040

210401057
ref: 21040

SPRING-BRUSH

€ 5.50

21163

211630013
ref: 21163

STARTER-ELECTRIC

€ 568.50

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26011

260110033
ref: 26011

WIRE-LEAD

€ 27.50

27010

270101446
ref: 27010

SWITCH,MAGNETIC

€ 116.50

32099

320990007
ref: 32099

CASE

€ 89.00

59051

590510012
ref: 59051

GEAR-SPUR,IDLE

€ 57.00

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

920221132
ref: 92022

WASHER,9.1X18X0.8

€ 4.00

92026

920260024
ref: 92026

SPACER

€ 3.50

92033

920333731
ref: 92033

RING-SNAP

€ 4.00

92046

920460004
ref: 92046

BEARING-NEEDLE,RS2630

€ 24.50

92055

920551276
ref: 92055

RING-O

€ 6.50

92055A

920551370
ref: 92055A

RING-O,4.5X2.0

€ 3.00

92055B

920551550
ref: 92055B

RING-O

€ 6.00

92055C

920551551
ref: 92055C

RING-O

€ 2.50

92139

921390024
ref: 92139

BUSHING

€ 19.00

92150

921501969
ref: 92150

BOLT

€ 4.00

92153

921530018
ref: 92153

BOLT,FLANGED,6X70

€ 2.50

92153A

921530451
ref: 92153A

BOLT,10X62

€ 4.00

92210

922100188
ref: 92210

NUT,6MM

€ 1.50
