GEAR CHANGE DRUM/SHIFT FORK(S)

ZX1000C1 NINJA ZX10R 2004 USA CALIFORNIA CANADA

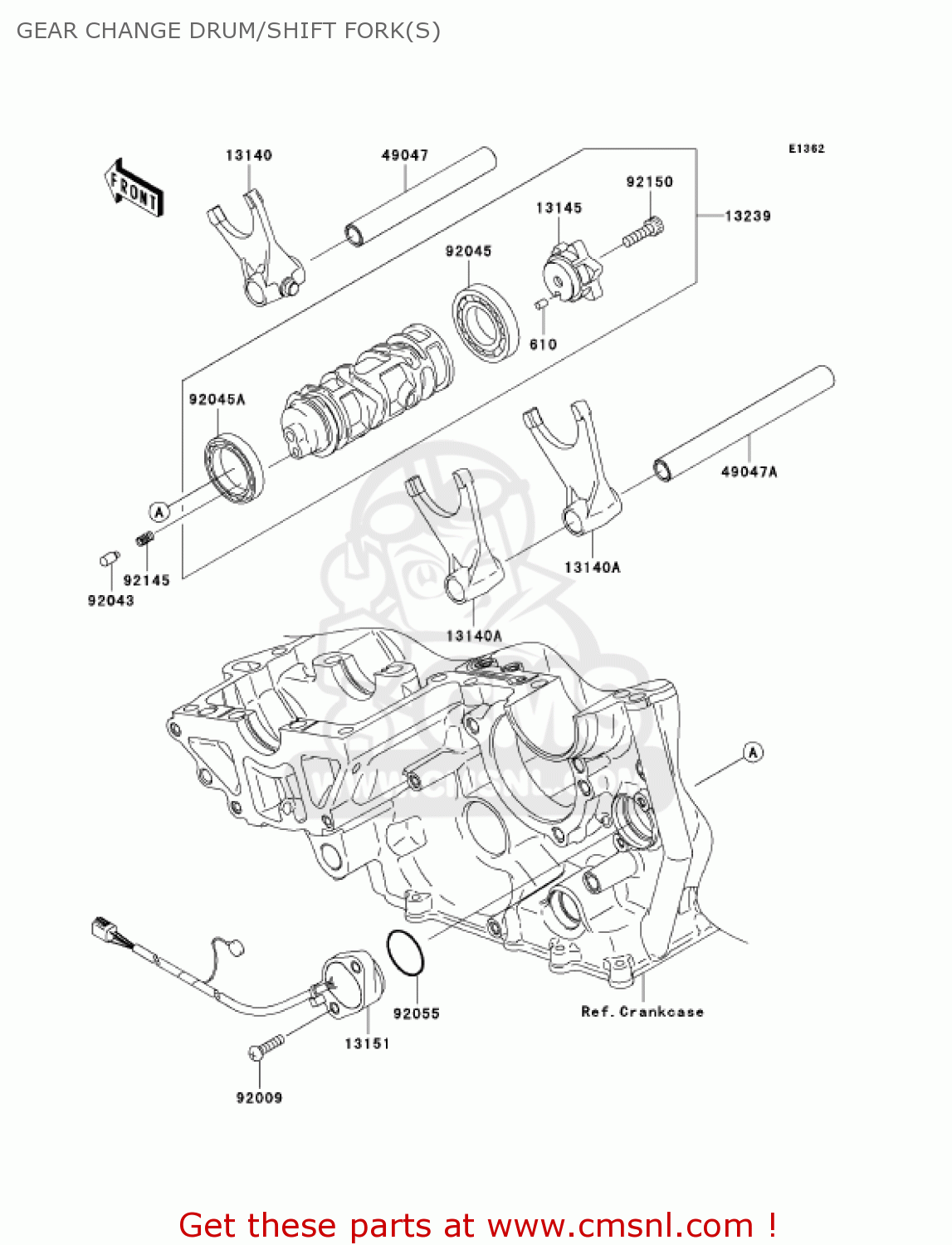

Gear change drum/shift fork(s) diagram ZX1000C1 NINJA ZX10R 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

610

610A0406
ref: 610

ROLLER,4X6

€ 2.50

13140

131400006
ref: 13140

FORK-SHIFT,INPUT

€ 101.50

13140A

131400007
ref: 13140A

FORK-SHIFT,OUTPUT

€ 101.50

13145

131450012
ref: 13145

CAM-CHANGE DRUM

€ 42.00

13151

131510005
ref: 13151

SWITCH-COMP,NEUTRAL

€ 134.50

13239

132390010
ref: 13239

DRUM-ASSY-CHANGE

€ 241.00

49047

490470005
ref: 49047

ROD-SHIFT,INPUT

€ 18.50

49047A

490470006
ref: 49047A

ROD-SHIFT,OUTPUT

€ 18.50

92009

920091905
ref: 92009

SCREW

€ 1.50

92043

920431654
ref: 92043

PIN

€ 2.50

92045

920451045
ref: 92045

BEARING-BALL,16005

€ 27.00

92045A

920451152
ref: 92045A

BEARING-BALL,6806

€ 47.00

92055

92055091
ref: 92055

0 RING

€ 4.00

92145

921451414
ref: 92145

SPRING

€ 2.50

92150

921501880
ref: 92150

BOLT,SOCKET,6X20

€ 2.00

GEAR CHANGE DRUM/SHIFT FORK(S)

all assemblies
