Genuine ZX Kawasaki Parts delivered quickly!


GEAR CHANGE MECHANISM

ZX1000C1 NINJA ZX10R 2004 USA CALIFORNIA CANADA

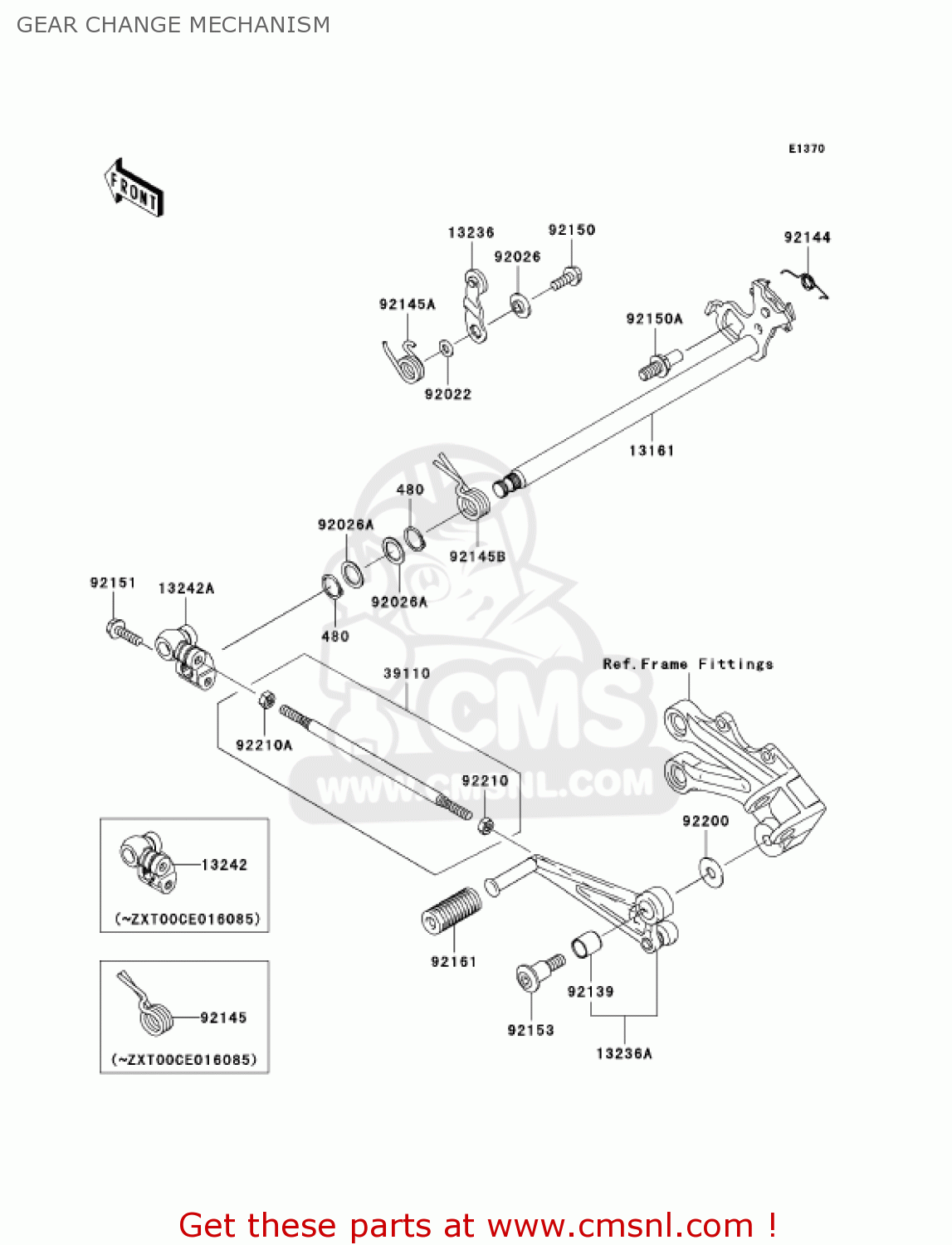

Gear change mechanism diagram ZX1000C1 NINJA ZX10R 2004 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ZX1000C1 NINJA ZX10R 2004 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX1000C1 NINJA ZX10R 2004 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX1000C1 NINJA ZX10R 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480
480J1400
ref: 480
CIRCLIP-TYPE-C,14MM
480J1400
€ 3.00
13161
131610011
ref: 13161
LEVER-COMP-CHANGE SHA
131610011
€ 95.00
13236
132360062
ref: 13236
LEVER-COMP,POSITION
€ 6.50
13236A
132360063
ref: 13236A
LEVER-COMP,CHANGE PED
132360063
€ 96.50
13242
132420013
ref: 13242
( - ZXT00CE01608
LEVER-ASSY-CHANGE
€ 36.50
13242A
132420016
ref: 13242A
( ZXT00CE016086 - )
LEVER-ASSY-CHANGE
€ 36.50
39110
391101131
ref: 39110
ROD-ASSY-TIE
€ 17.50
92022
920221827
ref: 92022
WASHER,6X12.8X1.2
920221827
€ 3.00
92026
920261217
ref: 92026
SPACER
920261217
€ 3.50
92026A
920261534
ref: 92026A
SPACER
920261534
€ 2.50
92139
921390023
ref: 92139
BUSHING
921390023
€ 2.50
92144
921441029
ref: 92144
SPRING
921441029
€ 5.00
92145
921450201
ref: 92145
( - ZXT00CE01608
SPRING
€ 4.50
92145A
921450202
ref: 92145A
SPRING
921450202
€ 3.00
92145B
921450256
ref: 92145B
( ZXT00CE016086 - )
SPRING
921450256
€ 5.50
92150
921501394
ref: 92150
BOLT,6X16
921501394
€ 2.00
92150A
921501869
ref: 92150A
BOLT,RETURN SPRING
€ 7.00
92151
921511226
ref: 92151
BOLT,6X20
921511226
€ 1.50
92153
921530446
ref: 92153
BOLT,8X32
921530446
€ 7.50
92161
921611300
ref: 92161
DAMPER,CHANGE PEDAL
921611300
€ 4.00
92200
922000174
ref: 92200
WASHER,8.0X22.0X1.5
922000174
€ 1.50
92210
922101100
ref: 92210
NUT
922101100
€ 1.50
92210A
922101101
ref: 92210A
NUT
922101101
€ 1.50
