MUFFLER(S)
ZX1000A3 GPZ1000RX 1988 EUROPE UK FR

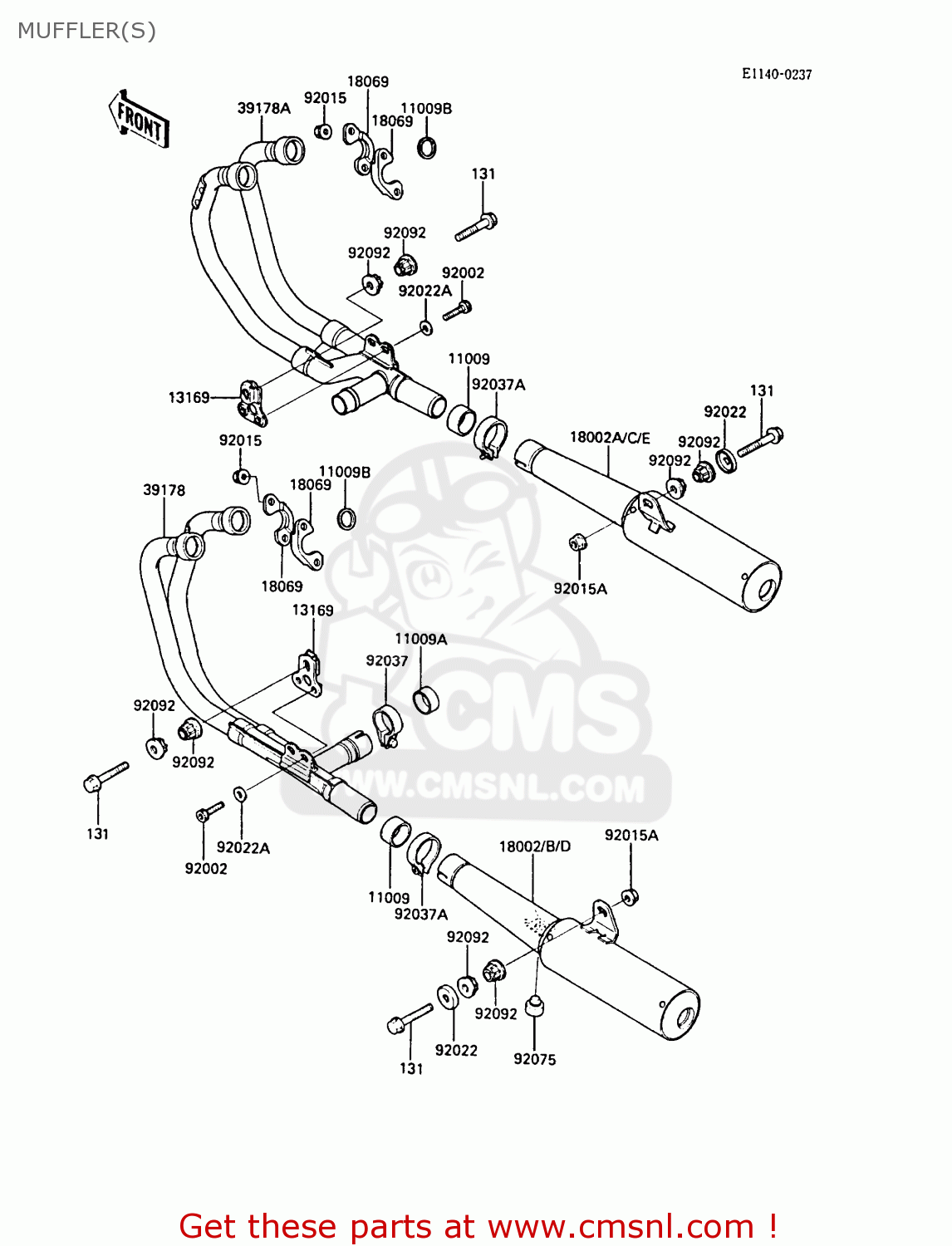

Muffler(s) diagram ZX1000A3 GPZ1000RX 1988 EUROPE UK FR
MUFFLER(S) ZX1000A3 GPZ1000RX 1988 EUROPE UK FR
×
prices are in EUR
ref
part #
description
quantity
131
131J1055
ref: 131
BOLT-FLANGED,10X55,BL
€ 4.00
11009
110091348
ref: 11009
GASKET,MUFFLER (MCA)
€ 27.00
11009A
110091659
ref: 11009A
GASKET,EXHAUST MANIFO (MCA)
€ 20.00
11009B
11009013
ref: 11009B
GASKET-CYLINDER BASE (MCA)
€ 0.50
13169
131691911
ref: 13169
PLATE,EXHAUST MANIFOL
€ 14.00
18002
180021620
ref: 18002
BODY-COMP-MUFFLER,LH
€ 683.50
18002A
180021621
ref: 18002A
BODY-COMP-MUFFLER,RH
€ 683.50
18069
180691054
ref: 18069
HOLDER-EXHAUST PIPE
€ 16.50
39178
391781118
ref: 39178
MANIFOLD-COMP-EXHAUST
€ 352.00
39178A
391781119
ref: 39178A
MANIFOLD-COMP-EXHAUST
€ 329.50
92002
920021371
ref: 92002
BOLT
€ 2.50
92015
920151380
ref: 92015
NUT,LOCK,8MM
€ 3.00
92015A
920151428
ref: 92015A
NUT,FLANGED,10MM
€ 3.00
92022
920221355
ref: 92022
WASHER
€ 3.50
92022A
920221594
ref: 92022A
WASHER,PLAIN
€ 2.50
92037
920371270
ref: 92037
CLAMP,MUFFLER,BLACK
€ 13.50
92037A
920371537
ref: 92037A
CLAMP,POWER CHAMBER
€ 14.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
€ 11.50
