FRONT FORK
ZX1000A3 GPZ1000RX 1988 EUROPE UK FR

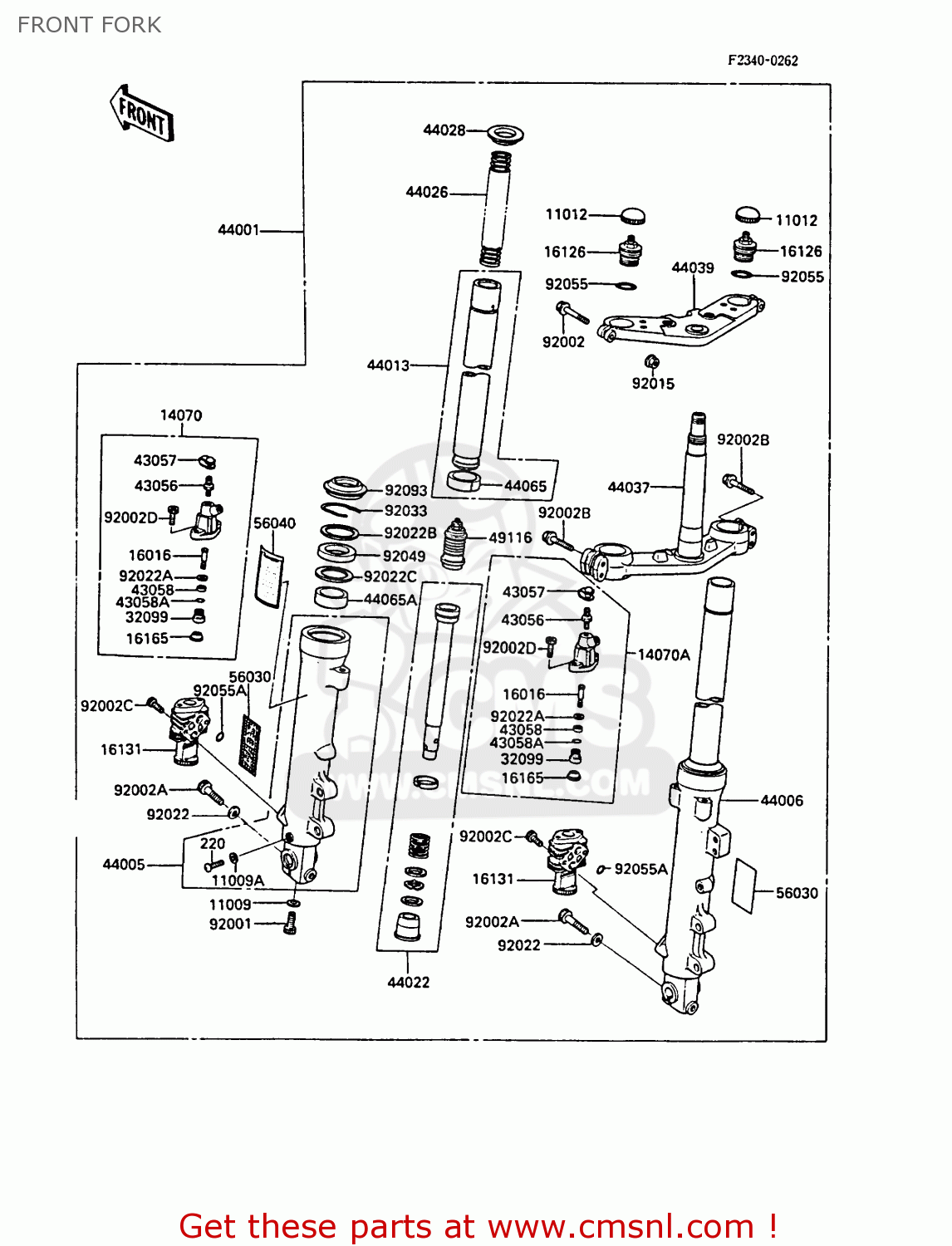

Front fork diagram ZX1000A3 GPZ1000RX 1988 EUROPE UK FR
FRONT FORK ZX1000A3 GPZ1000RX 1988 EUROPE UK FR
×
prices are in EUR
ref
part #
description
quantity
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121501
ref: 11012
CAP,FORK TOP
€ 8.00
14070
140701059
ref: 14070
BODY-BREATHER,ANTI-DI
€ 174.50
14070A
140701060
ref: 14070A
BODY-BREATHER,ANTI-DI
€ 174.50
16016
160161067
ref: 16016
PLUNGER,ANTI-DIVE
€ 23.00
16126
161261150
ref: 16126
VALVE
€ 29.00
16131
161311061
ref: 16131
BODY-VALVE,FORK,ANTI-
€ 140.00
16165
161651051
ref: 16165
SEPARATOR,ANTI-DIVE
€ 6.00
32099
320991067
ref: 32099
CASE,PLUG,ANTI-DIVE
€ 29.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43058
430581052
ref: 43058
RING,SEAL,14X18X2.5
€ 3.50
43058A
430581053
ref: 43058A
RING,SEAL,6.2X11X3.2
€ 2.50
44001
440011628
ref: 44001
FORK-FRONT
€ 3,212.50
44005
440051228
ref: 44005
PIPE-LEFT FORK OUTER
€ 174.00
44006
440061228
ref: 44006
PIPE-RIGHT FORK OUTER
€ 309.00
44013
440131242
ref: 44013
PIPE-FORK INNER
€ 184.50
44022
440221188
ref: 44022
CYLINDER-FORK
€ 89.00
44026
440261317
ref: 44026
SPRING-FRONT FORK,K=0
€ 51.00
44028
440281004
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44037
440371201
ref: 44037
HOLDER-FORK UNDER
€ 349.50
44039
440391125
ref: 44039
HOLDER-FORK UPPER
€ 104.00
44065
440651076
ref: 44065
BUSHING-FRONT FORK,IN
€ 12.50
44065A
440651077
ref: 44065A
BUSHING-FRONT FORK
€ 12.50
49116
491161062
ref: 49116
VALVE-ASSY,FORK
€ 69.00
56030
560301057
ref: 56030
LABEL,AVDS MARK
€ 2.50
56040
560401117
ref: 56040
LABEL-WARNING,SHOCKAB
€ 2.50
92001
920011309
ref: 92001
BOLT,FORK CYLINDER
€ 4.50
92002
920021158
ref: 92002
BOLT,FLANGED,8X55
€ 6.00
92002A
920021316
ref: 92002A
BOLT
€ 3.50
92002B
920021476
ref: 92002B
BOLT,FLANGED,8X40
€ 6.50
92002C
920021564
ref: 92002C
BOLT
€ 5.50
92002D
920021565
ref: 92002D
BOLT
€ 6.00
92015
920151408
ref: 92015
NUT,FLANGED,8MM
€ 1.00
92022
920221598
ref: 92022
WASHER
€ 4.50
92022A
920221636
ref: 92022A
WASHER,6.5X18X1
€ 2.50
92022B
920221774
ref: 92022B
WASHER,FORK OUTER PIP
€ 4.50
92022C
920221775
ref: 92022C
WASHER,FORK OUTER PIP
€ 4.50
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
€ 2.50
92049
920491251
ref: 92049
SEAL-OIL,FORK
€ 21.50
92055
920551052
ref: 92055
RING-O,FORK TOP
€ 2.50
92055A
920551201
ref: 92055A
RING-O,AND
€ 1.00
92093
920931210
ref: 92093
SEAL,FORK
€ 20.00
