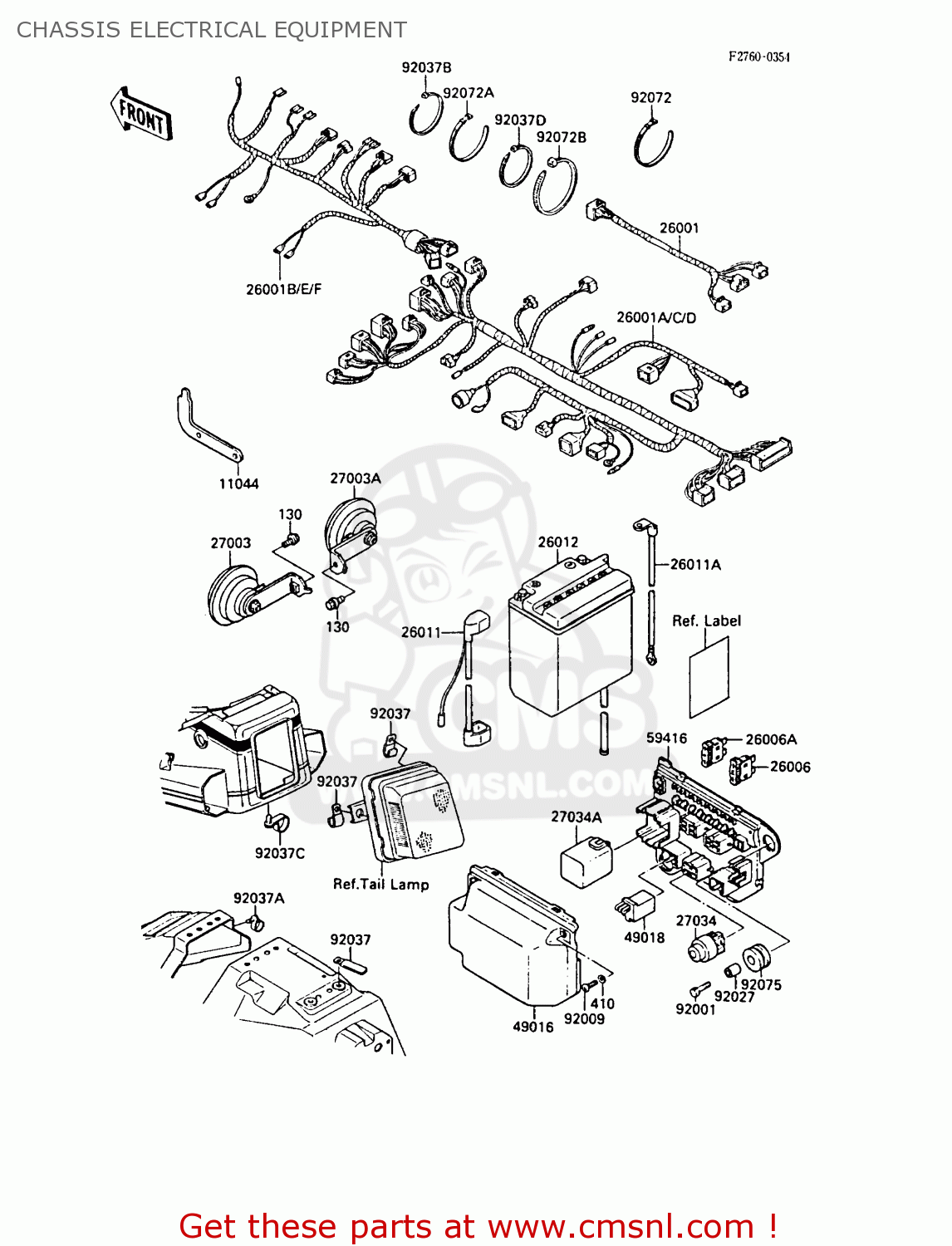

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

26001

260011735
ref: 26001

HARNESS,RR

€ 23.50

26001C

260011764
ref: 26001C

HARNESS,MAIN

€ 177.50

26001E

260011766
ref: 26001E

HARNESS,FR

€ 82.00

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26006A

260061007
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111322
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 23.50

26011A

260111323
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 24.50

26012

260121121
ref: 26012

BATTERY,12V15AH,FB14L

€ 103.00

27003

270031225
ref: 27003

HORN,LH

€ 45.00

27003A

270031226
ref: 27003A

HORN,RH

€ 45.00

27034

270341006
ref: 27034

STARTER,RELAY

€ 65.50

27034A

270341007
ref: 27034A

RELAY,FLASHER

€ 139.00

49016

490161050
ref: 49016

COVER-SEAL

€ 14.00

49018

490181006
ref: 49018

DIODE

€ 35.00

59416

594161056
ref: 59416

CASE-ELECTRIC

€ 125.50

92001

920011774
ref: 92001

BOLT,6X22

€ 2.00

92009

920091021
ref: 92009

SCREW,TAPPING,4X10

€ 2.50

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371163
ref: 92037A

CLAMP,HARNESS,REAR

€ 4.50

92037B

920371173
ref: 92037B

CLAMP,SPARK PLUG CAP

€ 1.00

92037C

920371290
ref: 92037C

CLAMP,CARBURETOR

€ 4.50

92037D

920371576
ref: 92037D

CLAMP,L=203

€ 8.00

92072

92072031
ref: 92072

BAND,MIDDLE

€ 3.00

92072A

92072056
ref: 92072A

BAND,RUBBER

€ 3.00

130

130G0814
ref: 130

BOLT,FLANGED,8X14

€ 0.50

410

410B0400
ref: 410

WASHER-PLAIN-SMALL,4M

€ 0.50

92072B

920721197
ref: 92072B

BAND

€ 5.00

92075

920751562
ref: 92075

DAMPER

€ 3.00
