REAR MASTER CYLINDER

ZR750K1 Z750S 2005 USA CALIFORNIA CANADA

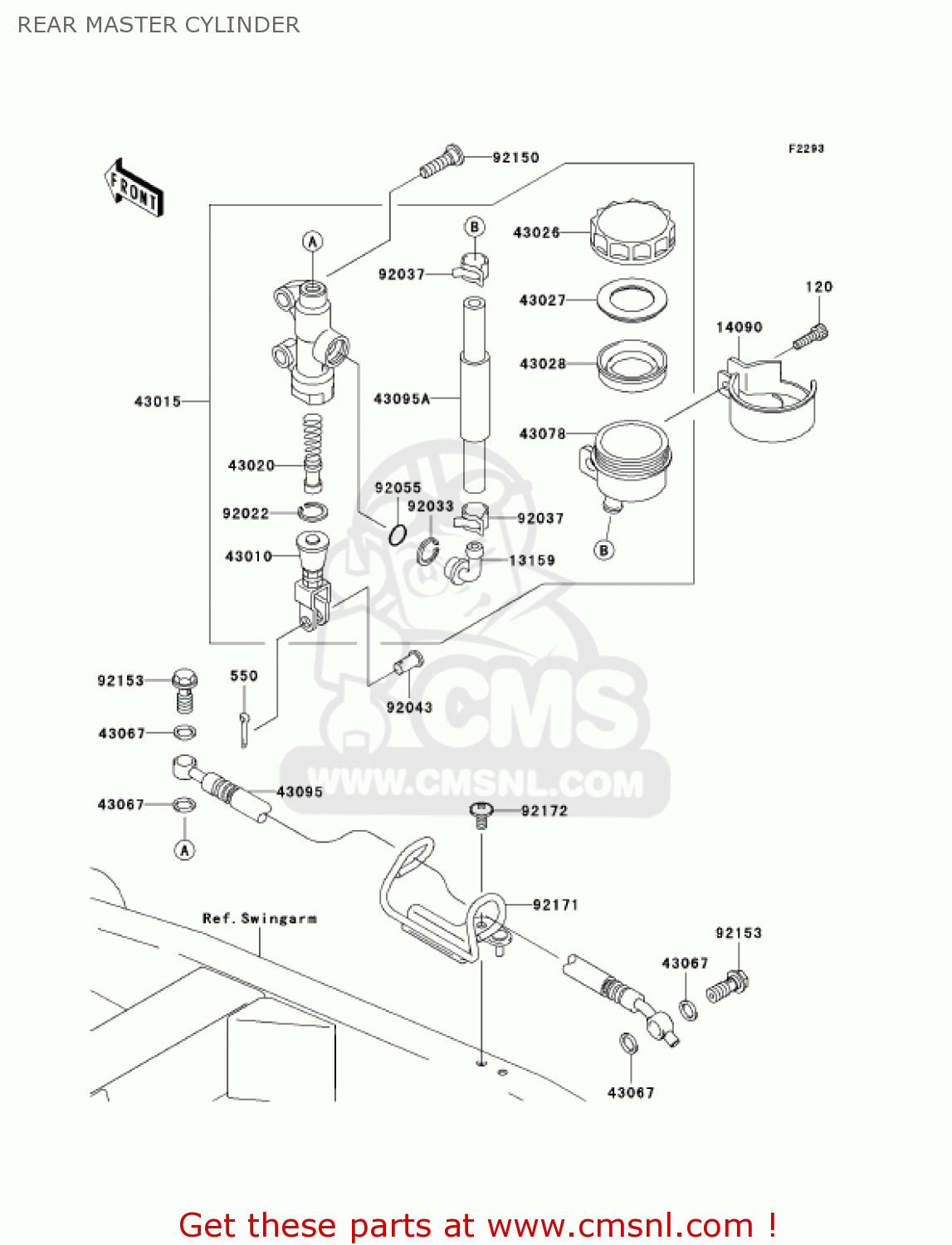

Rear master cylinder diagram ZR750K1 Z750S 2005 USA CALIFORNIA CANADA

REAR MASTER CYLINDER ZR750K1 Z750S 2005 USA CALIFORNIA CANADA
REAR MASTER CYLINDER ZR750K1 Z750S 2005 USA CALIFORNIA CANADA
REAR MASTER CYLINDER ZR750K1 Z750S 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120S0620
ref: 120
BOLT-SOCKET,6X20
120S0620
€ 1.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
131591052
€ 9.50
14090
140901482
ref: 14090
COVER,RESERVOIR TANK
140901482
€ 14.50
43010
430101062
ref: 43010
ROD-ASSY-BRAKE
430101062
€ 38.50
43015
430151706
ref: 43015
CYLINDER-ASSY-MASTER,
430151706
€ 307.50
43020
430201094
ref: 43020
PISTON-COMP, BRAKE
430201094
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781165
ref: 43078
RESERVOIR,RR MASTER C
430781165
€ 20.00
43095
430950117
ref: 43095
HOSE-BRAKE,RR
€ 66.50
43095A
430951292
ref: 43095A
HOSE-BRAKE,RR MASTER
430951292
€ 31.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371547
ref: 92037
CLAMP
920371547
€ 8.50
92043
920431303
ref: 92043
PIN,8MM
920431303
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92150
921501843
ref: 92150
BOLT
921501843
€ 2.50
92153
921530627
ref: 92153
BOLT,OIL,L=23
921530627
€ 3.50
92171
921710489
ref: 92171
CLAMP,BRAKE HOSE
921710489
€ 21.00
92172
921720004
ref: 92172
SCREW,6X14
921720004
€ 2.00
