ENGINE MOUNT

ZR750K1 Z750S 2005 USA CALIFORNIA CANADA

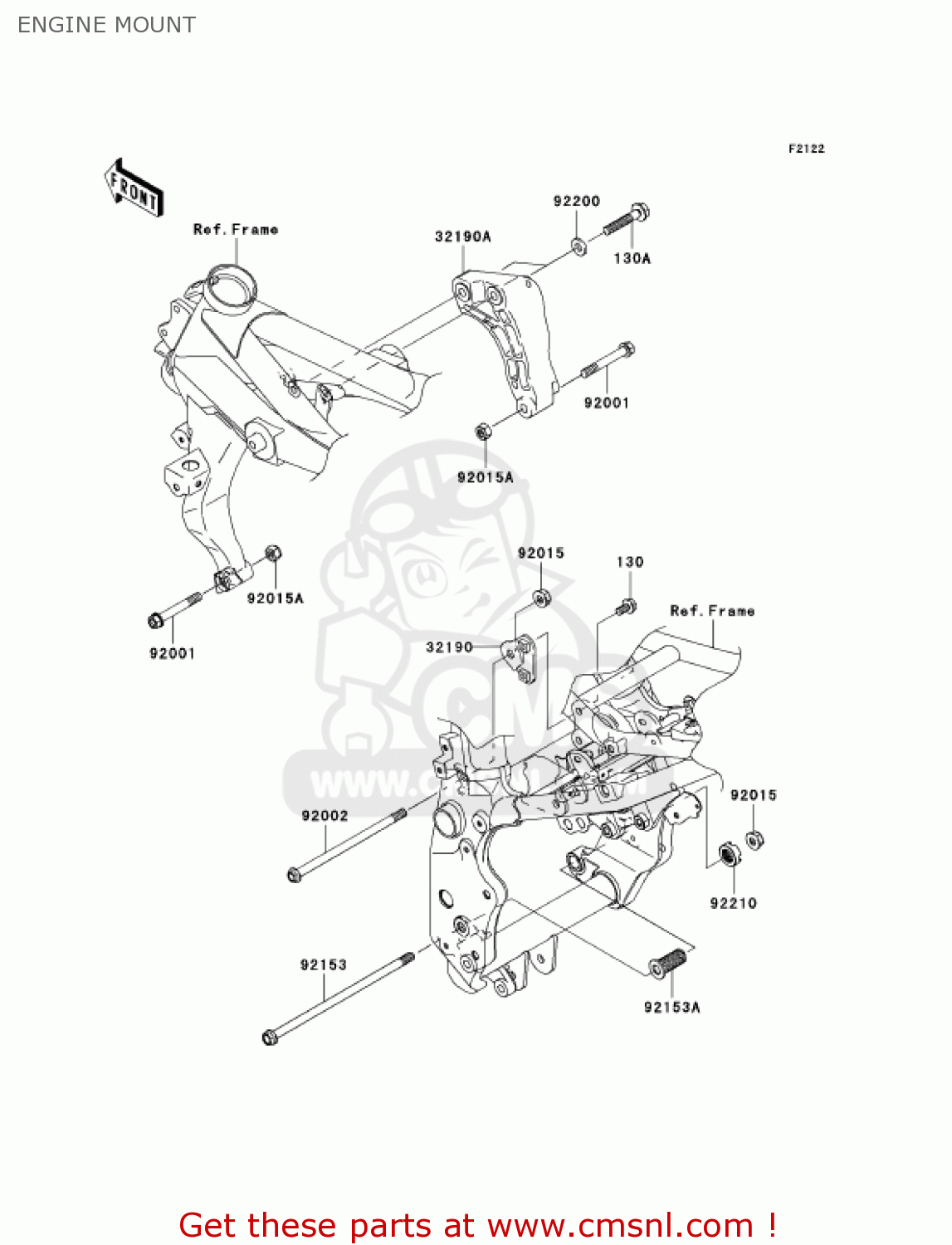

Engine mount diagram ZR750K1 Z750S 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0816
ref: 130

BOLT-FLANGED,8X16,BLA

€ 0.50

130A

130J1055
ref: 130A

BOLT-FLANGED,10X55

€ 4.00

32190

321900009
ref: 32190

BRACKET-ENGINE,RH,RR,

€ 8.00

32190A

321900134
ref: 32190A

BRACKET-ENGINE,FR,RH

€ 51.50

92001

920011618
ref: 92001

BOLT,FLANGED,10X70

€ 7.00

92002

920021337
ref: 92002

BOLT,10X183

€ 11.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151189
ref: 92015A

NUT,LOCK,10MM,BLACK

€ 4.50

92153

921530559
ref: 92153

BOLT,FLANGED,10X240

€ 20.00

92153A

921531098
ref: 92153A

BOLT,ENGINE MOUNT,18M

€ 17.00

92200

922000121
ref: 92200

WASHER,10X22X3.2

€ 1.50

92210

922101203
ref: 92210

NUT,18MM

€ 12.50
