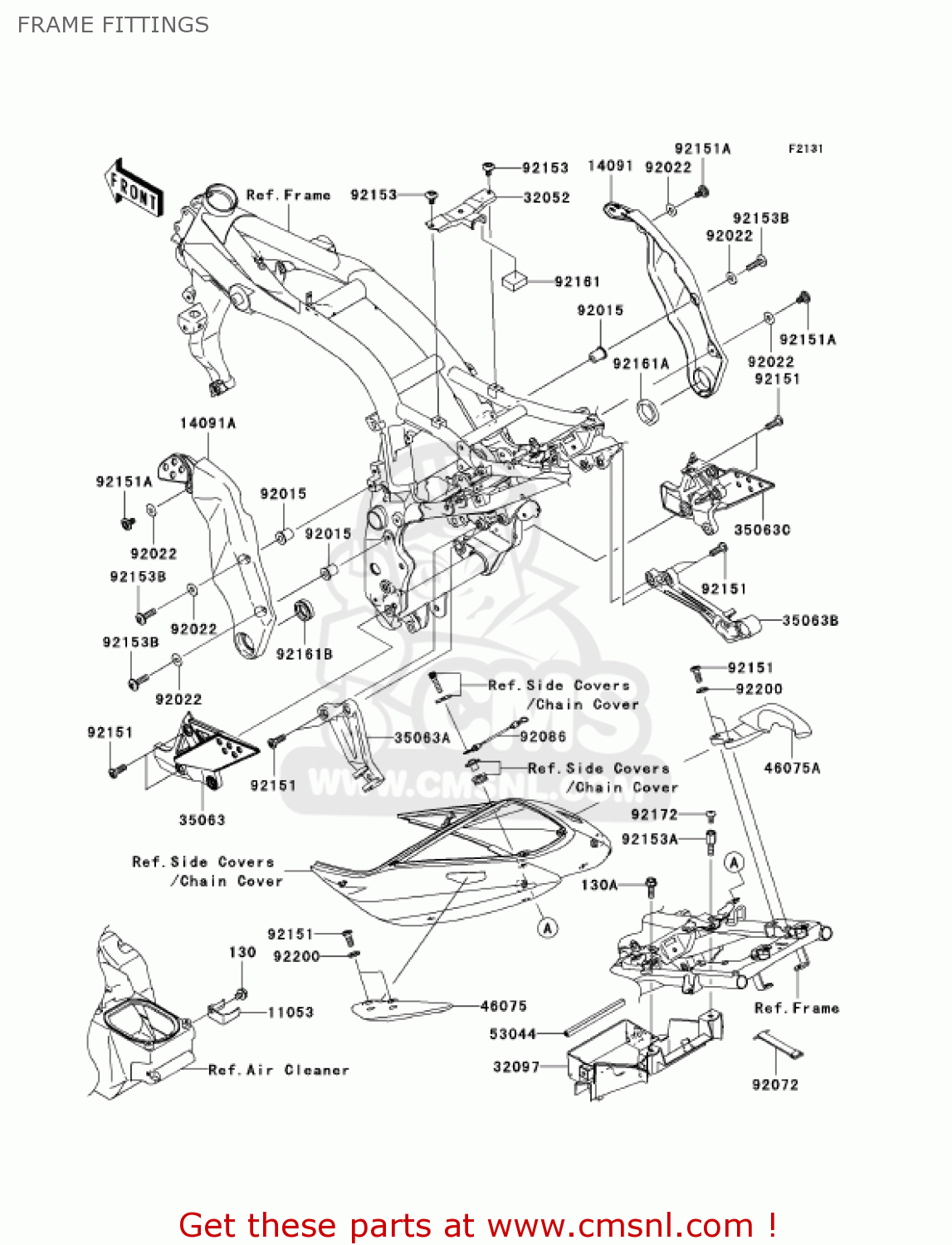

FRAME FITTINGS

ref

part #

description

quantity

130

130J0608
ref: 130

BOLT-FLANGED,6X8

€ 2.50

130A

130J0620
ref: 130A

BOLT-FLANGED,6X20

€ 2.50

11053

110530138
ref: 11053

BRACKET,MAGNETIC SWIT

€ 5.50

14091

1409102344P
ref: 14091

COVER,PIVOT,RH,M.F.GR

€ 35.00

14091A

1409102834P
ref: 14091A

COVER,PIVOT,LH,M.F.GR

€ 57.00

32052

320521597
ref: 32052

BRACKET-TANK,FUEL

€ 20.50

32097

320970010
ref: 32097

CASE-BATTERY

€ 101.50

35063

350630034
ref: 35063

STAY,STEP HOLDER,LH

€ 93.50

35063A

350630062458
ref: 35063A

STAY,RR,LH,P.SILVER

€ 56.50

35063B

350630063458
ref: 35063B

STAY,RR,RH,P.SILVER

€ 57.00

35063C

350630172
ref: 35063C

STAY,STEP HOLDER,RH

€ 93.50

46075

460750031
ref: 46075

GRIP,TAIL,LH

€ 67.50

46075A

460750032
ref: 46075A

GRIP,TAIL,RH

€ 64.00

53044

530441303
ref: 53044

TRIM

€ 2.50

92015

920151700A
ref: 92015

NUT

€ 5.50

92022

920221143
ref: 92022

WASHER,6.5X16X1

€ 2.50

92072

920721349
ref: 92072

BAND,TOOL

€ 9.50

92086

920861075
ref: 92086

WIRE

€ 14.00

92151

921511372
ref: 92151

BOLT,SOCKET,10X30

€ 4.00

92151A

921511654
ref: 92151A

BOLT,SOCKET,6X14

€ 1.50

92153

921530410
ref: 92153

BOLT,SOCKET,6X10

€ 2.00

92153A

921530966
ref: 92153A

BOLT,6MM

€ 4.00

92153B

921531267
ref: 92153B

BOLT,SOCKET,6X23

€ 2.00

92161

921610063
ref: 92161

DAMPER

€ 2.00

92161A

921610148
ref: 92161A

DAMPER

€ 2.50

92161B

921610211
ref: 92161B

DAMPER

€ 2.00

92172

921720170
ref: 92172

SCREW,5MM

€ 2.00

92200

922000088
ref: 92200

WASHER,10.5X26X2.3

€ 1.50
