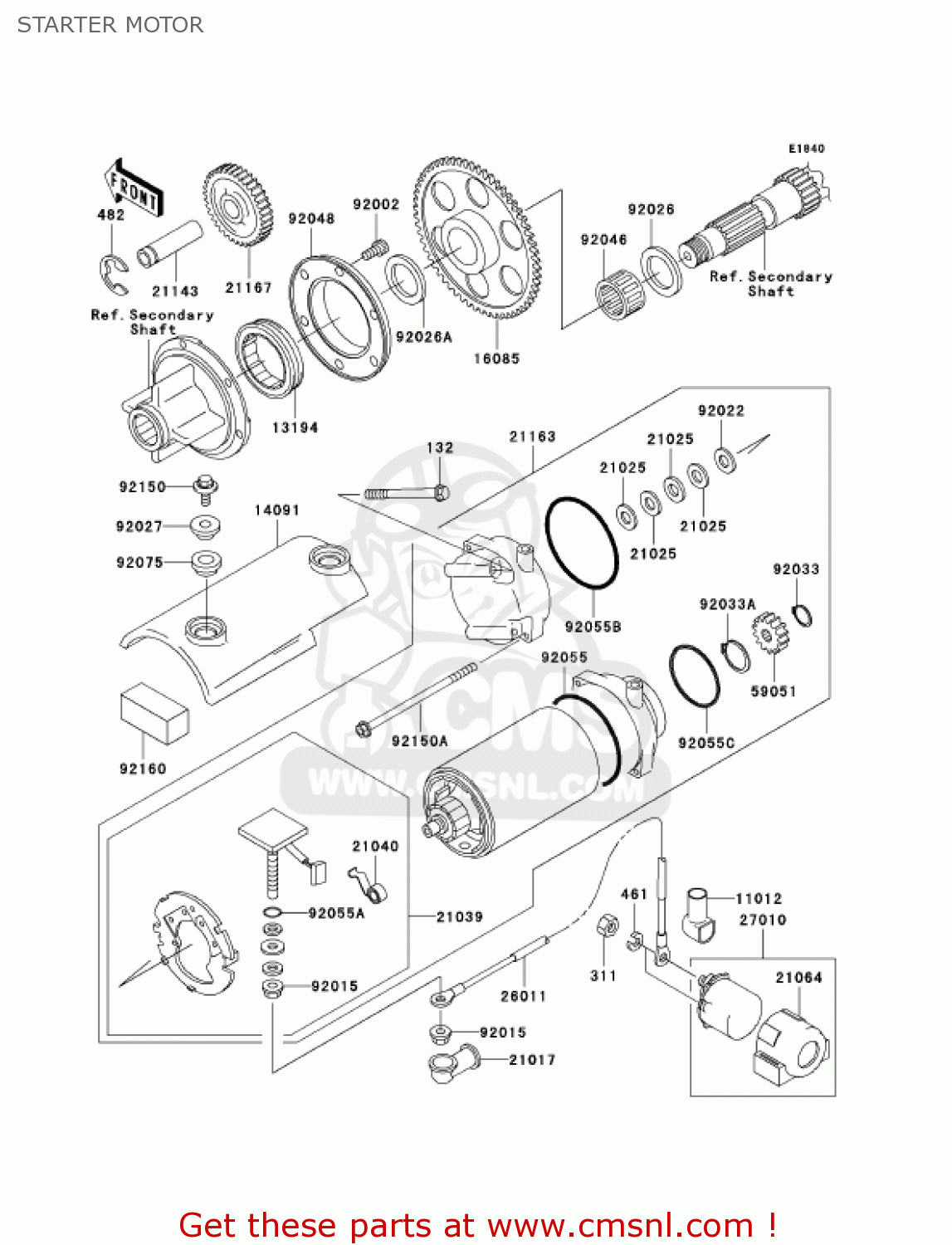

STARTER MOTOR

ref

part #

description

quantity

132

132G0660
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

482

482J0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 2.50

11012

110121354
ref: 11012

CAP,TERMINAL

€ 7.00

13194

131941086
ref: 13194

CLUTCH-ONEWAY

€ 81.00

14091

140911104
ref: 14091

COVER,STERTERMOTOR

€ 46.50

16085

160851300
ref: 16085

GEAR,STARTER,58T

€ 95.50

21017

21017017
ref: 21017

GROMMET-CORD

€ 6.50

21025

21025011
ref: 21025

WASHER, THRUST, 0.2T

€ 4.00

21039

210391062
ref: 21039

BRUSH,CARBON

€ 81.00

21040

210401057
ref: 21040

SPRING-BRUSH

€ 5.50

21064

21064002
ref: 21064

DAMPER,MAGNETIC SWITC

€ 13.50

21143

21143003
ref: 21143

SHAFT,IDLE GEAR

€ 10.00

21163

211631222
ref: 21163

STARTER-ELECTRIC

€ 633.50

21167

21167004
ref: 21167

GEAR-SPUR,IDLE,29T

€ 69.50

26011

260111809
ref: 26011

WIRE-LEAD

€ 57.50

27010

270101410
ref: 27010

SWITCH,MAGNETIC

€ 106.50

59051

590511401
ref: 59051

GEAR-SPUR,STARTER

€ 69.00

92002

920021796
ref: 92002

BOLT,SOCKET,6X12

€ 3.00

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

920221132
ref: 92022

WASHER,9.1X18X0.8

€ 4.00

92026

920261025
ref: 92026

SPACER,25X36X3.2

€ 3.50

92026A

920261533
ref: 92026A

SPACER,25.3X36X2.0

€ 9.00

92027

920271848
ref: 92027

COLLAR,L=7.4

€ 2.50

92033

92033037
ref: 92033

RING-SNAP,13MM

€ 6.50

92033A

920331326
ref: 92033A

RING-SNAP,17MM

€ 7.00

92046

92046056
ref: 92046

BEARING-NEEDLE,K25301

€ 24.00

92048

920481068
ref: 92048

RACE,ONEWAY CLUTCH

€ 58.50

92055

920551086
ref: 92055

O RING,64MM

€ 6.50

92055A

920551370
ref: 92055A

RING-O,4.5X2.0

€ 3.00

92055B

920551381
ref: 92055B

RING-O,STARTER MOTOR

€ 6.50

92055C

920551669
ref: 92055C

RING-O,40MM

€ 8.50

92075

920751244
ref: 92075

DAMPER

€ 3.00

92150

921501506
ref: 92150

BOLT

€ 3.00

92150A

921501729
ref: 92150A

BOLT,FLANGED,6X120

€ 5.50

92160

921601272
ref: 92160

DAMPER

€ 3.50

all assemblies
