BRAKE PEDAL/TORQUE LINK

ZR750H3 ZR7S 2003 USA CALIFORNIA CANADA

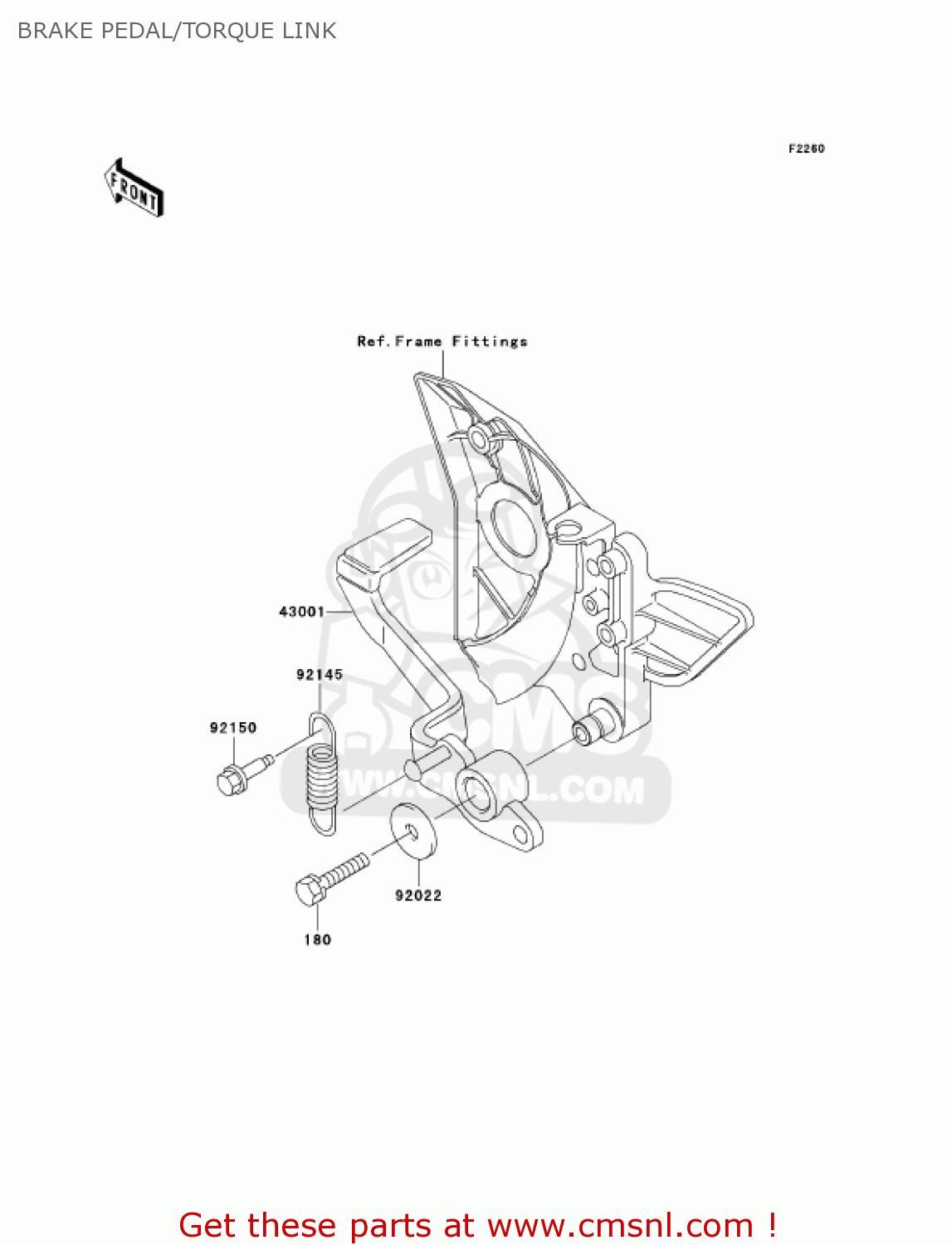

Brake pedal/torque link diagram ZR750H3 ZR7S 2003 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK ZR750H3 ZR7S 2003 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK ZR750H3 ZR7S 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

180

180H0614
ref: 180

BOLT-UPSET-WS

€ 1.00

43001

430011419
ref: 43001

LEVER-BRAKE,PEDAL

€ 73.00

92022

920221282
ref: 92022

WASHER,7X28X1.6

€ 3.00

92145

921451090
ref: 92145

SPRING,BRAKE PEDAL RE

€ 3.50

92150

921501439
ref: 92150

BOLT

€ 8.00
