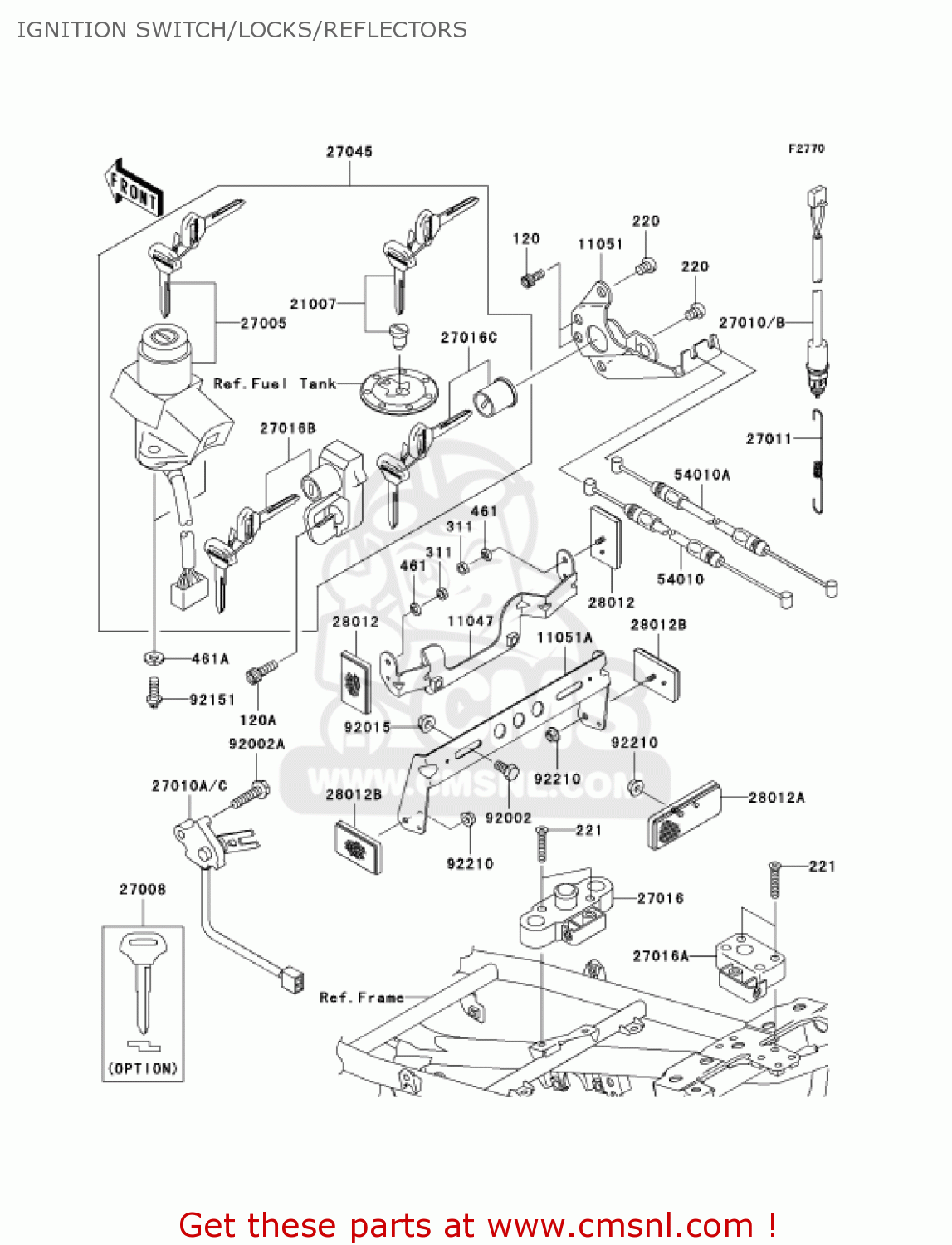

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

120A

120S0618
ref: 120A

BOLT-SOCKET

€ 1.00

220

220F0608
ref: 220

SCREW-PAN-CROSS

€ 1.00

221

221F0630
ref: 221

SCREW-CSK-CROSS

€ 1.00

311

311C0500
ref: 311

NUT-HEX

€ 0.50

461

461K0500
ref: 461

WASHER-SPRING,5MM,BLA

€ 0.50

461A

461L0600
ref: 461A

WASHER-SPRING

€ 0.50

11047

110471280
ref: 11047

BRACKET,REFLECTOR

€ 26.50

11051

110511268
ref: 11051

BRACKET,SEAT LOCK

€ 8.00

11051A

110511276
ref: 11051A

REFLECTOR BRACKET,SIDE

€ 14.00

21007

210075042
ref: 21007

ROTOR,LOCK,TANK CAP

€ 65.50

27005

270055122
ref: 27005

SWITCH-ASSY-IGNITION

€ 100.00

27008

270081189
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 12.50

27010B

270101452
ref: 27010B

SWITCH,BRAKE LAMP

€ 20.00

27010C

270101469
ref: 27010C

SWITCH,SIDE STAND

€ 49.50

27011

27011021
ref: 27011

SPRING,BRAKE LAMP SW

€ 15.50

27016

270161098
ref: 27016

LOCK-ASSY,SEAT STRIKE

€ 72.50

27016A

270161113
ref: 27016A

LOCK-ASSY,SEAT STRIKE

€ 58.00

27016B

270165249
ref: 27016B

LOCK-ASSY,HELMET

€ 56.50

27016C

270165257
ref: 27016C

LOCK-ASSY,SEAT

€ 58.00

27045

270455147
ref: 27045

SWITCH-ASSY

€ 202.00

28012

280121003
ref: 28012

REFLECTOR,REFLEX

€ 15.00

28012A

280121077
ref: 28012A

REFLECTOR-REFLEX

€ 16.00

28012B

280121088
ref: 28012B

REFLECTOR-REFLEX

€ 15.00

54010

540101115
ref: 54010

CABLE,SEAT LOCK,FR

€ 10.50

54010A

540101116
ref: 54010A

CABLE,SEAT LOCK,TANDE

€ 10.50

92002

920021132
ref: 92002

BOLT,6X12

€ 2.50

92002A

920021582
ref: 92002A

BOLT,6X25

€ 3.00

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92151

921511911
ref: 92151

BOLT,TORX,6X16

€ 1.50

92210

922100007
ref: 92210

NUT,FLANGED,5MM

€ 2.00
