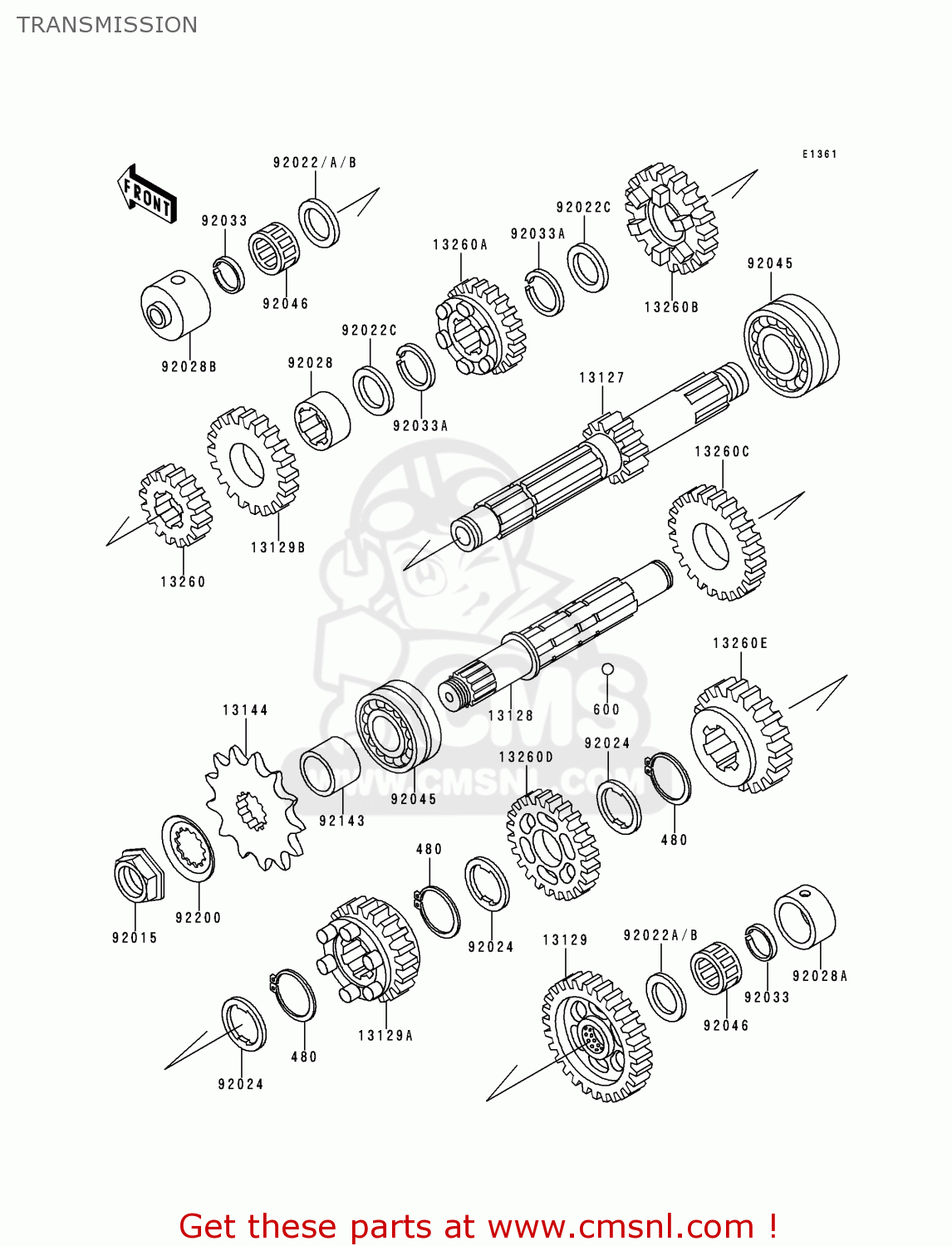

TRANSMISSION

ref

part #

description

quantity

480

480J3000
ref: 480

CIRCLIP-TYPE-C,30MM

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271018
ref: 13127

SHAFT-TRANSMISSION IN

€ 232.50

13128

131281206
ref: 13128

SHAFT-TRANSMISSION OU

€ 198.50

13129

131291046
ref: 13129

GEAR,OUTPUT LOW,35T

€ 105.00

13129A

131291201
ref: 13129A

GEAR,OUTPUT TOP,21T

€ 142.50

13129B

131291425
ref: 13129B

GEAR,INPUT TOP,24T

€ 151.50

13144

131441246
ref: 13144

SPROCKET-OUTPUT,15T

€ 36.50

13260

132601511
ref: 13260

GEAR,INPUT 2ND,19T

€ 69.50

13260A

132601512
ref: 13260A

GEAR,INPUT 3RD,22T

€ 84.50

13260B

132601513
ref: 13260B

GEAR,INPUT 4TH,25T

€ 134.00

13260C

132601514
ref: 13260C

GEAR,OUTPUT 2ND,31T

€ 107.00

13260D

132601515
ref: 13260D

GEAR,OUTPUT 3RD,28T

€ 100.00

13260E

132601516
ref: 13260E

GEAR,OUTPUT 4TH,26T

€ 107.00

92015

920151963
ref: 92015

NUT,20MM

€ 10.50

92022

920221026
ref: 92022

WASHER,20.3X30X0.7,ST

€ 4.00

92022A

92022112
ref: 92022A

WASHER,20.5X30X1,STEE

€ 6.00

92022B

92022144
ref: 92022B

SHIM-KICK SHAFT

€ 4.50

92022C

92022161
ref: 92022C

WASHER-THRUST,25MM

€ 7.00

92024

92024069
ref: 92024

WASHER,TOOTHED,30.5X3

€ 3.50

92028

920281007
ref: 92028

BUSHING,INPUT TOP GEA

€ 26.50

92028A

920281151
ref: 92028A

BUSHING,27X34X18.6

€ 19.00

92028B

920281199
ref: 92028B

BUSHING,INPUT SHAFT

€ 52.00

92033

92033015
ref: 92033

CIRCLIP

€ 2.50

92033A

92033026
ref: 92033A

CIRCLIP

€ 6.00

92045

92045035
ref: 92045

BEARING-BALL,83993SH2

€ 66.50

92046

920461045
ref: 92046

BEARING-NEEDLE,20V271

€ 25.00

92143

921431744
ref: 92143

COLLAR

€ 14.50

92200

922001065
ref: 92200

WASHER

€ 4.50

all assemblies
