CARBURETOR

ZR750C5 ZEPHYR 750 1995 EUROPE UK FR NL AR FG GR SP ST

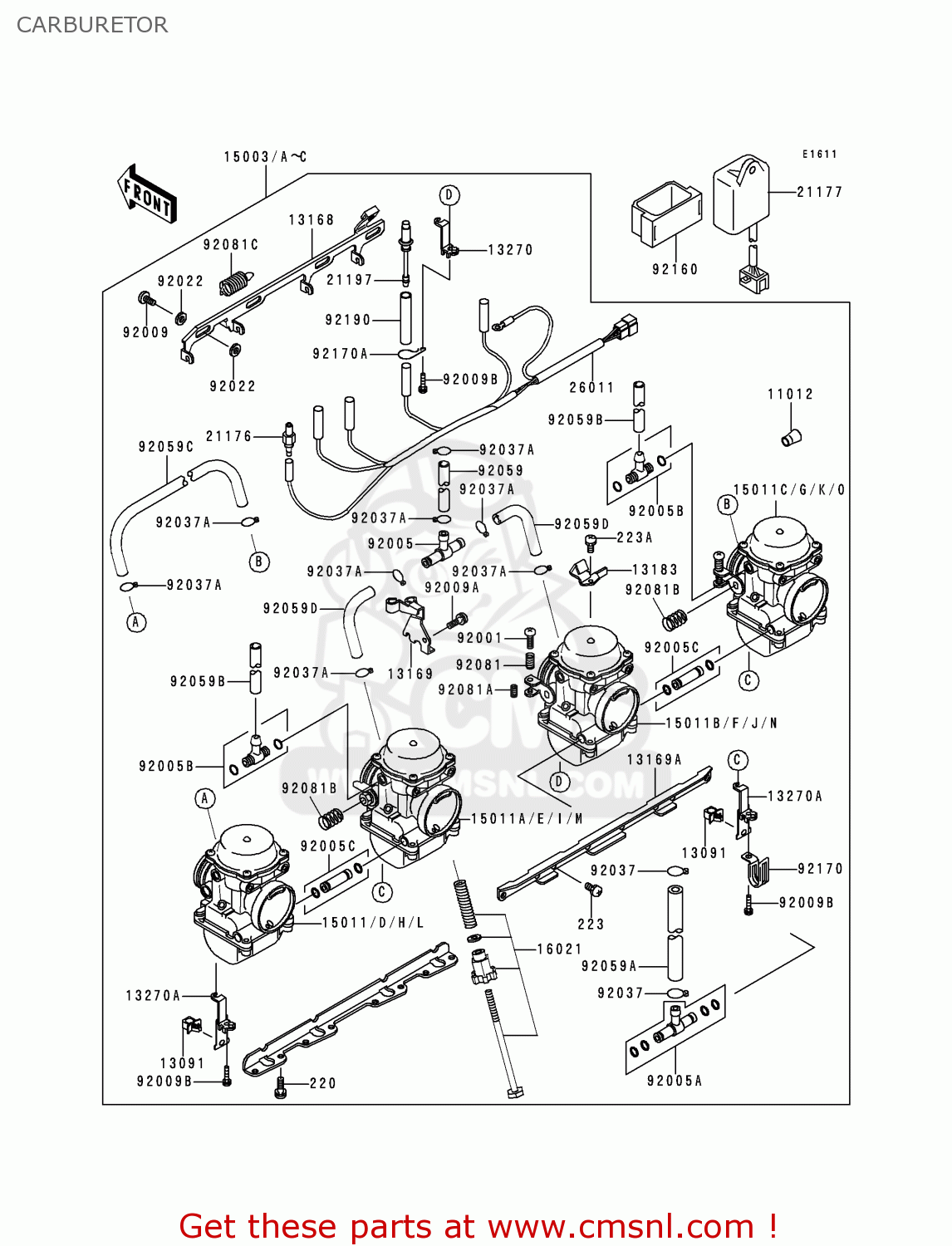

Carburetor diagram ZR750C5 ZEPHYR 750 1995 EUROPE UK FR NL AR FG GR SP ST

CARBURETOR ZR750C5 ZEPHYR 750 1995 EUROPE UK FR NL AR FG GR SP ST
CARBURETOR ZR750C5 ZEPHYR 750 1995 EUROPE UK FR NL AR FG GR SP ST
CARBURETOR ZR750C5 ZEPHYR 750 1995 EUROPE UK FR NL AR FG GR SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121675
ref: 11012
CAP,DRAIN SCREW
110121675
€ 6.00
13091
130911866
ref: 13091
ARFGFRNLSTUK
HOLDER,HEATER
€ 6.50
13168
131681280
ref: 13168
LEVER,DL
131681280
€ 92.00
13169
131691962
ref: 13169
PLATE,THROTTLE CABLE
131691962
€ 48.00
13169A
131691963
ref: 13169A
PLATE,CARBURETOR STAY
€ 85.00
13183
131831033
ref: 13183
PLATE,STARTER CABLE
131831033
€ 26.00
13270
132701075
ref: 13270
ARFGFRNLSTUK
PLATE,WIRE
€ 5.00
13270A
132701145
ref: 13270A
ARFGFRNLSTUK
PLATE,HEATER STAY
132701145
€ 8.50
15003
150031149
ref: 15003
EUGRNRSP
CARBURETOR-ASSY
€ 1,110.00
15003A
150031150
ref: 15003A
FGFRNLUK
CARBURETOR-ASSY
€ 1,492.50
15003B
150031151
ref: 15003B
ST
CARBURETOR-ASSY
€ 1,221.00
15003C
150031152
ref: 15003C
AR
CARBURETOR-ASSY
€ 1,492.50
15011
150111029
ref: 15011
FGFRNLUK
CARBURETOR,LH,OUTISDE
€ 957.50
15011A
150111030
ref: 15011A
FGFRNLUK
CARBURETOR,LH,INSIDE
€ 957.50
15011B
150111031
ref: 15011B
FGFRNLUK
CARBURETOR,RH,INSIDE
€ 957.50
15011C
150111032
ref: 15011C
FGFRNLUK
CARBURETOR,RH,OUTSIDE
€ 957.50
15011D
150111045
ref: 15011D
AR
CARBURETOR,LH,OUTSIDE
€ 957.50
15011E
150111046
ref: 15011E
AR
CARBURETOR,LH,INSIDE
€ 957.50
15011F
150111047
ref: 15011F
AR
CARBURETOR,RH,INSIDE
€ 957.50
15011G
150111048
ref: 15011G
AR
CARBURETOR,RH,OUTSIDE
€ 957.50
15011H
150111053
ref: 15011H
EUGRNRSP
CARBURETOR,LH,OUTSIDE
€ 655.50
15011I
150111054
ref: 15011I
EUGRNRSP
CARBURETOR,LH,INSIDE
€ 655.50
15011J
150111055
ref: 15011J
EUGRNRSP
CARBURETOR,RH,INSIDE
€ 655.50
15011K
150111056
ref: 15011K
EUGRNRSP
CARBURETOR,RH,OUTSIDE
€ 655.50
15011L
150111101
ref: 15011L
ST
CARBURETOR,LH,OUTSIDE
€ 957.50
15011M
150111102
ref: 15011M
ST
CARBURETOR,LH,INSIDE
€ 957.50
15011N
150111103
ref: 15011N
ST
CARBURETOR,RH,INSIDE
€ 957.50
15011O
150111104
ref: 15011O
ST
CARBURETOR,RH,OUTSIDE
€ 957.50
16021
160211165
ref: 16021
SCREW-THROTTLE STOP
€ 9.00
21176
211761067
ref: 21176
ARFGFRNLSTUK
SENSOR,HETER
€ 100.00
21177
211771053
ref: 21177
ARFGFRNLSTUK
CONTROLLER
€ 163.50
21197
211971004
ref: 21197
ARFGFRNLSTUK
HEATER
211971004
€ 119.50
26011
260111600
ref: 26011
ARFGFRNLSTUK
WIRE-LEAD
260111600
€ 38.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051112
ref: 92005
FITTING,FUEL,T-TYPE
920051112
€ 10.00
92005A
920051288
ref: 92005A
FITTING
920051288
€ 22.00
92005B
920051306
ref: 92005B
FITTING
920051306
€ 19.00
92005C
920051310
ref: 92005C
FITTING
920051310
€ 25.00
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091365
ref: 92009A
SCREW
920091365
€ 4.50
92009B
920091706
ref: 92009B
ARFGFRNLSTUK
SCREW
€ 2.00
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
92037A
920371477
ref: 92037A
ARST
CLAMP,TUBE
920371477
€ 3.00
92037A
920371477
ref: 92037A
EUFGFRGRNLNRSPUK
CLAMP,TUBE
920371477
€ 3.00
92059
920591173
ref: 92059
TUBE,5X9X200
€ 16.50
92059A
920591236
ref: 92059A
TUBE,FUEL
€ 25.00
92059B
920591598
ref: 92059B
TUBE,6.5X9.5X260
€ 20.50
92059C
920591626
ref: 92059C
EUFGFRGRNLNRSPUK
TUBE,5X9X320
920591626
€ 16.50
92059D
920591627
ref: 92059D
TUBE,5X9X90
920591627
€ 7.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92081C
920811913
ref: 92081C
SPRING,STARTER LEVER
920811913
€ 15.00
92160
921601537
ref: 92160
ARFGFRNLSTUK
DAMPER
€ 4.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223D0410
ref: 223A
SCREW-PAN-WS-CROS
223D0410
€ 2.50
92170
921701432
ref: 92170
ARFGFRNLSTUK
CLAMP,HARNESS
€ 2.50
92170A
921701433
ref: 92170A
ARFGFRNLSTUK
CLAMP,HEATER
€ 5.50
92190
921901494
ref: 92190
ARFGFRNLSTUK
TUBE
€ 3.50
