CYLINDER/PISTON(S)

ZR750C5 ZEPHYR 750 1995 EUROPE UK FR NL AR FG GR SP ST

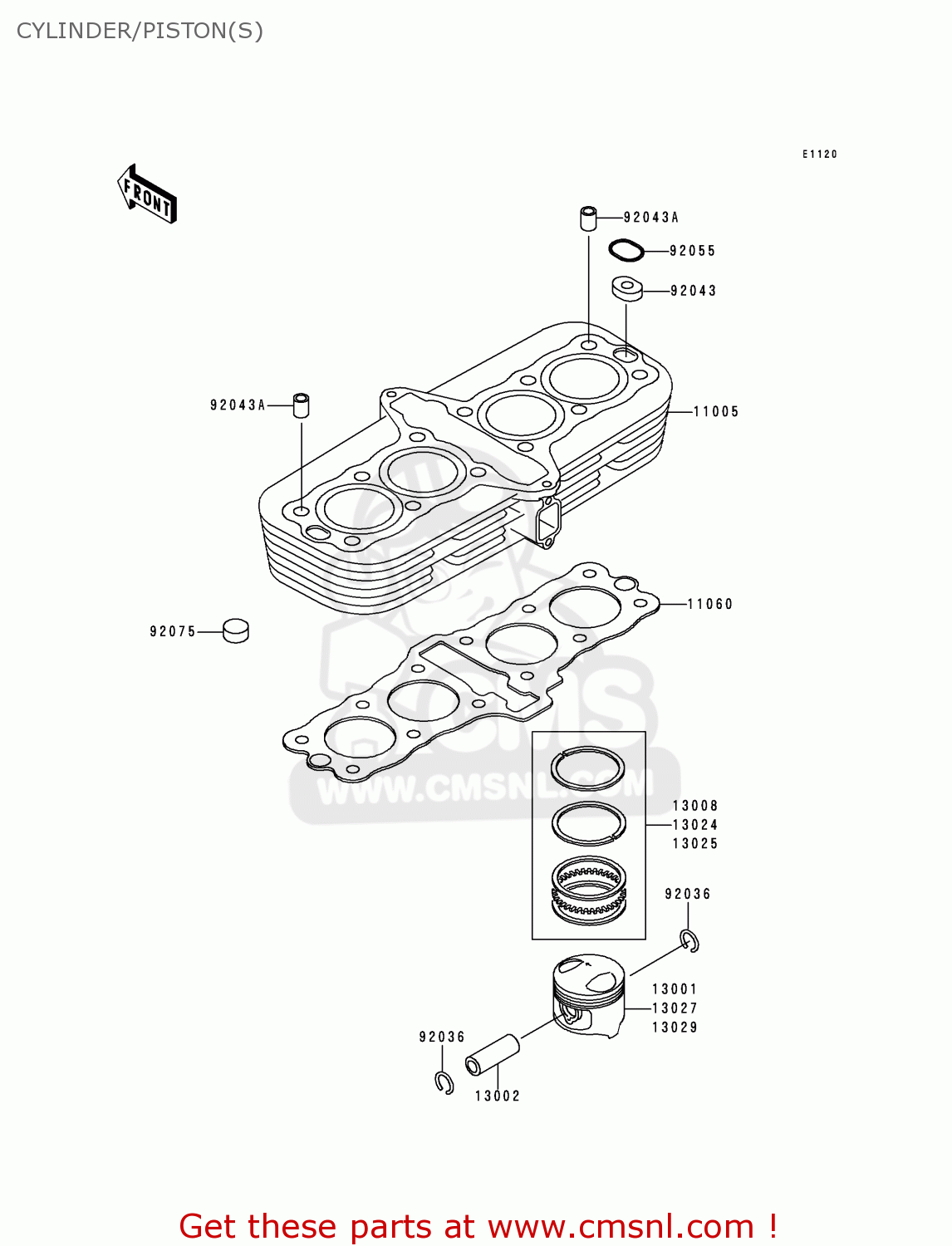

Cylinder/piston(s) diagram ZR750C5 ZEPHYR 750 1995 EUROPE UK FR NL AR FG GR SP ST

prices are in EUR

ref

part #

description

quantity

11005

110051788
ref: 11005

CYLINDER-ENGINE

€ 1,257.50

11060

110601698
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 23.50

13001

130011343
ref: 13001

PISTON-ENGINE,STD

€ 94.50

13002

130021001
ref: 13002

PIN-PISTON

€ 4.00

13008

130085046
ref: 13008

RING-SET-PISTON,STD

€ 56.00

13024

130245022
ref: 13024

RING-SET-PISTON LL,O/

€ 67.00

13025

130255022
ref: 13025

RING-SET-PISTON L,O/S

€ 67.00

13027

130271041
ref: 13027

PISTON-ENGINE LL,O/S,

€ 94.50

13029

130291042
ref: 13029

PISTON-ENGINE L,O/S,

€ 94.50

92036

92036005
ref: 92036

CIRCLIP-PISTON PIN

€ 2.50

92043

920431210
ref: 92043

PIN,OIL LINE

€ 4.50

92043A

920431266
ref: 92043A

PIN,11X14X12.3

€ 1.00

92055

920551147
ref: 92055

RING-O,CYLINDER OIL L

€ 6.00

92075

92075182
ref: 92075

DAMPER

€ 2.50

CYLINDER/PISTON(S)
