SWING ARM

ZR750C3 ZEPHYR 1993 USA CALIFORNIA CANADA

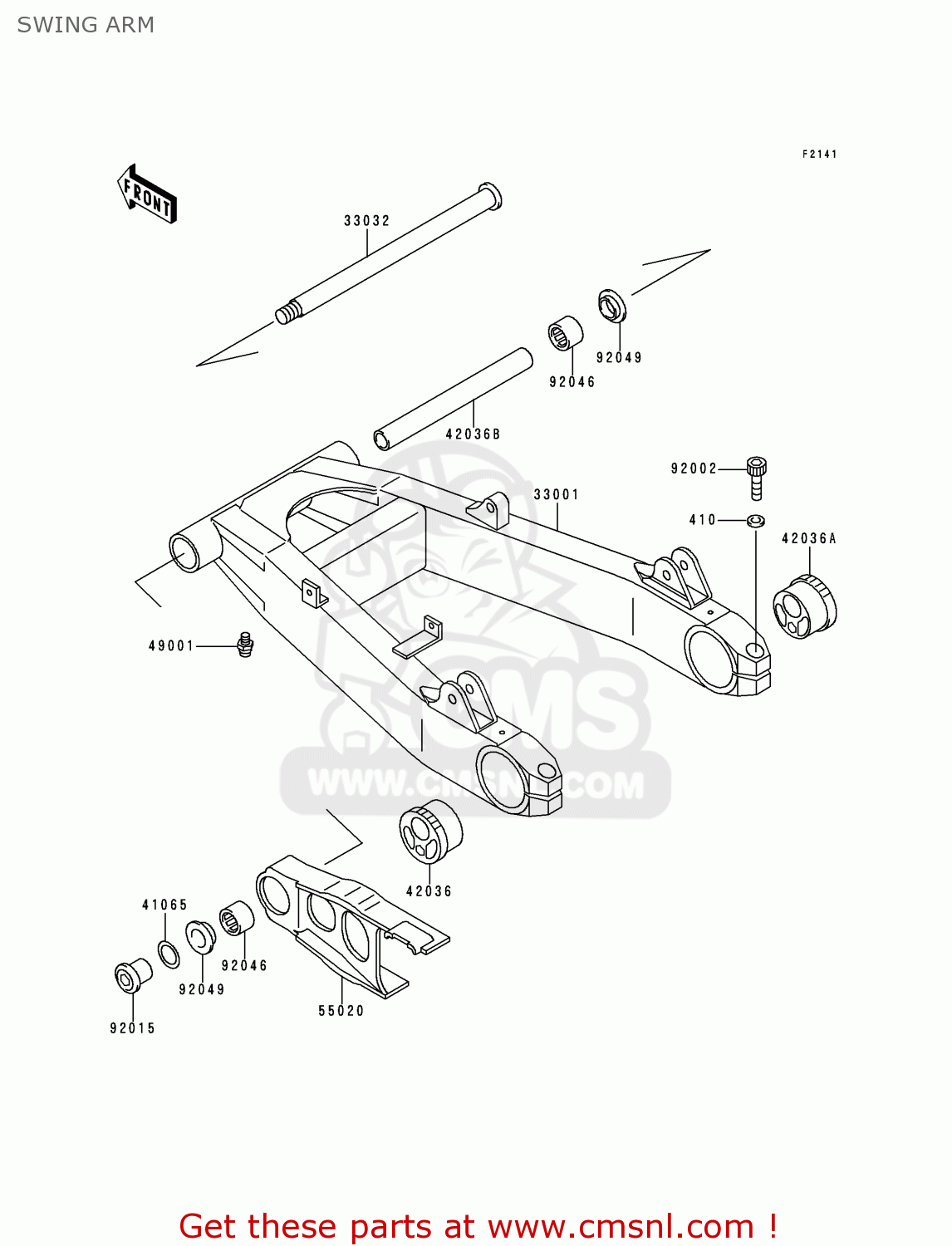

Swing arm diagram ZR750C3 ZEPHYR 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

410

410E1000
ref: 410

W-PLAIN-S

€ 0.50

33001

330011372CE
ref: 33001

ARM-COMP-SWING,SILVER

€ 1,152.00

33032

330321163
ref: 33032

SHAFT-SWING ARM

€ 59.50

41065

41065005
ref: 41065

WASHER,24.5X32X0.8

€ 2.00

42036

420361147
ref: 42036

SLEEVE,REAR AXLE,LH

€ 78.00

42036A

420361148
ref: 42036A

SLEEVE,REAR AXLE,RH

€ 78.00

42036B

420361264
ref: 42036B

SLEEVE,SWING ARM,L=23

€ 50.50

49001

490011051
ref: 49001

NIPPLE-GREASE,ROD BOL

€ 2.00

55020

550201383
ref: 55020

GUARD,CHAIN

€ 38.00

92002

920021452
ref: 92002

BOLT

€ 4.00

92015

920151835
ref: 92015

NUT,16MM

€ 11.50

92046

920461202
ref: 92046

BEARING-NEEDLE,BM2824

€ 25.00

92049

920491181
ref: 92049

SEAL-OIL

€ 7.50
