BRAKE PEDAL

ZR750C3 ZEPHYR 1993 USA CALIFORNIA CANADA

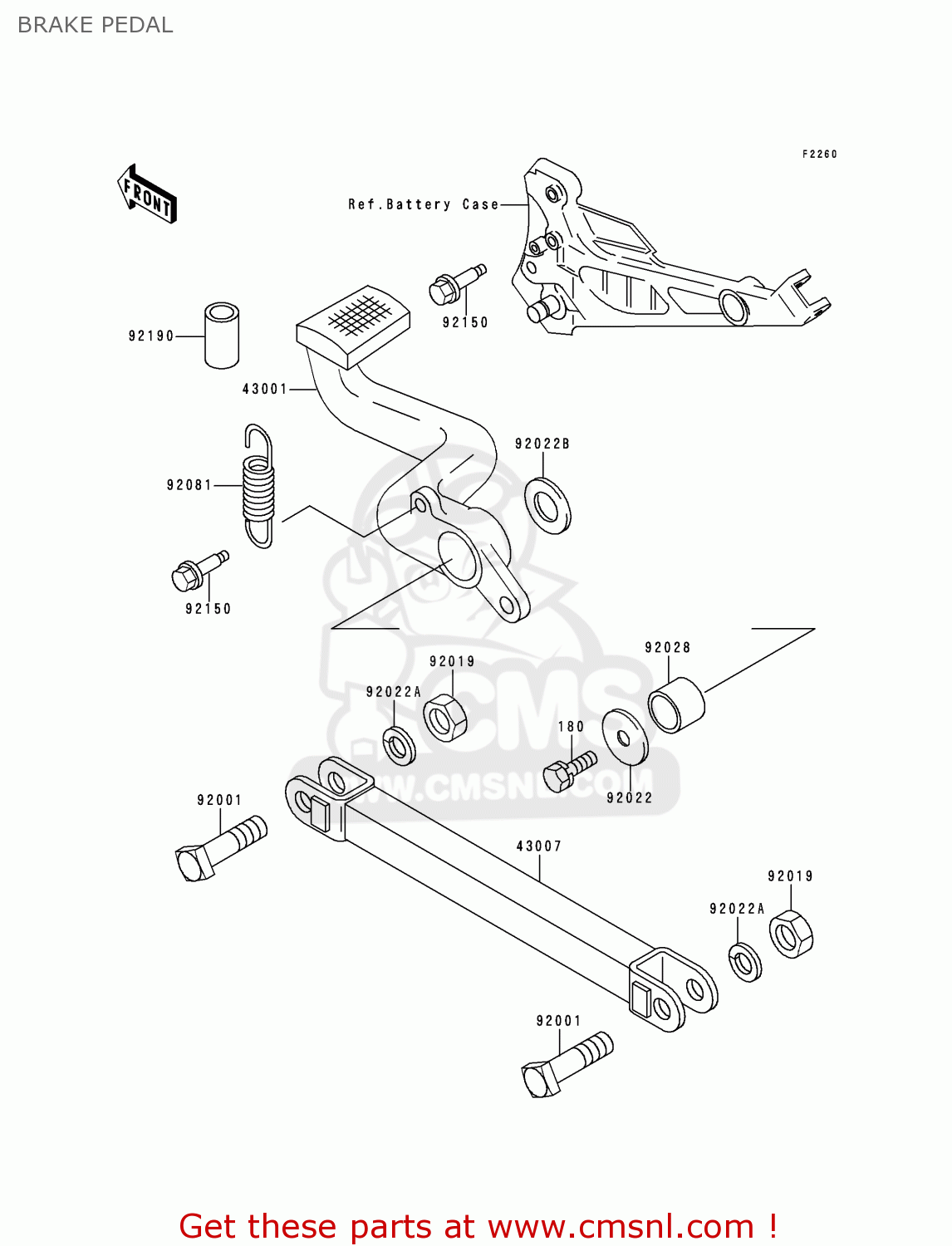

Brake pedal diagram ZR750C3 ZEPHYR 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

180

180H0614
ref: 180

BOLT-UPSET-WS

€ 1.00

43001

430011291
ref: 43001

LEVER-BRAKE,PEDAL

€ 88.50

43007

430071155CE
ref: 43007

ROD-TORQUE,SILVER NO.

€ 58.50

92001

920011307
ref: 92001

BOLT,SQUARE HEAD

€ 4.50

92019

92019021
ref: 92019

NUT,LOCK,10M/M

€ 2.00

92022

920221282
ref: 92022

WASHER,7X28X1.6

€ 3.00

92022A

920221540
ref: 92022A

WASHER,SPRING,10MM

€ 2.50

92022B

92022326
ref: 92022B

WASHER,15.3X24X1

€ 2.50

92028

920281282
ref: 92028

BUSHING,BRAKE PEDAL

€ 9.50

92081

920811147
ref: 92081

SPRING,BRAKE PEDAL

€ 8.00

92150

921501113
ref: 92150

BOLT,CENTER STAND SPR

€ 4.50

92190

921901185
ref: 92190

TUBE

€ 3.00
