CARBURETOR

ZR750C3 ZEPHYR 1993 USA CALIFORNIA CANADA

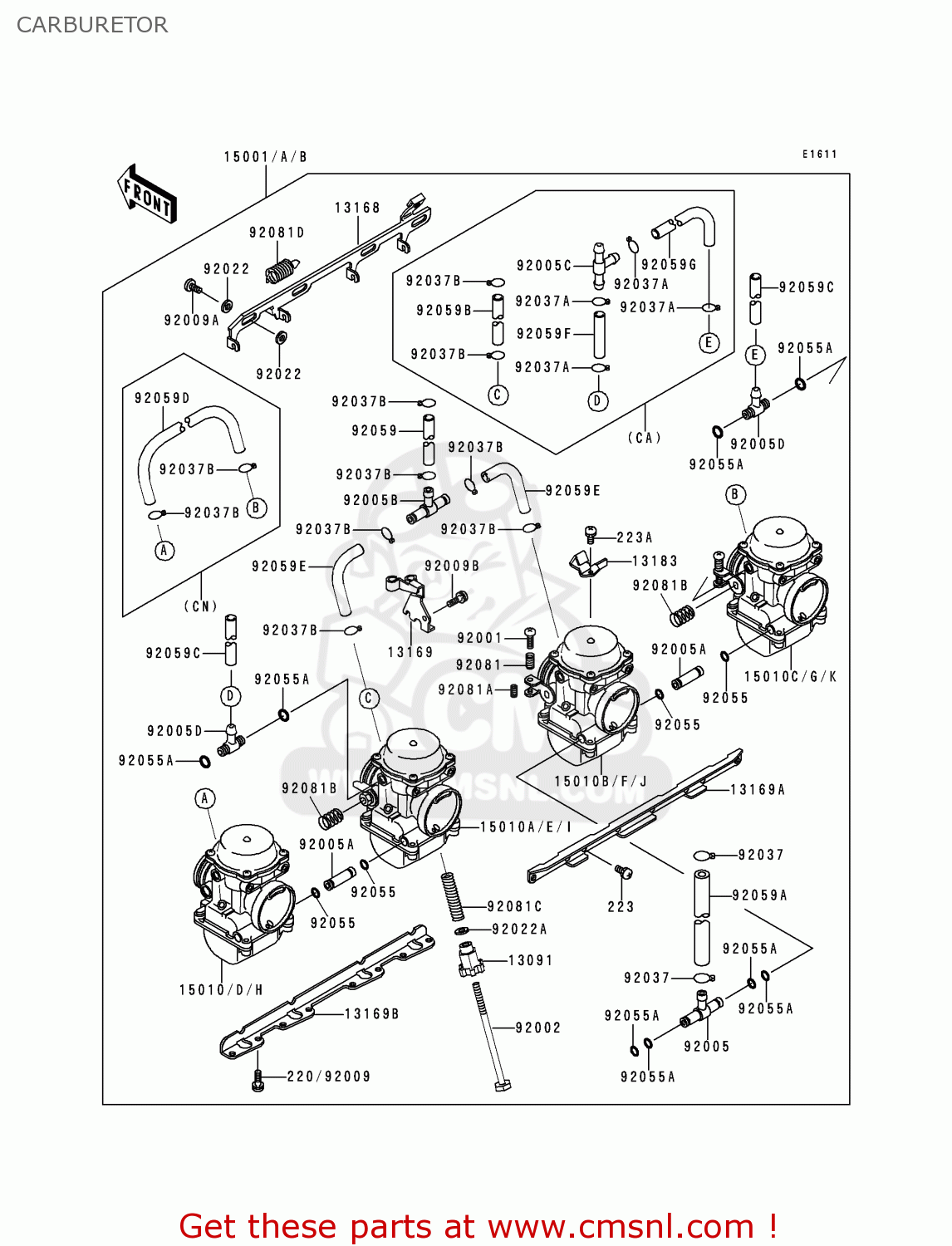

Carburetor diagram ZR750C3 ZEPHYR 1993 USA CALIFORNIA CANADA

CARBURETOR ZR750C3 ZEPHYR 1993 USA CALIFORNIA CANADA
CARBURETOR ZR750C3 ZEPHYR 1993 USA CALIFORNIA CANADA
CARBURETOR ZR750C3 ZEPHYR 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13091
130911382
ref: 13091
HOLDER,THROTTLE STOP
130911382
€ 11.00
13168
131681280
ref: 13168
LEVER,DL
131681280
€ 92.00
13169
131691962
ref: 13169
PLATE,THROTTLE CABLE
131691962
€ 48.00
13169A
131691963
ref: 13169A
PLATE,CARBURETOR STAY
€ 85.00
13169B
131691964
ref: 13169B
PLATE,CARBURETOR STAY
€ 85.00
13183
131831033
ref: 13183
PLATE,STARTER CABLE
131831033
€ 26.00
15001
150011678
ref: 15001
CN
CARBURETOR-ASSY
€ 2,044.00
15010
150101167
ref: 15010
CN
CARBURETOR,LH,OUTSIDE
€ 655.50
15010A
150101168
ref: 15010A
CN
CARBURETOR,LH,INSIDE
€ 655.50
15010B
150101169
ref: 15010B
CN
CARBURETOR,RH,INSIDE
€ 655.50
15010C
150101170
ref: 15010C
CN
CARBURETOR,RH,OUTSIDE
€ 624.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92002
920021552
ref: 92002
BOLT,THROTTLE STOP SC
920021552
€ 10.00
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
920051108
€ 16.50
92005A
920051109
ref: 92005A
FITTING,FUEL,I-TYPE
920051109
€ 25.00
92005B
920051112
ref: 92005B
CNUS
FITTING,FUEL,T-TYPE
920051112
€ 10.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223D0410
ref: 223A
SCREW-PAN-WS-CROS
223D0410
€ 2.50
92005D
920051125
ref: 92005D
FITTING,T-TYPE
920051125
€ 18.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
920091262
€ 4.00
92009B
920091365
ref: 92009B
SCREW
920091365
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
92037B
920371477
ref: 92037B
CN
CLAMP,TUBE
920371477
€ 3.00
92055
920551004
ref: 92055
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
920551223
€ 3.50
92059
920591173
ref: 92059
CNUS
TUBE,5X9X200
€ 16.50
92059A
920591236
ref: 92059A
TUBE,FUEL
€ 25.00
92059C
920591598
ref: 92059C
CNUS
TUBE,6.5X9.5X260
€ 20.50
92059D
920591626
ref: 92059D
CN
TUBE,5X9X320
920591626
€ 16.50
92059E
920591627
ref: 92059E
CNUS
TUBE,5X9X90
920591627
€ 7.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92081C
920811875
ref: 92081C
SPRING,THROTTLE STOP
920811875
€ 5.50
92081D
920811913
ref: 92081D
SPRING,STARTER LEVER
920811913
€ 15.00
