FRONT FORK
ZR550B8 ZEPHYR 1997 AUSTRIA FG NR

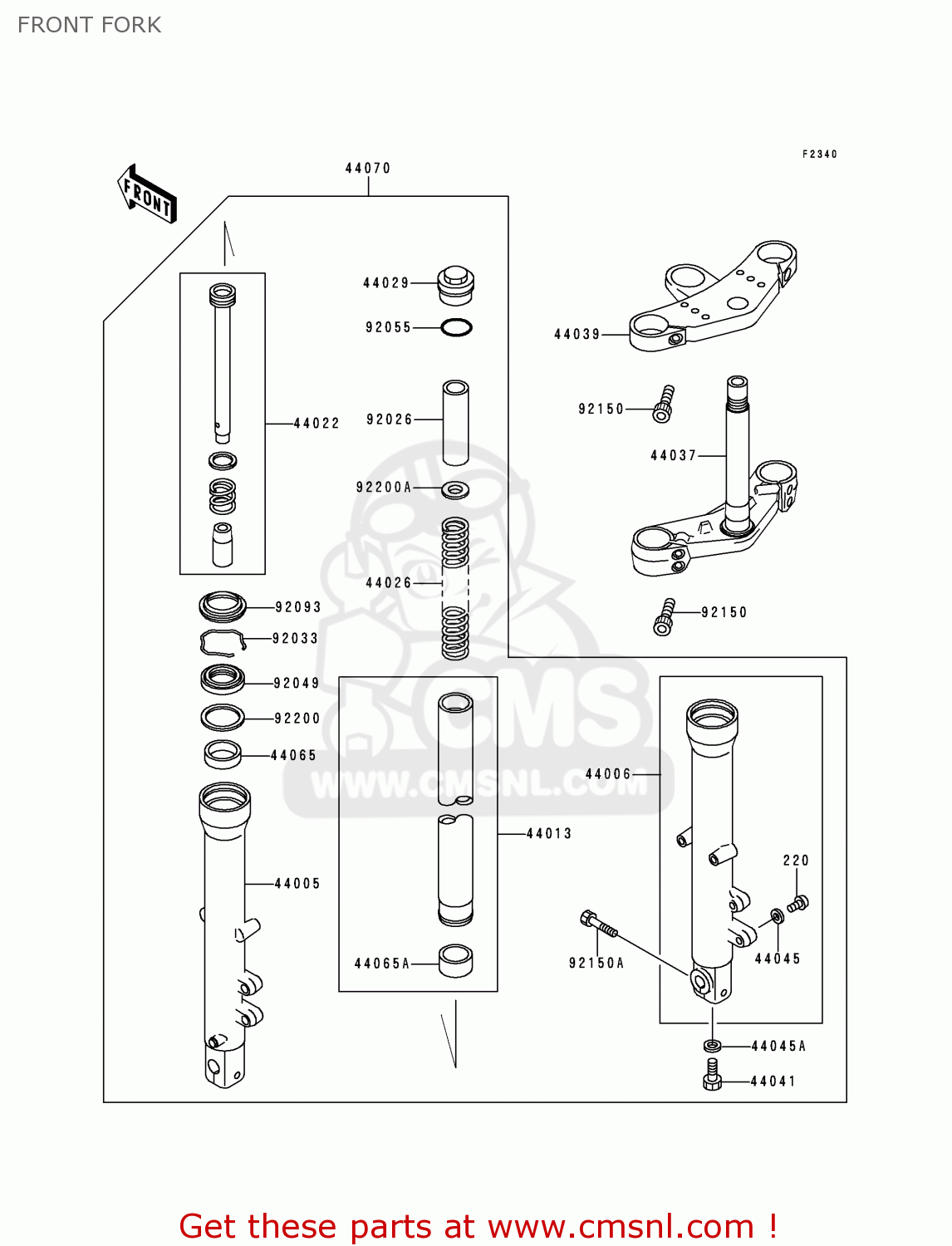

Front fork diagram ZR550B8 ZEPHYR 1997 AUSTRIA FG NR
FRONT FORK ZR550B8 ZEPHYR 1997 AUSTRIA FG NR
×
prices are in EUR
ref
part #
description
quantity
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
44005
440051296
ref: 44005
PIPE-LEFT FORK OUTER
€ 345.00
44006
440061293
ref: 44006
PIPE-RIGHT FORK OUTER
€ 380.50
44013
440131301
ref: 44013
PIPE-FORK INNER
€ 183.50
44022
440221245
ref: 44022
CYLINDER-FORK
€ 103.00
44026
440261545
ref: 44026
SPRING-FRONT FORK
€ 78.50
44029
440291140
ref: 44029
SEAT-FORK SPRING
€ 26.00
44037
440371259
ref: 44037
HOLDER-FORK UNDER
€ 274.00
44039
440391243
ref: 44039
HOLDER-FORK UPPER
€ 238.50
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
€ 4.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44045A
44045057
ref: 44045A
GASKET (NAS)
€ 3.00
44065
440651093
ref: 44065
BUSHING-FRONT FORK,FO
€ 16.00
44065A
440651094
ref: 44065A
BUSHING-FRONT FORK,IN
€ 14.00
44070
440705137
ref: 44070
DAMPER-ASSY,FORK
€ 1,522.00
92026
920261379
ref: 92026
SPACER
€ 4.50
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92049
920491343
ref: 92049
SEAL-OIL,FORK OUTER T
€ 16.00
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92093
920931288
ref: 92093
SEAL,FORK OUTER TUBE
€ 18.00
92150
921501172
ref: 92150
BOLT,SOCKET,8X25
€ 1.50
92150A
921501194
ref: 92150A
BOLT,SOCKET,8X40
€ 2.00
92200
922001029
ref: 92200
WASHER
€ 5.50
92200A
922001187
ref: 92200A
WASHER
€ 5.50
