CRANKSHAFT
ZR550B8 ZEPHYR 1997 AUSTRIA FG NR

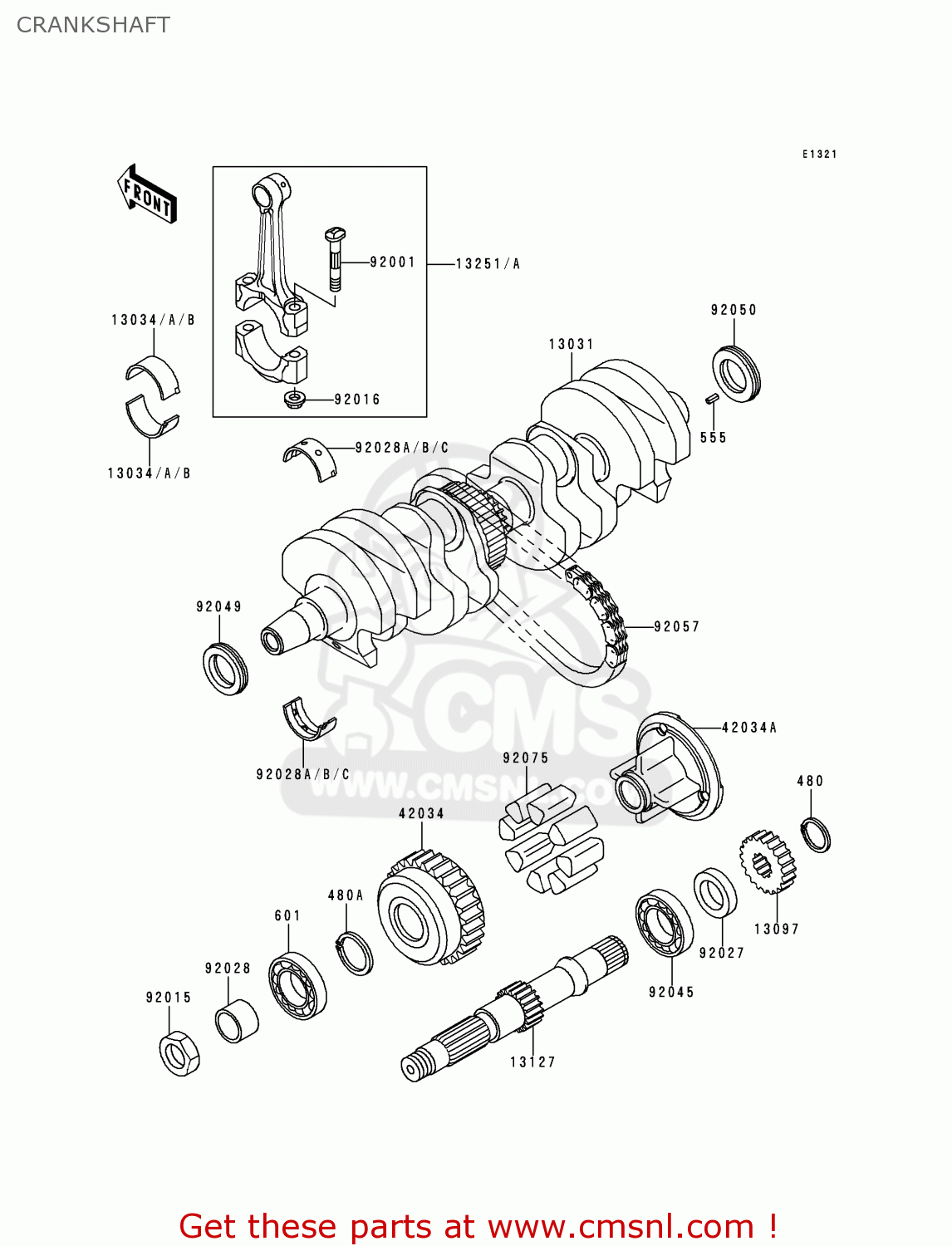

Crankshaft diagram ZR550B8 ZEPHYR 1997 AUSTRIA FG NR
CRANKSHAFT ZR550B8 ZEPHYR 1997 AUSTRIA FG NR
×
prices are in EUR
ref
part #
description
quantity
480
480J2200
ref: 480
CIRCLIP-TYPE-C,22MM
€ 3.00
480A
480J2800
ref: 480A
CIRCLIP-TYPE-C,28MM
€ 3.50
555
555A0408
ref: 555
PIN-SPRING,4X8
€ 2.50
601
601B6205
ref: 601
BEARING-BALL,#6205C3
€ 14.00
13031
130311014
ref: 13031
CRANKSHAFT-COMP
€ 1,480.50
13034
130341067
ref: 13034
BUSHING,CONNECTING RO
€ 13.00
13034A
130341068
ref: 13034A
BUSHING,CONNECTING RO
€ 13.00
13034B
130341069
ref: 13034B
BUSHING,CONNECTING RO
€ 13.00
13097
130971348
ref: 13097
GEAR-PRIMARY SPUR,26T
€ 97.00
13127
131271007
ref: 13127
SHAFT,SECONDARY
€ 162.00
13251
132511004EE
ref: 13251
CONNECTING ROD ASSY
€ 194.50
13251A
132511004GG
ref: 13251A
CONNECTING ROD ASSY
€ 194.50
42034
420341004
ref: 42034
COUPLING,OUTER,SECOND
€ 109.00
42034A
420341005
ref: 42034A
COUPLING,INNER,SECOND
€ 121.00
92001
920011053
ref: 92001
BOLT,CONNECTING ROD
€ 5.50
92015
92015019
ref: 92015
NUT,18MM
€ 4.00
92016
92016060
ref: 92016
NUT, CONNECTING ROD
€ 3.50
92027
920271438
ref: 92027
COLLAR,22X34X7.3
€ 4.00
92028
920281037
ref: 92028
BUSHING,20X25X16.6
€ 16.00
92028A
920281796
ref: 92028A
BUSHING,CRANKSHAFT,BL
€ 13.50
92028B
920281797
ref: 92028B
BUSHING,CRANKSHAFT,BL
€ 12.00
92028C
920281798
ref: 92028C
BUSHING,CRANKSHAFT,BR
€ 11.50
92045
920451017
ref: 92045
BEARING-BALL,#63/22X
€ 32.50
92049
920491013
ref: 92049
OIL SEAL,HSCY25X36X7
€ 8.00
92050
92050081
ref: 92050
OIL SEAL, HSCY 25397
€ 8.00
92057
920571011
ref: 92057
CHAIN,PRIMARY DRIVE
€ 46.50
92075
920751070
ref: 92075
DAMPER,COUPLING
€ 4.50
