AIR CLEANER
ZR550B8 ZEPHYR 1997 AUSTRIA FG NR

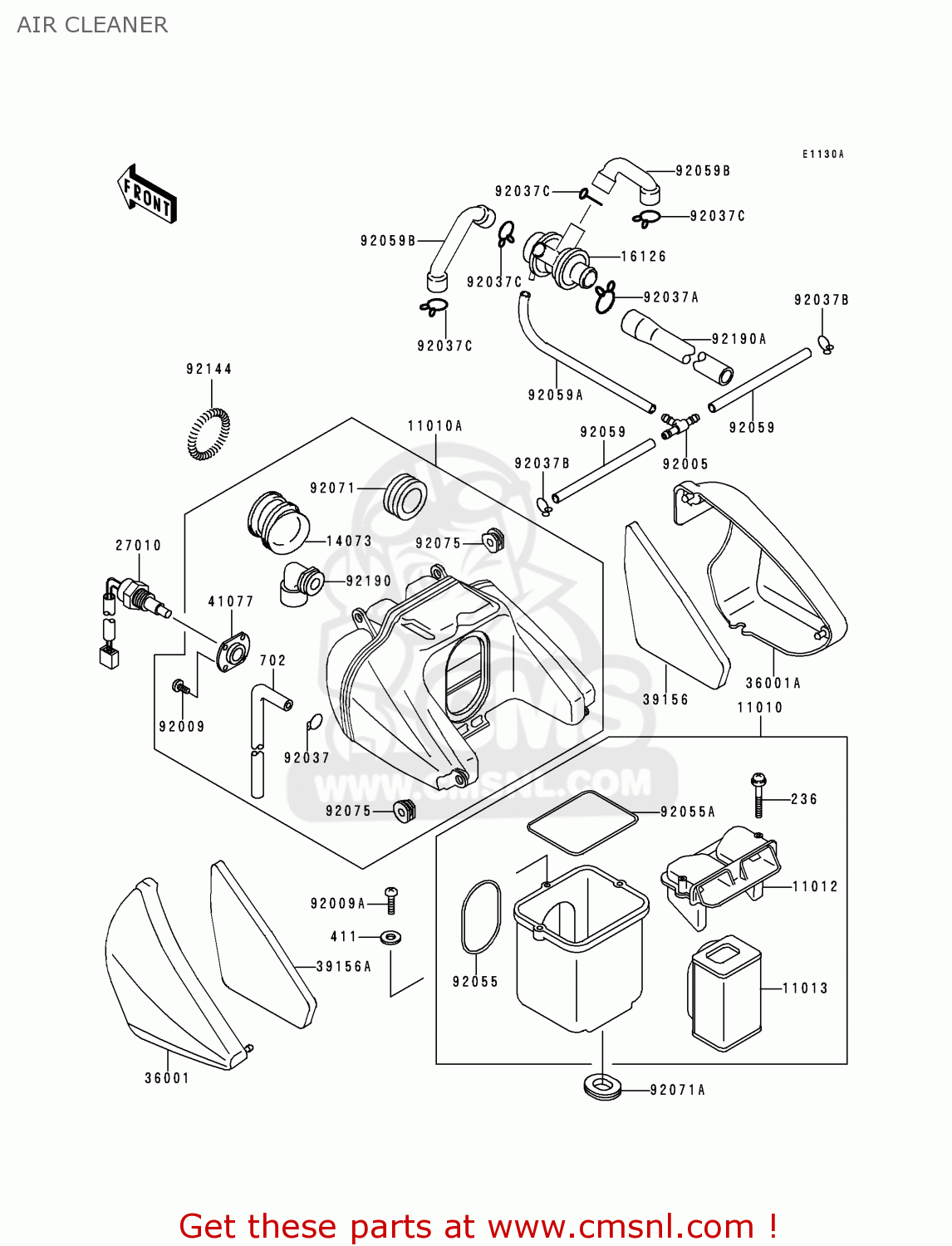

Air cleaner diagram ZR550B8 ZEPHYR 1997 AUSTRIA FG NR
AIR CLEANER ZR550B8 ZEPHYR 1997 AUSTRIA FG NR
×
prices are in EUR
ref
part #
description
quantity
11010
110101384
ref: 11010
ARFG
FILTER-ASSY-AIR
€ 158.50
11010A
110101548
ref: 11010A
ARFG
FILTER-ASSY-AIR
€ 176.00
11012
110121709
ref: 11012
ARFG
CAP,AIR FILTER
€ 13.00
11013
110131157
ref: 11013
ARFG
ELEMENT-AIR FILTER
€ 28.50
14073
140731211
ref: 14073
ARFG
DUCT,CARBURETOR
€ 24.00
16126
161261017
ref: 16126
ARFG
VALVE,AIR SWITCH
€ 183.00
27010
270101320
ref: 27010
ARFG
SWITCH
€ 61.50
36001
360011420FR
ref: 36001
ARFG
COVER-SIDE,AIR FILTER
€ 59.00
36001A
360011421FR
ref: 36001A
ARFG
COVER-SIDE,AIR FILTER
€ 62.00
39156
391561351
ref: 39156
ARFG
PAD,RH
€ 20.50
39156A
391561352
ref: 39156A
ARFG
PAD
€ 20.50
41077
410771075
ref: 41077
ARFG
ADAPTER
€ 23.00
92005
920051017
ref: 92005
ARFG
FITTING,TUBE
€ 6.50
92009
920091051
ref: 92009
ARFG
SCREW,5X12
€ 2.50
92009A
920091399
ref: 92009A
ARFG
SCREW,TAPPING,5X20
€ 2.00
92037
92037010
ref: 92037
ARFG
CLAMP-FUEL PIPE
€ 2.50
92037A
920371076
ref: 92037A
ARFG
CLAMP,TUBE
€ 4.00
92037B
920371712
ref: 92037B
ARFG
CLAMP
€ 3.00
92037C
92037213
ref: 92037C
ARFG
CLAMP, BREATHER TUBE
€ 2.50
92055
920551137
ref: 92055
ARFG
RING-O,91X6
€ 6.00
92055A
920551457
ref: 92055A
ARFG
RING-O,AIR FILTER CAP
€ 5.50
92059
920591033
ref: 92059
ARFG
TUBE,4X9X155
€ 12.50
236
236B0540
ref: 236
ARFG
SCREW-PAN-WSP-CROS
€ 2.50
411
411F0500
ref: 411
ARFG
WASHER,PLANE,5MM
€ 0.50
702
702A05350
ref: 702
ARFG
TUBE-RUBBER,5X350
€ 50.00
92059A
920591043
ref: 92059A
ARFG
TUBE,TUBE 4X9X290
€ 7.00
92059B
920591208
ref: 92059B
ARFG
TUBE,AIR
€ 13.00
92071
920711028
ref: 92071
ARFG
GROMMET AIR FILTER
€ 4.50
92071A
920711123
ref: 92071A
ARFG
GROMMET,AIR FILTER
€ 4.00
92075
920751470
ref: 92075
ARFG
DAMPER,AIR FILTER
€ 4.50
92144
921441771
ref: 92144
ARFG
SPRING,AIR FILTER DUC
€ 8.00
92190
921901041
ref: 92190
ARFG
TUBE,BREATHER
€ 13.50
92190A
921901144
ref: 92190A
ARFG
TUBE,VALVE-AIR FILTER
€ 7.50
