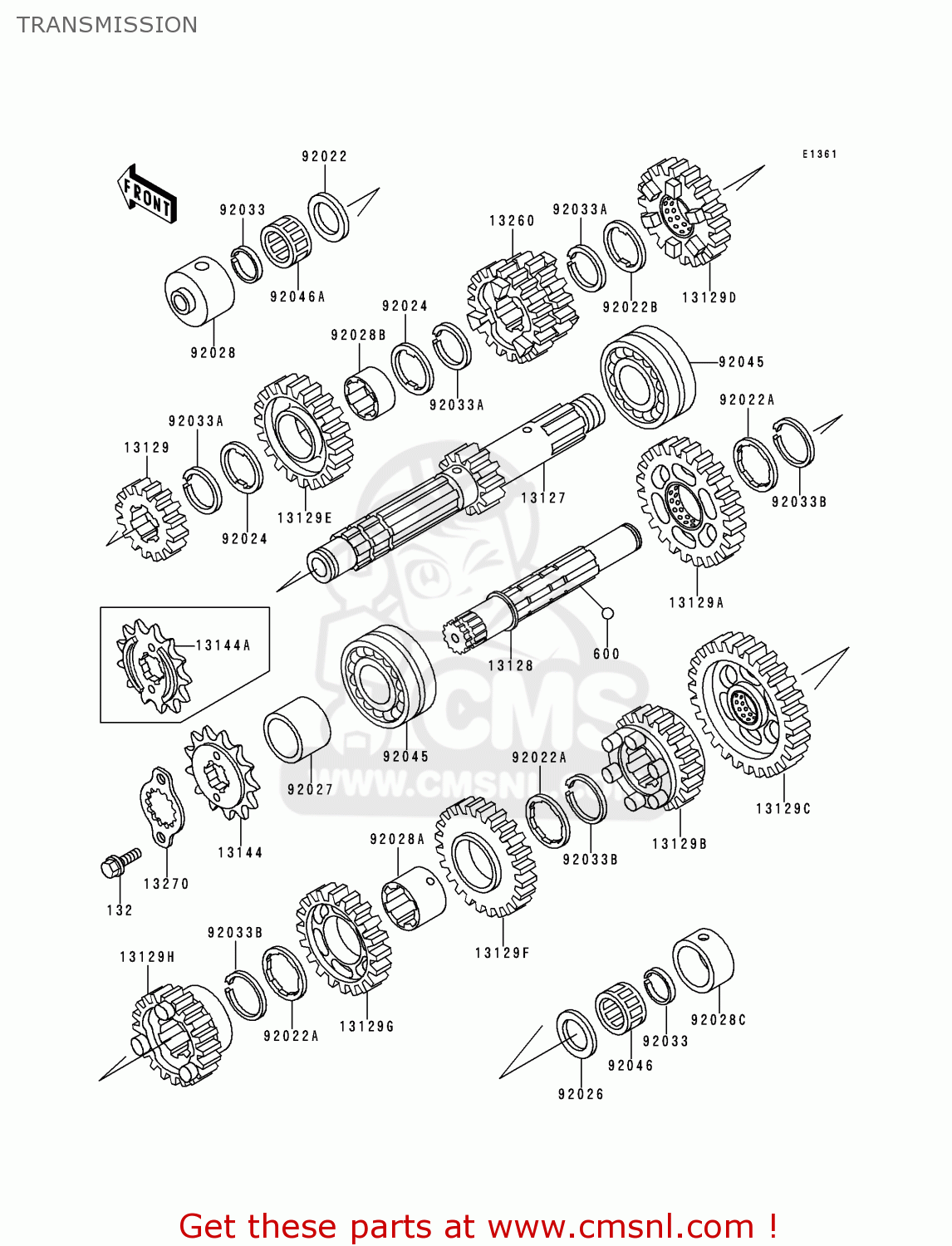

TRANSMISSION

ref

part #

description

quantity

132

132G0608
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271151
ref: 13127

SHAFT-TRANSMISSION IN

€ 190.00

13128

131281119
ref: 13128

SHAFT-TRANSMISSION OU

€ 179.50

13129

131291077
ref: 13129

2ND GEAR,DRIVE,18T

€ 79.50

13129A

131291078
ref: 13129A

2ND GEAR,OUTPUT,32T

€ 75.50

13129B

131291083
ref: 13129B

GEAR,OUTPUT 5TH,25T

€ 114.50

13129C

131291564
ref: 13129C

GEAR,OUTPUT LOW,36T

€ 120.50

13129D

131291657
ref: 13129D

GEAR,INPUT 5TH,26T

€ 134.50

13129E

131291658
ref: 13129E

GEAR,INPUT TOP,27T

€ 107.00

13129F

131291659
ref: 13129F

GEAR,OUTPUT 3RD,29T

€ 44.00

13129G

131291660
ref: 13129G

GEAR,OUTPUT 4TH,27T

€ 113.50

13129H

131291662
ref: 13129H

GEAR,OUTPUT TOP,23T

€ 45.00

13144

131441085
ref: 13144
CAUS

SPROCKET-OUTPUT,16T

€ 25.00

13144A

131441158
ref: 13144A
CN

SPROCKET-OUTPUT,16T

€ 30.50

13260

132601195
ref: 13260

GEAR,INPUT 3RD&4TH,21

€ 103.00

13270

132701060
ref: 13270

PLATE,SPROCKET

€ 5.50

92022

92022112
ref: 92022

WASHER,20.5X30X1,STEE

€ 6.00

92022A

920221139
ref: 92022A

WASHER,TOOTHED,28.3X3

€ 4.00

92022B

920221861
ref: 92022B

WASHER,TOOTHED,25.3X3

€ 4.00

92024

92024033
ref: 92024

WASHER,TOOTHED,25.5X3

€ 4.50

92026

920261022
ref: 92026

SPACER,20.3X30X2.0

€ 3.00

92027

920271106
ref: 92027

COLLAR,25X32X23.5

€ 8.00

92028

920281199
ref: 92028

BUSHING,INPUT SHAFT

€ 52.00

92028A

920281364
ref: 92028A

BUSHING,OUTPUT 3RD&4T

€ 22.00

92028B

920281552
ref: 92028B

BUSHING,INPUT TOP GEA

€ 17.50

92028C

92028180
ref: 92028C

BUSHING,OUTPUT SFT

€ 21.50

92033

92033015
ref: 92033

CIRCLIP

€ 2.50

92033A

92033026
ref: 92033A

CIRCLIP

€ 6.00

92033B

920331037
ref: 92033B

SNAP RING,25.9X1.2T

€ 3.00

92045

92045035
ref: 92045

BEARING-BALL,83993SH2

€ 66.50

92046

920461030
ref: 92046

BEARING-NEEDLE,VS20/1

€ 23.00

92046A

920461045
ref: 92046A

BEARING-NEEDLE,20V271

€ 25.00
