FENDER

ZR550B2 ZEPHYR 1991 USA CALIFORNIA CANADA

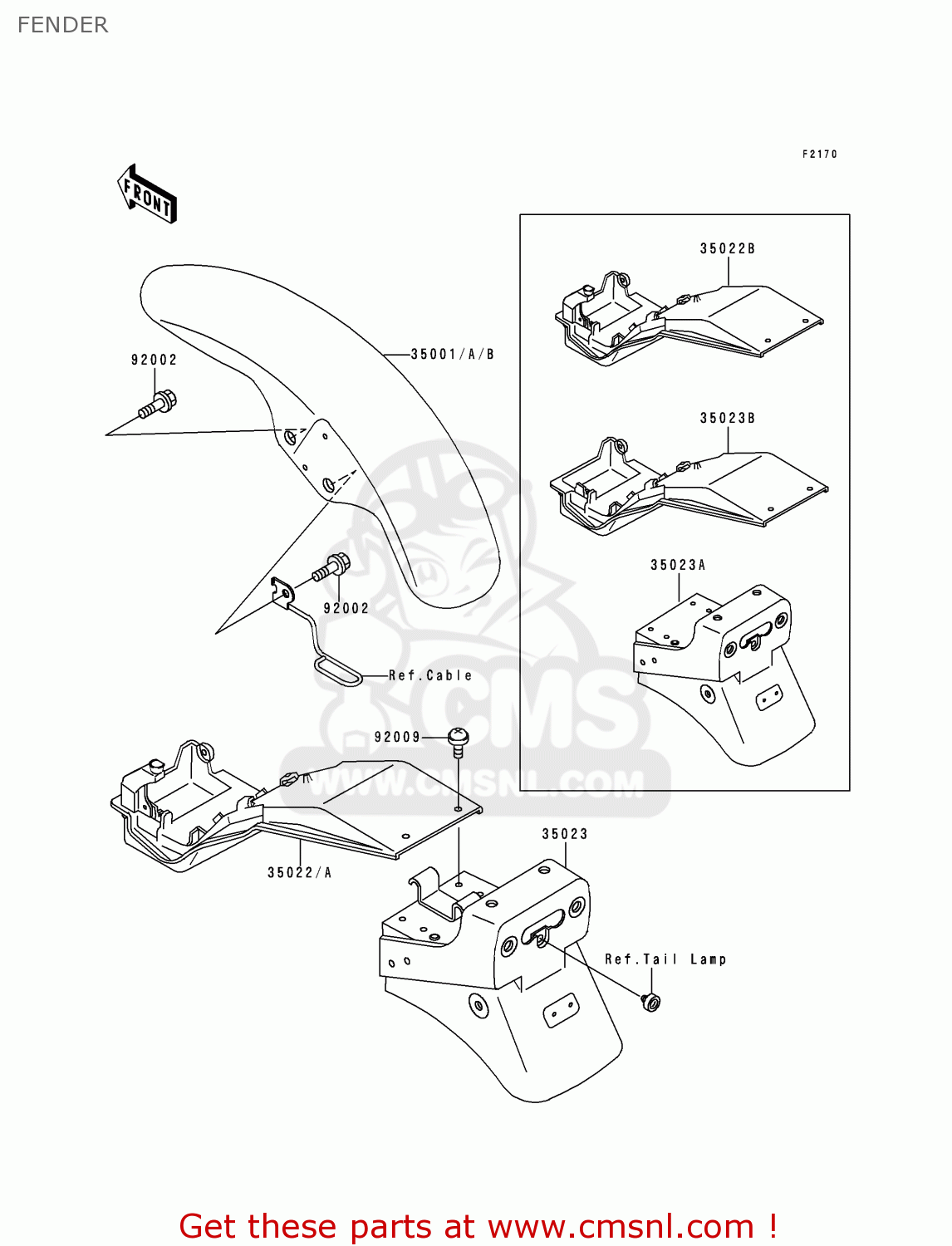

Fender diagram ZR550B2 ZEPHYR 1991 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

35001

350011138FC
ref: 35001

FENDER-ASSY-FRONT,C.A

€ 103.00

35001A

350011138L1
ref: 35001A

FENDER-ASSY-FRONT,C.C

€ 101.50

35022A

350221274
ref: 35022A
CNUS

FENDER-COMP-REAR,FR

€ 46.50

35022B

350221275
ref: 35022B
CA

REAR FENDER,COMPLETE,FRONT

€ 44.00

35023

350231287
ref: 35023
CNUS

FENDER-REAR,RR

€ 60.50

35023A

350231289
ref: 35023A
CA

FENDER-REAR,RR

€ 58.00

92002

920021134
ref: 92002

BOLT,8X20

€ 3.00

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00
