ELECTRICAL EQUIPMENT

ZR550B2 ZEPHYR 1991 USA CALIFORNIA CANADA

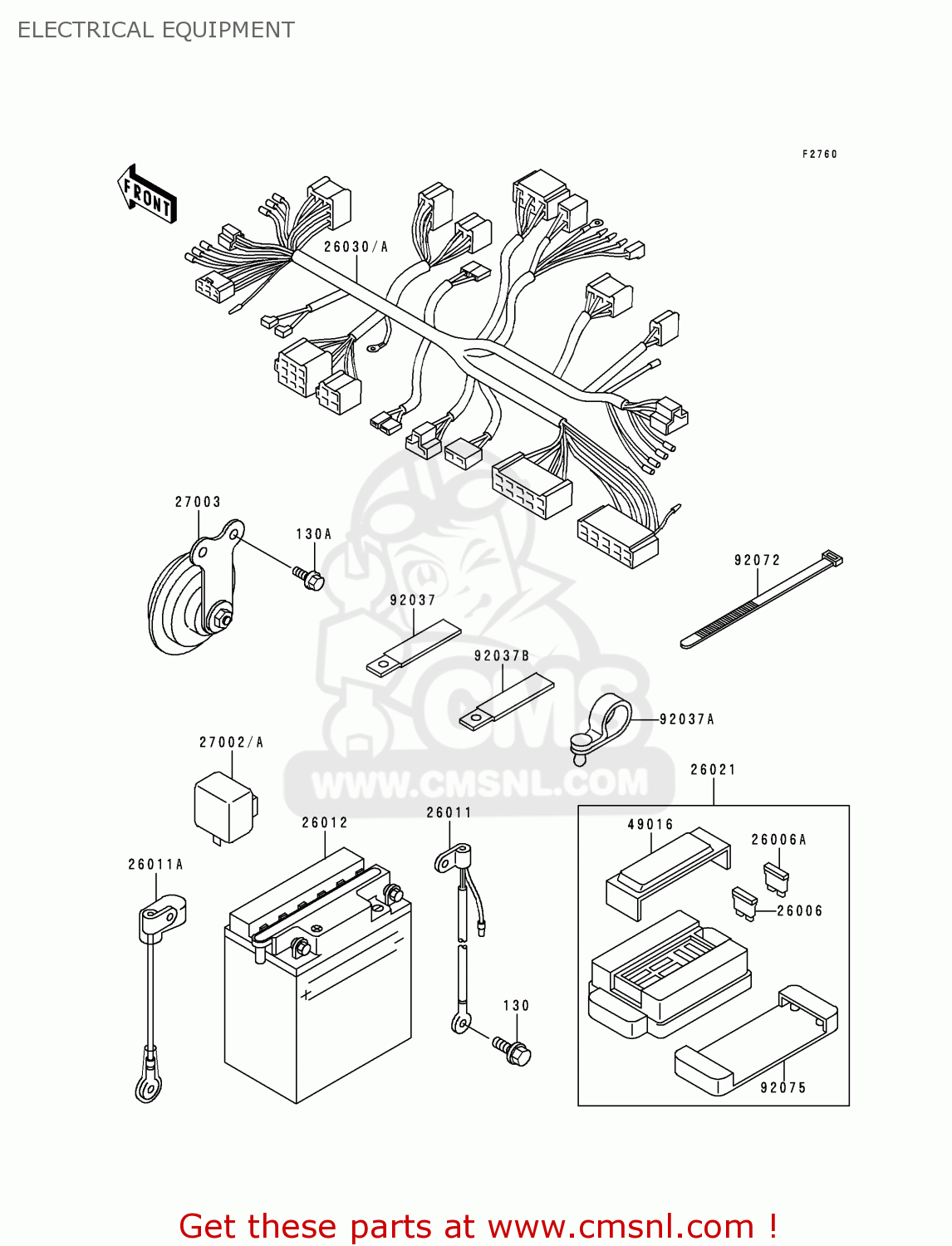

Electrical equipment diagram ZR550B2 ZEPHYR 1991 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

130A

130C0612
ref: 130A

BOLT-FLANGED,6X12

€ 1.50

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26006A

260061007
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111195
ref: 26011

WIRE-LEAD,BATTERY GRO

€ 14.50

26011A

260111255
ref: 26011A

WIRE-LEAD,BATTERY (+)

€ 20.00

26012

260121217
ref: 26012

BATTERY, 12V 12AH

€ 84.00

26021

260211079
ref: 26021

JUNCTION BOX

€ 157.00

26030

260301052
ref: 26030

HARNESS,MAIN

€ 182.50

27002A

270021060
ref: 27002A

RELAY-ASSY,TURN SIGNA

€ 65.50

27003

270031348
ref: 27003

HORN

€ 46.50

49016

490161106
ref: 49016

COVER-SEAL,FUSE

€ 8.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371290
ref: 92037A

CLAMP,CARBURETOR

€ 4.50

92037B

920371993
ref: 92037B

CLAMP

€ 3.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50
